8

SERVICE

76

ALTOSONIC V12

www.krohne.com

04/2013 - 4002643502 - MA ALTOSONIC V12 R02 en

• Install the special tool 1 with the two pins 2 in the cap 3.
• Turn the special tool counter clockwise 4 to loosen the cap from the transducer. Make sure

that the cable is not twisted.

• Pull the coax cable with the Ex-d plug out of the transducer.

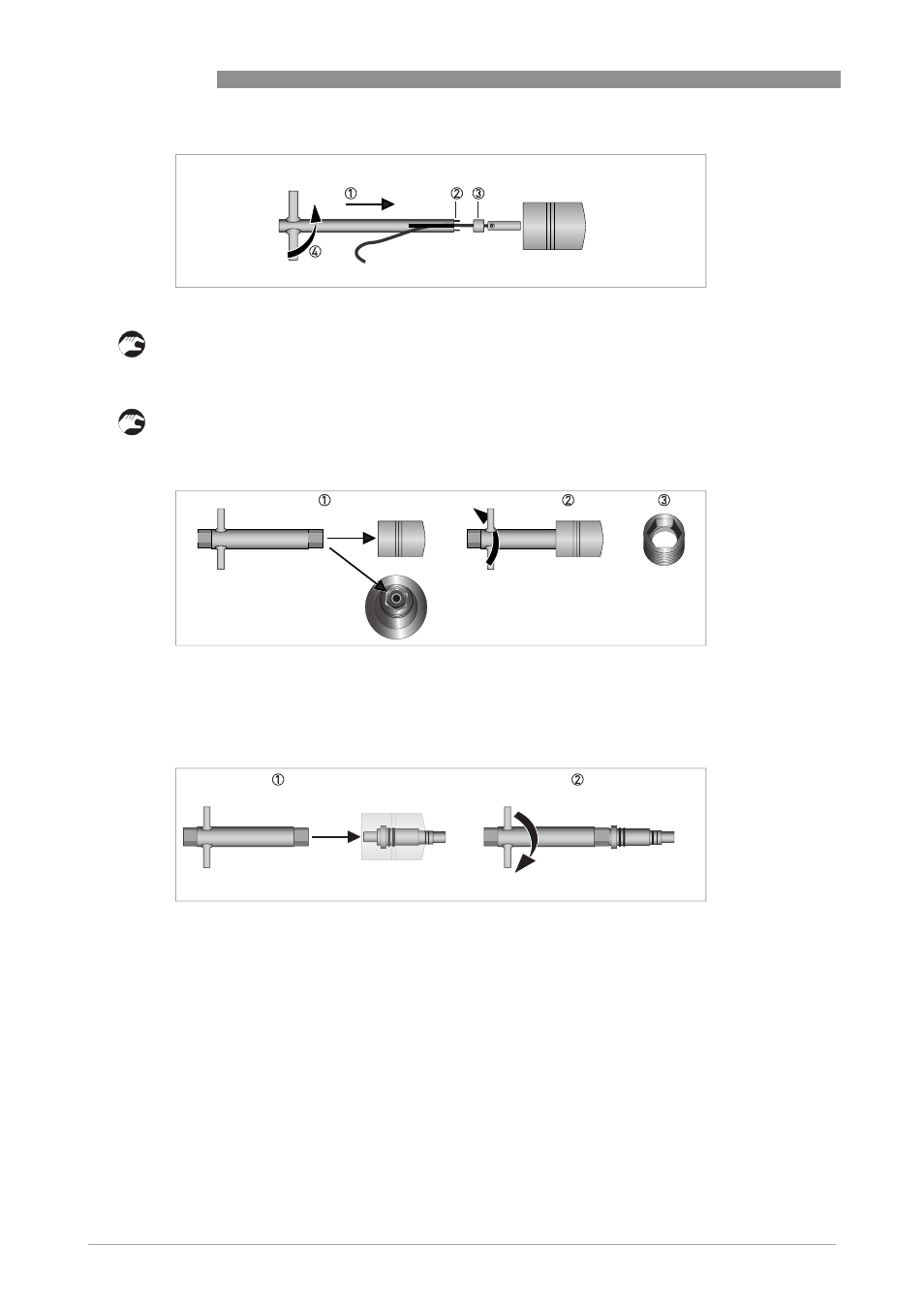

Figure 8-5: Remove cap

Figure 8-6: Removal of transducer nut

1 Insert the tool in the transducer nut
2 Turn tool counter clockwise to loosen the transducer nut
3 Transducer nut

Figure 8-7: Installing transducer in tool

1 Put the tool on the transducer.
2 Turn the tool clockwise to attach it to the transducer.
