OPERATION

6

33

ALTOSONIC V12

www.krohne.com

04/2013 - 4002643502 - MA ALTOSONIC V12 R02 en

6.1.1 Display in measuring mode with 2 or 3 measured values

Key

Measuring mode

Menu mode

Submenu or function
mode

Parameter and data
mode

>

Switch from measuring

mode to menu mode;

press key for 2.5 s

Access to displayed

menu, then 1st

submenu is displayed

Access to displayed

submenu or function

For numerical values,

move cursor

(highlighted in blue) one

position to the right

^

Reset of display

Return to measuring

mode but prompt

whether the data should

be saved

Press 1 to 3 times,

return to menu mode,

data saved

Return to submenu or

function, data saved

or

Switch between the five

screens: M1, M2, G1, S0,

Version and modbus

settings.

Select menu

Select submenu or

function

Use cursor highlighted

in blue to change

number, unit, setting

and to move the decimal

point

Esc (> + ↑)

-

-

Return to menu mode

without acceptance of

data

Return to submenu or

function without

acceptance of data

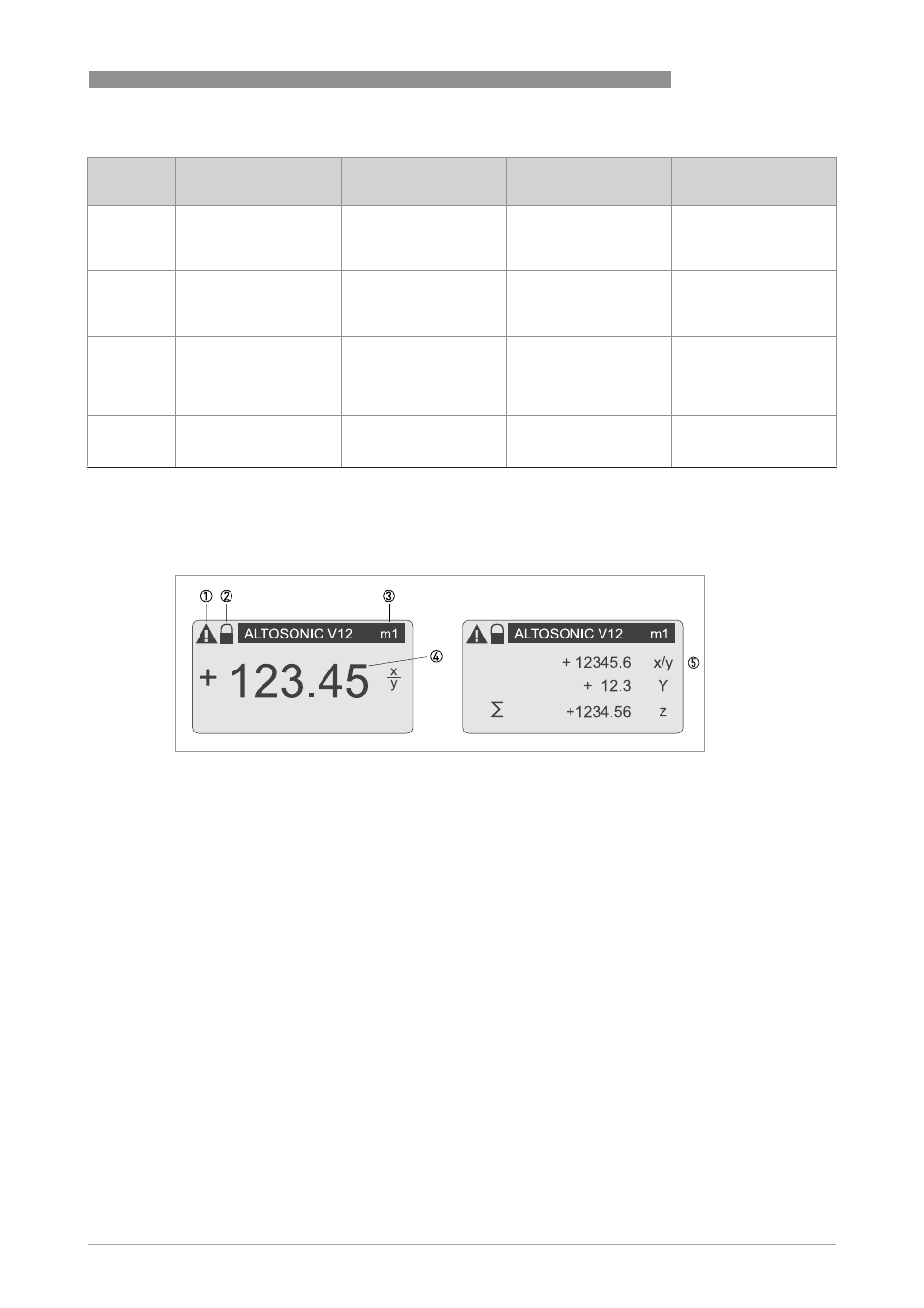

Table 6-1: Description of key functionality

Figure 6-2: Example for display in measuring mode with 2 or 3 measured values

1 Indicates a possible status message in the status list
2 Lock, indicating that programming is not possible
3 Actual screen
4 First measured variable in large depiction
5 Depiction with 3 measured values
