7
SOFTWARE SERVICE TOOL
38
ALTOSONIC V12
www.krohne.com
04/2013 - 4002643502 - MA ALTOSONIC V12 R02 en
The first field is an information field, reserved to show the communication method in operation.
Without an active communication the first and the second fields will show a dash.
When communication with a flowmeter has been established, the second field will show the
address of this flowmeter, valid for the communication method in operation.
1. Choose and click the menu pull down button Device.
A menu will open with the options Connect, Reconnect and Disconnect.
2. Click Connect (at this time the only valid option).
This will open a dialog box asking to select or confirm the communication method you intend to
use.
1. Click OK to confirm if you want to select the option as displayed or - if not -
2. Click the down button to have the other options displayed.
3. Select and click the option you need.
4. Click OK to confirm.

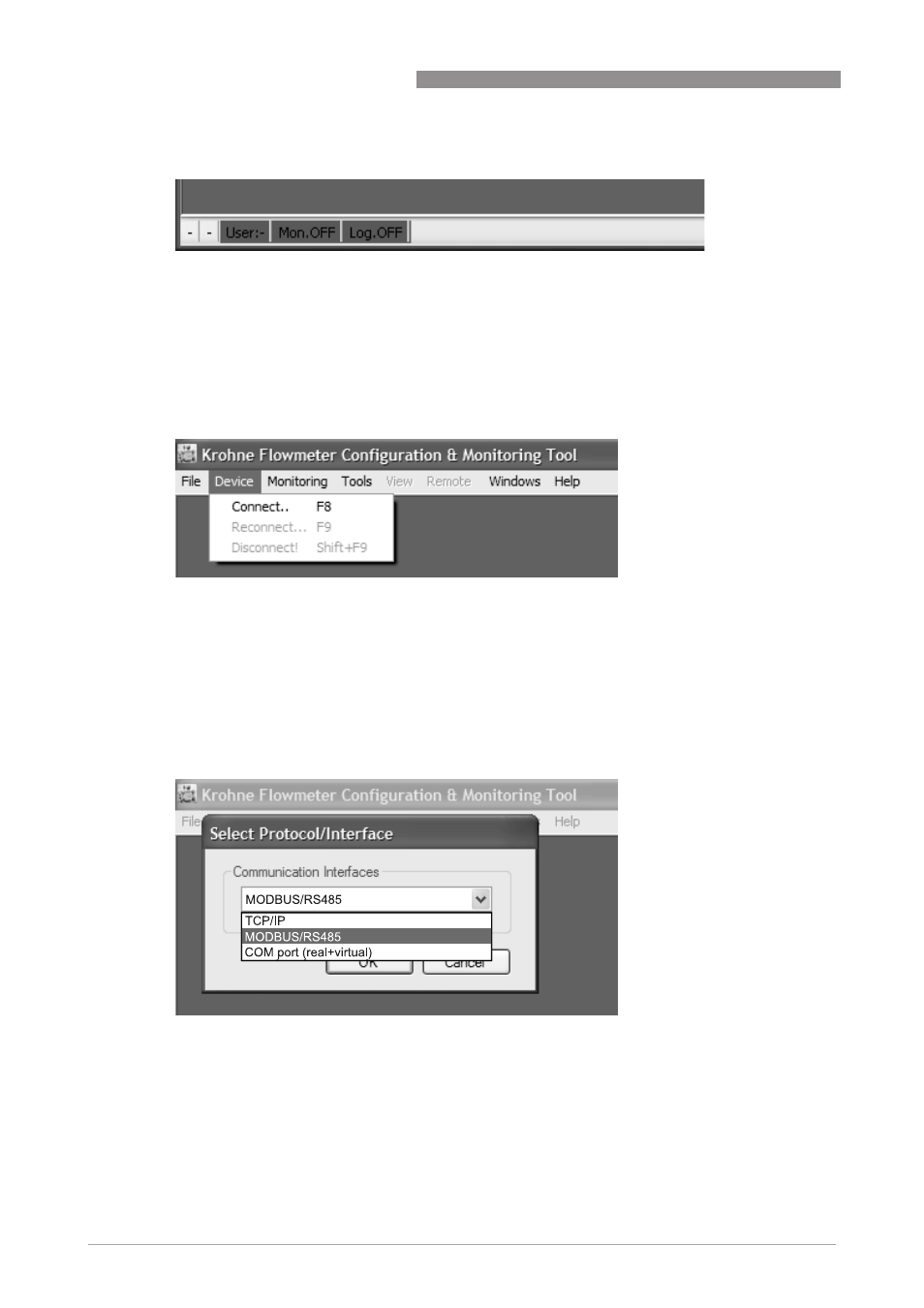

Figure 7-2: Start-up screen, lower part
Figure 7-3: Connect the device
Figure 7-4: Communication interfaces
