3.9 Viewing Manual Sampled Data Files
This section explains how to view data in manual sampled data files.
Procedure
1
On the File menu, click Open. Or, click Open on the toolbar.
2
Select a manual sampled data file.

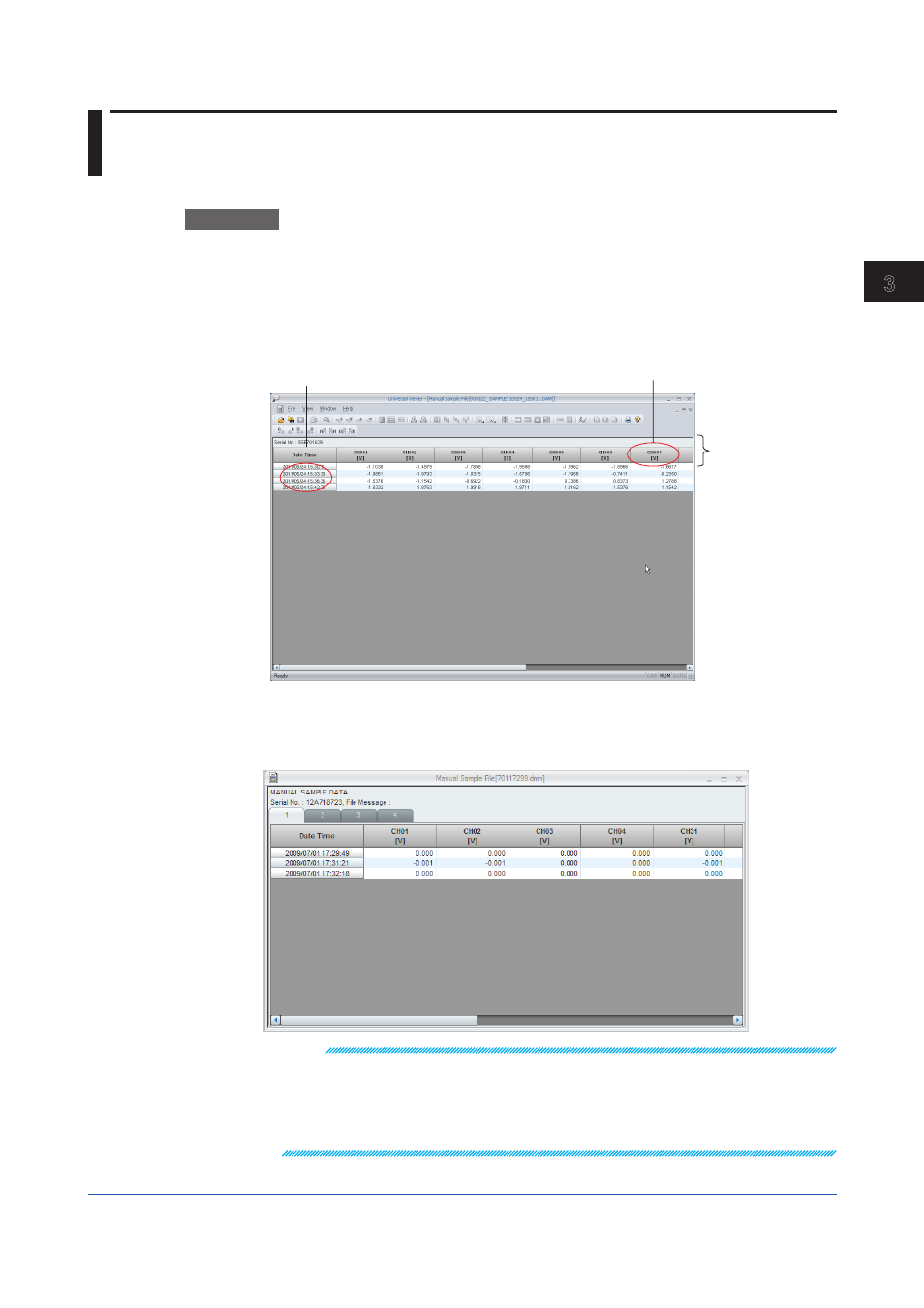

When you open the file, the corresponding data will appear. The figure below shows the window
for files with .GMN and .DAM extensions.
Name and unit of the sampling channel
Use the View menu to select channel, tag No.,
or tag comment.
Values at
each timestamp
Date and time that the manual sample was taken.
View—Date Format to select the format.
Manual Sampled Data Files with the .dmn Extension
In a display window showing the contents of a CX1000, CX2000, DX100, DX200, DX200C,
MV100, or MV200 manual sampled data file (.dmn extension), if the file contains data
samples that were sampled under different conditions, they are displayed in separate tabs.
Note
• The strings displayed for channels cannot be changed.
• If any of the conditions below apply, another tabbed page will be added.
Each time the measurement mode of a measurement channel is changed between SKIP and
another mode
Each time a measurement channel is switched between on and off
Each time a channel unit is changed
