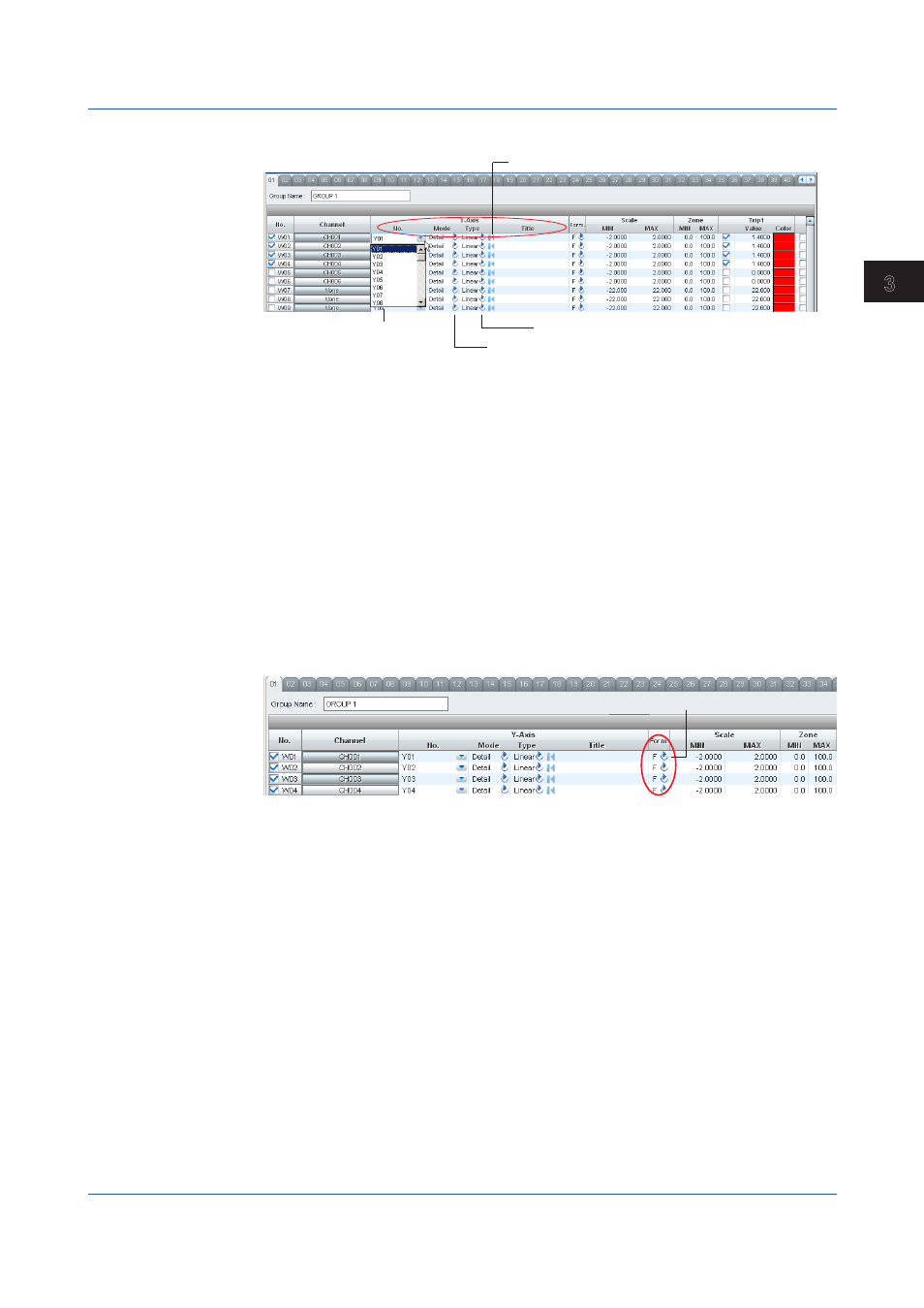

Specifying the Y-Axis (No., display mode, type, and title)
Select the Y-axis number
from the list.
Click to select Detail or Compact.
Click to select Linear or Log.
Click to enter the title string.
• No.
You can specify the Y-axis to share between waveforms.
If a Y-axis was shared among multiple waveforms, consistency in their reference will be
checked.
For example, if waveform A is using the Y-axis of waveform B, and waveform B uses the
Y-axis of C, waveform A is changed automatically to use the Y-axis of C.
• Mode
Set the Y-axis display to Detail or Compact. In Compact mode, scale values are not
displayed.
• Type
Set the type of scale to assign to the Y-axis to Linear or Log.
• Title
Enter a title of your choosing. Up to 30 characters can be displayed. If you do not specify
the title, the channel number, tag number, or tag comment assigned to the waveform is
used as its default title.
Specifying the Value Display Format
Click here.
Click the appropriate icon in the Form. column to select F (normal) or E (exponential).
The scale and trip values in the same line will be displayed in the specified format.
In exponential display, the grid line spacing value is invalid.
When you click the OK button, the values displayed in the window (Y-axis scale, cursor
value, and trip value) will be changed to the specified display format.
Specifying the Display Range (Scale)
Click the scale value display area to enter values.
The input range and decimal place are as follows.
• Minimum and maximum values
When the Y-axis scale is linear: -1E16 to 1E16.
When the Y-axis scale is log: 1E-16 to 1E16.
• Decimal place of values
When the Y-axis value display is F (normal): Decimal place that was used when the data
was sampled
When the Y-axis value display is E (exponential): Fixed to 4 digits
