2.3.2 Linking Files from a Dialog Box
You can link data files using the File Configuration dialog box.
You can link previous and subsequent data files while looking at the status of the displayed
data file.
Procedure
1
Open the first file that you want to link.
From the Window menu, click File Configuration.
The File Configuration dialog box appears.
Link icons are displayed next to the files that comprise the data file that is currently displayed.
Click Make.

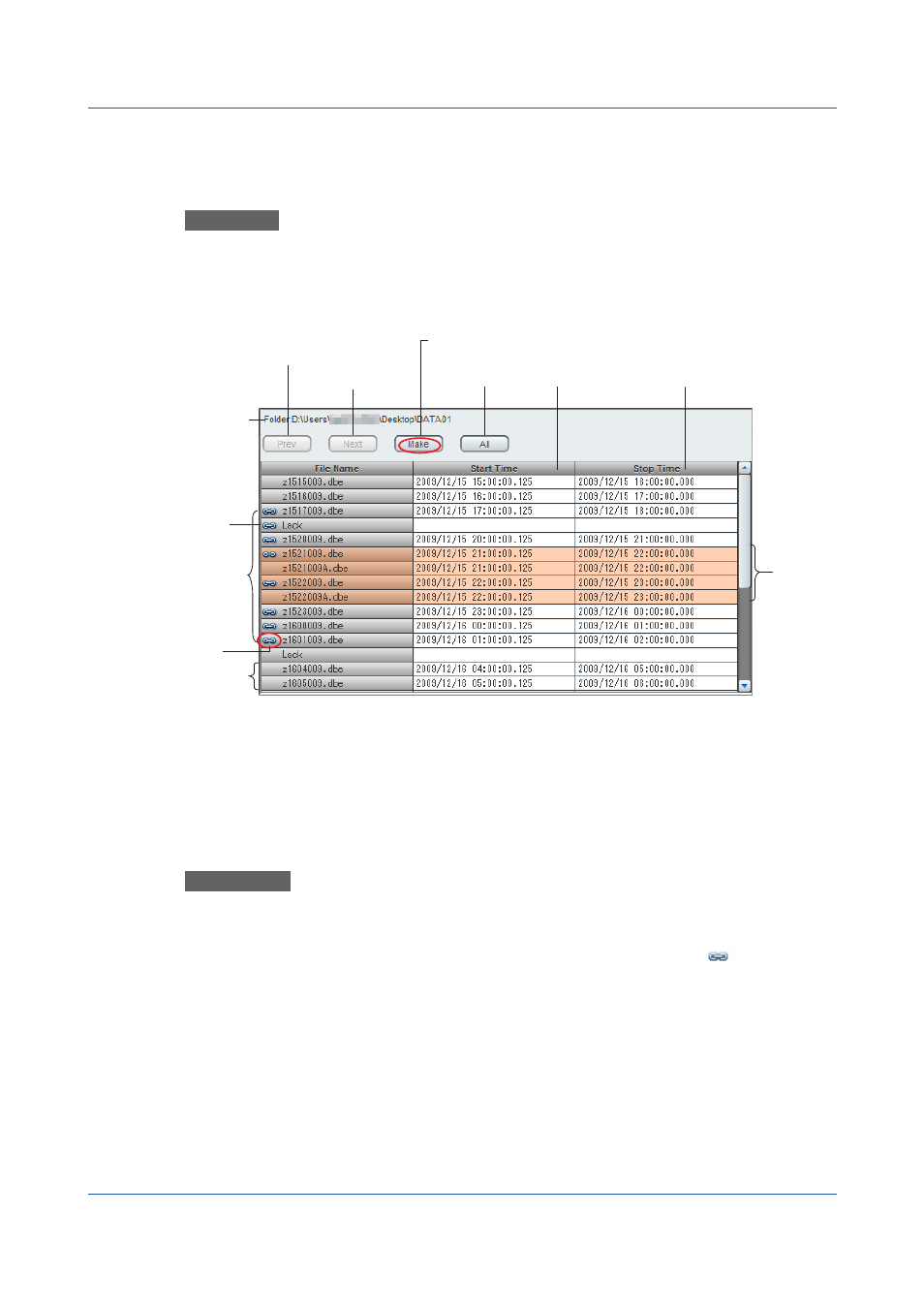

Displays components and link candidates
Link icon
Data file components
currently displayed
Duplicate
data files
(orange)
Timestamp of
the first data entry
Lack
Missing file
Link candidate files
Timestamp of
the last data entry
Prev
Link the previous file.
Next
Link the next file.
All
Link all files.
Save destination folder
2.
Click Make.
The link candidate files is displayed.
3
Click Prev, Next, or All to link the appropriate files.
Prev: Links the previous file
Next: Links the next file
All: Links all files
The relevant files will be linked together.
Explanation
The File Configuration dialog box shows the folder containing active data files and the
information of those files.
File Configuration
The background of the names of active data files is gray, and link icons are shown next
to the names.
Duplicate Data Files
You can identify duplicate data files in the same folder (files with different names that contain
the same data).
The background of the names of duplicate data files is orange.
