2-6
IM 04L61B01-01EN

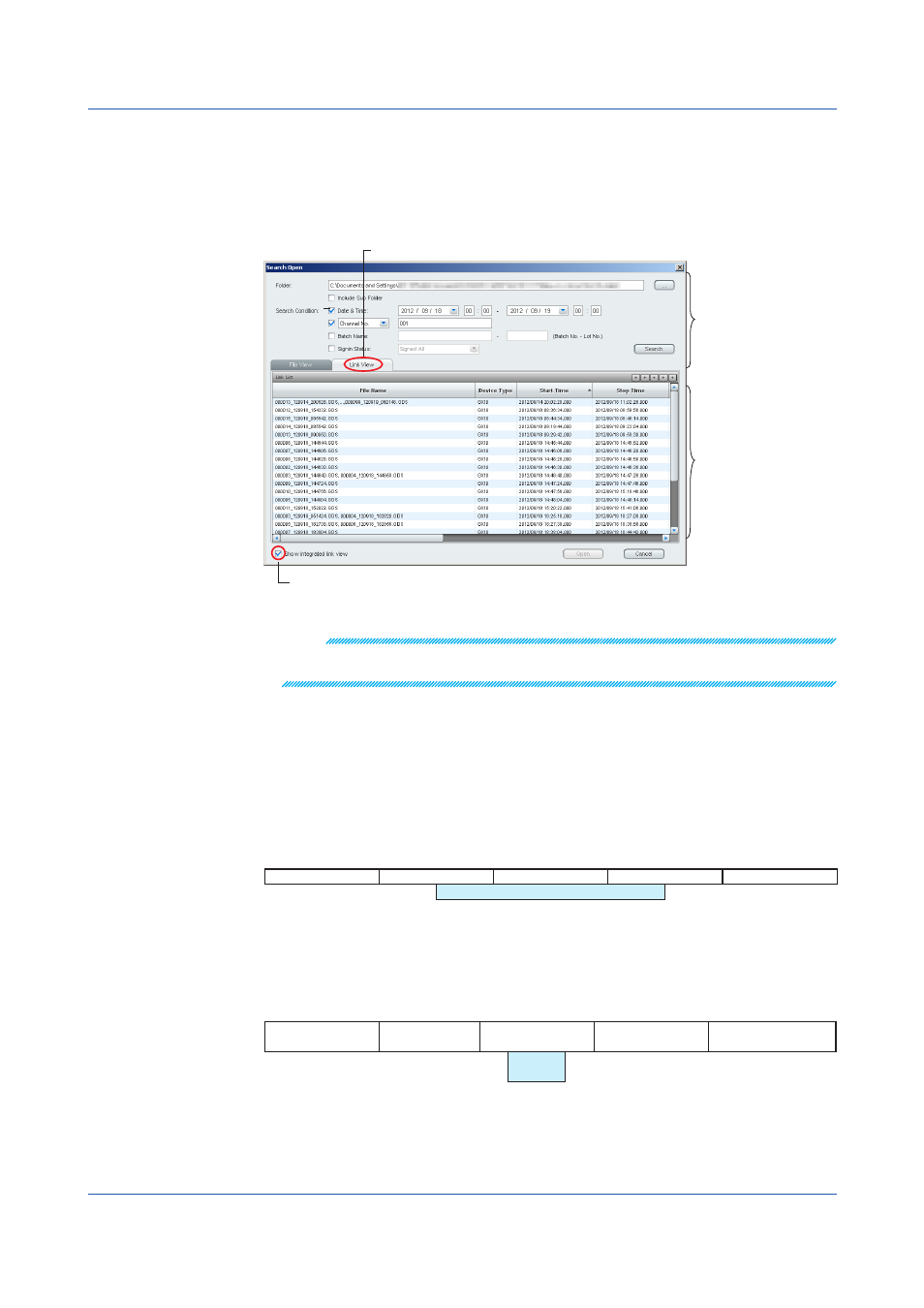

File View and Link View Tabbed Pages
The File View tabbed page shows search results at the file level.
The Link View tabbed page shows search results by linking files that can be linked among
the files in the File View tabbed page.
If you select the Show integrated link view check box on the Link View tabbed page,
searching is performed on the linked files, and results are displayed.
Link View Tab
Search result
display area
Show integrated link view check box
Search condition
setting area
Selected: Files are linked first, then search conditions are applied, and the result is displayed.
Unselected: Files are searched separately, and then results are linked and displayed.
Note
If a time change occurs in a data file, it may not appear in the search results. For details, see
Example 4. If the time was changed in the middle of recording .
Search by Time Period
You can specify a search period to perform the search.
You can specify dates by clicking the arrow and using the calendar that appears or selecting
and entering the numbers directly.
The selectable range is from “1990/01/01 00:00” to “2037/12/31 23:59.”
When you specify a period, if any section of a file overlaps with the search period, the file
appears in the search results. Below are several examples for different search periods.
Example 1. When consecutive data files A to E all exist
File A File B File C File D File E
Search period
Files B, C, and D will appear on the file view tabbed page.
If the files are linked, files A to E are detected as a single unit and displayed on the link view
tabbed page.
Example 2. When a portion of the linked files does not exist and the search period is
within that portion
File A File B
File C
Missing
File D File E
Search
period
No files are displayed on the file view tabbed page.
If the data files are linked, no file links are displayed on the link view tabbed page.
However, in the case of a batch file, files A to E are detected as a single unit and displayed
on the link view tabbed page.
2.2 Opening a Data File
