3-28
IM 04L61B01-01EN
3.3 Displaying Digital Values
You can display data sampled on different channels of a recorder in a spreadsheet, with
data entries arranged by their timestamps.

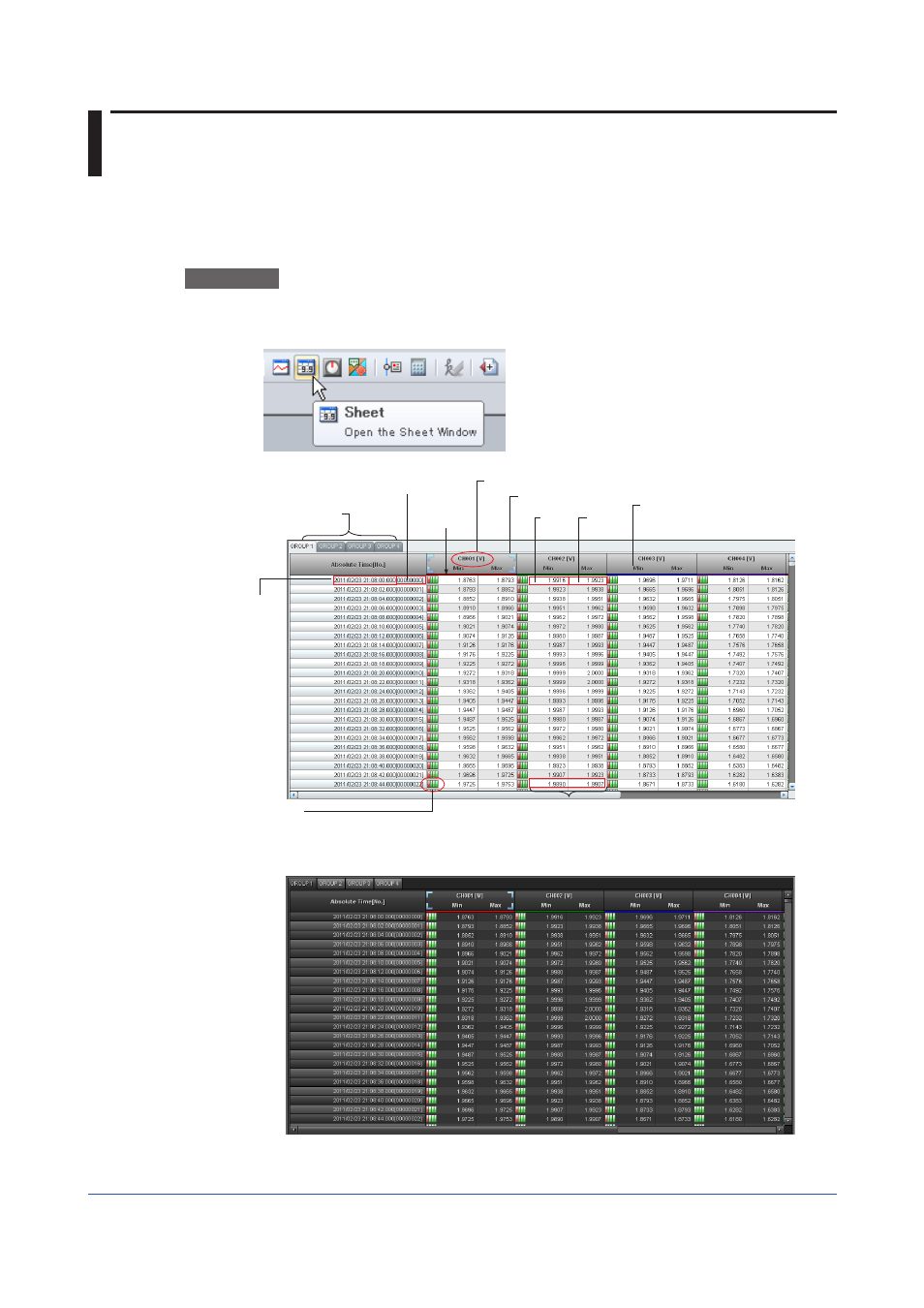

3.3.1 Digital Display Window
Procedure
1
To open the digital display window, on the Window menu, click Sheet. Or, click the
Sheet button on the toolbar.
Digital values will appear.
Digital display example (light style)
Active waveform mark
Absolute or
relative time
Alarm display
Red indicates alarm occurrence.
(displays the conditions of
alarms 1, 2, 3, and 4 from the left)
Waveform label (select from channel No., tag, and tag No.)
Min.
value
Max.
value
Waveform
color
Data number
Tabbed page
(Select the tab of
the group to display.)
Only instantaneous values are displayed for an event data file.
Click here to make
the selected waveform active.
Digital display example (dark style)
