3-3
IM 04L61B01-01EN
Displaying and Converting Data
1
2
3
4
5
6
7
8
9
10
11
12
App
Index
2

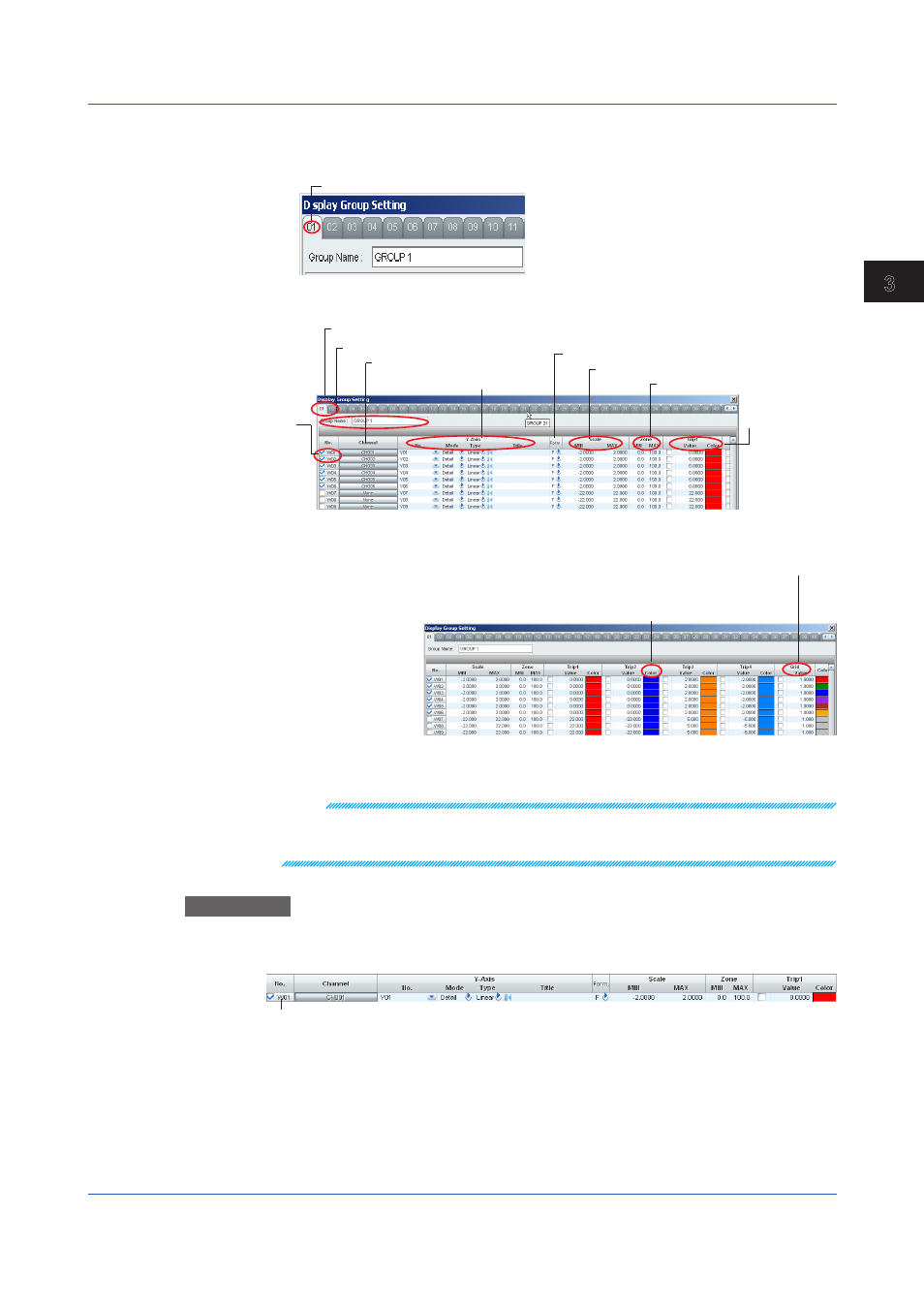

Click the tab of the group you want to configure.
Group tab number
3
Edit the setup data as necessary. (For details on each setting, see the explanation.)
Group tab number
Specify the group name.
Waveform No.
Select to show.
Click a waveform
number to select
the waveform.
Specify the Y-axis.
Select normal or exponential display.
Enter the display ranges.
Register channels.
Enter the display positions.
Trip line 1
Select to
show.
Enter values.
Select the
color.
Specify the Y-axis grid line spacing.
Leave unselected to use the default grid line spacing.
To specify the grid line spacing, select the check box
and enter a value.
You can also click to change the color.
4
Click OK at the bottom of the dialog box to apply the settings to the display.
Note
The setup data that first appears in the dialog box are those that were used on the recorder when
the data was sampled. If you want to apply the setup data that you edited the next time you open
the data file, be sure to save the setup when you close the file.
Explanation
The Display Group Setting dialog box consists of multiple tabbed pages.
The spreadsheet on each tabbed page shows the settings of each waveform in rows and the
setup items in columns.
Waveform number
In this dialog box, you can edit the setup data in the following ways.
• Set each setup item individually.
• Specify a range of items and set them at once
• Copy setup data between waveforms
To set multiple items at once or to copy setup data, you must use the action bar of the dialog
box. For these procedures, see the later half of this section.
3.1 Displaying Waveforms
