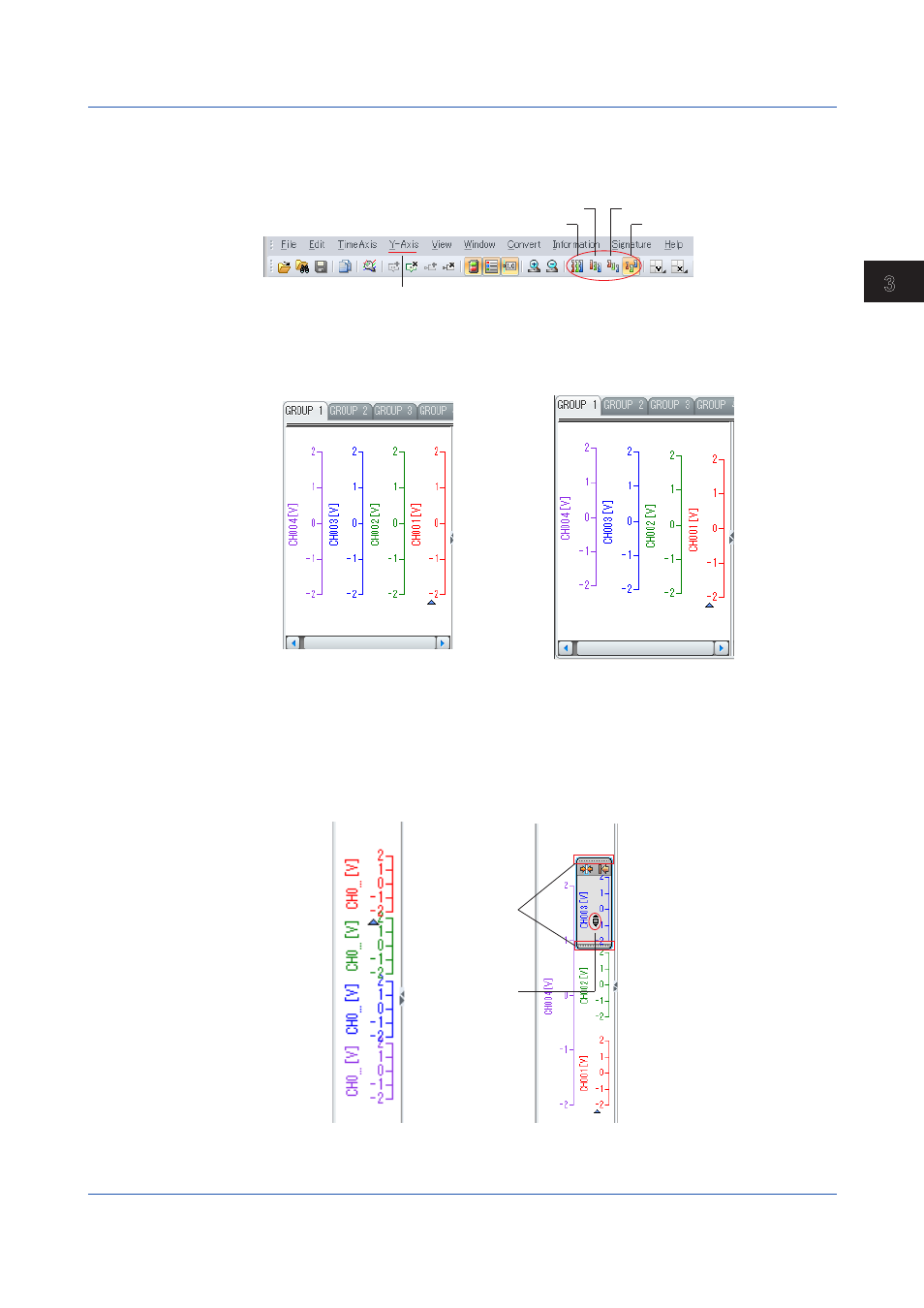

3.1.5 Setting the Y-Axis
Switching Waveform Display Zones
Use the Y-Axis menu, or click the corresponding buttons on the toolbar.
Full zone
Slide zone Auto zone
Free zone
Click here to select.
• Full Zone: Displays all waveforms over a full zone
• Slide Zone: Displays each waveform cascaded from the top to the bottom of the
waveform display area
Full zone Slide zone
• Auto Zone: Divides the waveform display area into equally spaced zones in accordance
with the number of displayed waveforms and displays the waveforms
• Free Zone: Displays waveforms in user-specified zones
You can change the size of zones in Free Zone mode by manually adjusting the Y-axis in
the window.
Drag a zone edit area (the top or bottom boundary of a zone) to expand or reduce its
Y-axis. Place the cursor over a zone so that its shape changes and drag to move the
Y-axis to the desired position. You can move Y-axes only in Free Zone mode.
Auto zone Free zone
Drag a zone edit
area vertically to
expand or reduce.
In this condition,
you can drag to
move the Y-axis.
