3-12
IM 04L61B01-01EN

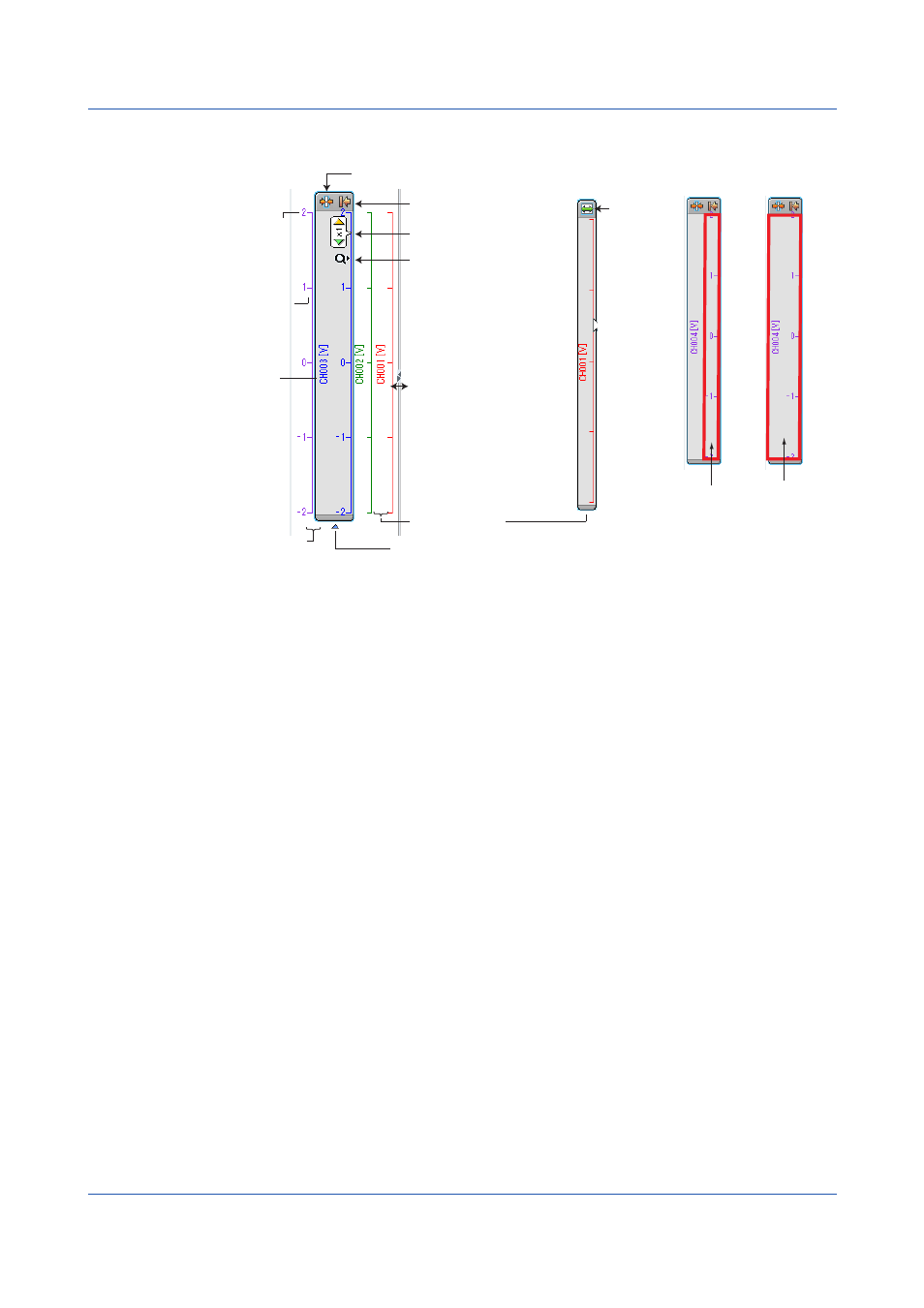

When you move the cursor into the Y-axis area, the Y-axis becomes editable, as shown in
the figure below.
Click to
change to
Detail mode.
Scale line
Scale value
Active waveform icon
Title
Use the
View menu
to switch.
Click to switch to Compact mode.
Detail mode
Scale
expand/reduce button
Vertical splitter
Expand or reduce
the Y-axis area
Reset scale values.
In this condition, turn
the mouse wheel to
move the scale values
vertically.
Compact mode
Y-axis
scale value
change area
Y-axis
scale
movement
area
Compact Mode and Detail Mode
There are two Y-axis styles: compact mode and detail mode. You can switch between the
two by clicking the icon at the top of the Y-axis area. In compact mode, scale values are
hidden, narrowing the width of the Y-axis.
Expanding and Reducing a Y-Axis Scale
When you move the cursor into the scale value edit area, the cursor changes as shown in
the figure.
Clicking in this condition shows a scale expand/reduce button.
Click an arrow or spin the mouse wheel to expand or reduce the scale.
Scrolling a Y-axis Scale
When you move the cursor into the scale edit area, the cursor changes as shown in the
figure.
Spinning the mouse wheel in this condition causes the Y-axis scale to scroll, maintaining the
difference between the upper and lower limits of the scale.
The scale values will take on the values at the new position.
Changing the Active Y-Axis
In the Y-axis area, click a Y-axis to activate it.
The active waveform icon moves below the new active Y-axis.
When a Y-axis is shared among multiple waveforms, the waveform with the smallest number
in the display group will become the active waveform.
Switching Y-Axis Titles
On the View menu, click Channel, Tag No., or Tag Comment to change the type of
character string used for Y-axis titles.
3.1 Displaying Waveforms
