3.4.3 Mark To Tabbed Page

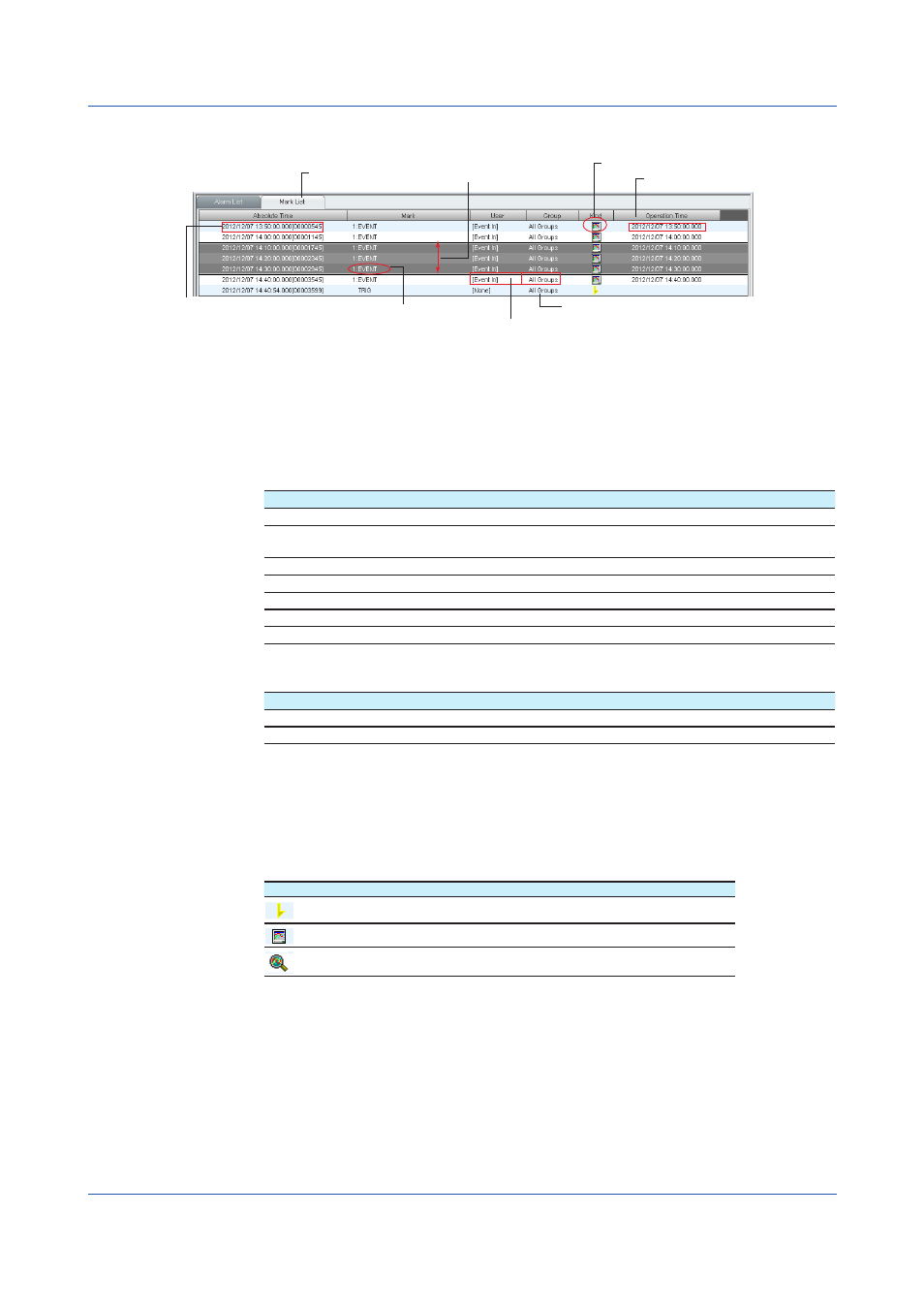

Mark To tabbed page
Click to switch the page.
Name of the user that added the mark
Timestamp of the data entry
that the mark was added to
Mark type
Mark string that
was added
Display group where the mark was added
Time when the mark was added Cursor
The Mark To tabbed page lists mark information (marks added during recording and marks
added on Universal Viewer) in the data file. The displayed items are described below.
Mark
If the mark string is too long and does not fit in the display area, the overflowing characters
are replaced with an ellipsis.
User
Display Description
Key In Key input by a user or when key login is disabled
Username Key input by a user or when key login is enabled
The name of the user who made the key input appears.
Remote In Input by remote input
Comm. In Input using a communication command
Event In Input by event input
None Input by a trigger or on Universal Viewer
Unknown Input other than above
Group
Display Description
All Groups Mark that applies to all groups
Group a, Group b, Group c, etc. Displays the applicable group number*
* When the applicable group is one group: Group a
When the applicable groups are multiple groups: Group a, Group b, Group c
• a, b, c: Group numbers The number of digits is not fixed. The numbers are shown in ascending
order.
• If the group string is too long and does not fit in the display area, the overflowing characters are
replaced with an ellipsis.
Type
Display Description
Trigger position
Message created on the recorder and saved in the data file
Mark added on Universal Viewer
