3.4 Displaying a List of Alarms and Marks
When a display data file or event data file is open, you can view information related to
alarms, marks, events, control operations, and operation log entries in list form.
To convert and save this information, see section “3.10 Converting Data”.
3.4.1 List display window
Procedure
1

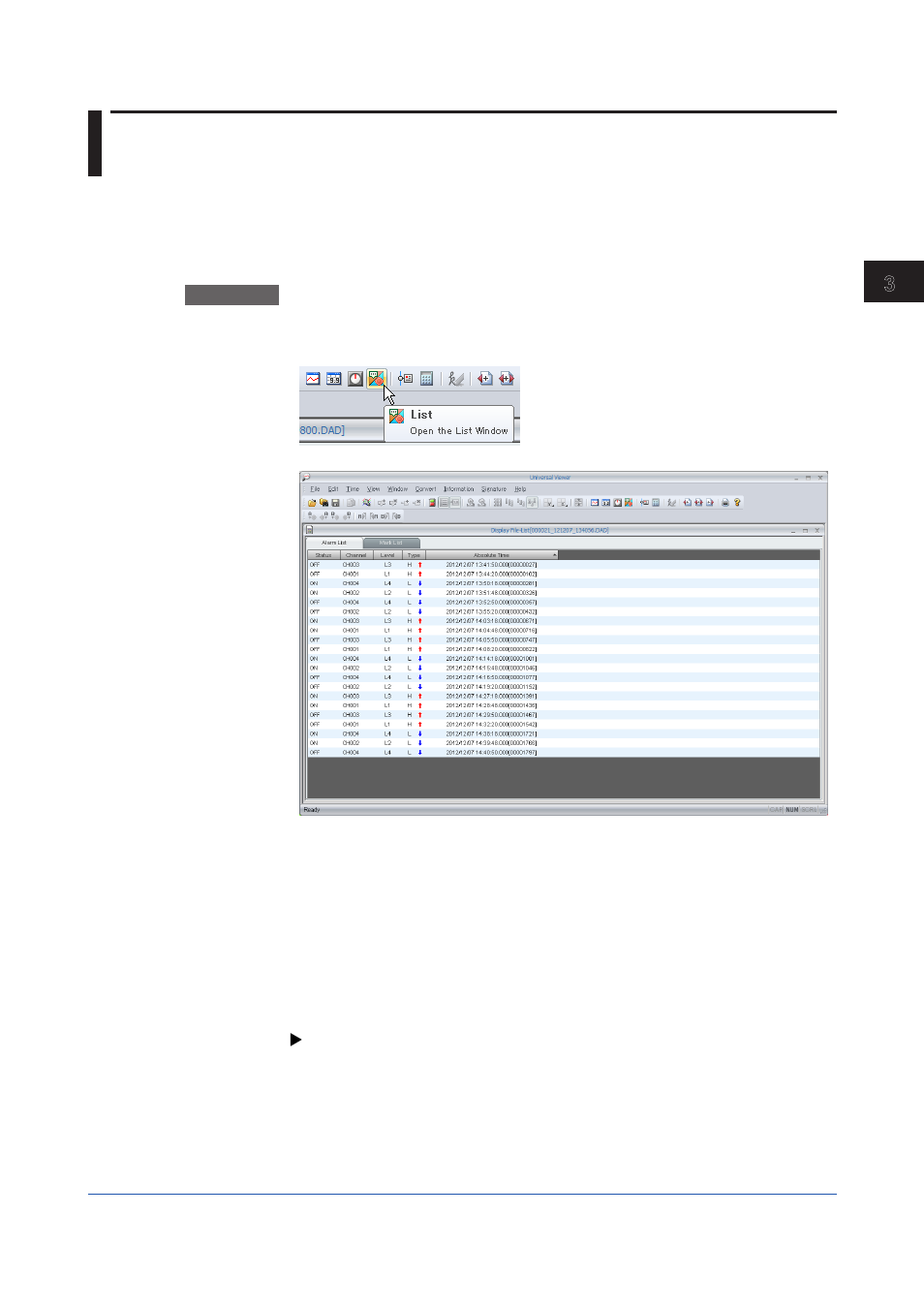

To open the list display window, on the Window menu, click Alarm/Mark. Or, click the
Alarm Mark button on the toolbar.
Alarm information will be displayed.
The alarm/mark display window consists of the following five tabbed pages.
• Alarm To tabbed page
• Mark To tabbed page
• Event To tabbed page
• Ctrl Mode To tabbed page
• Operation Log tabbed page
The Alarm To and Mark To tabbed pages are always displayed, but whether the other three
tabbed pages are displayed depends on the model and feature of the recorder that sampled
the data.
For details on the Event To and Ctrl Mode To tabbed pages, see section 3.5 . For details on
the Operation Log tabbed page, see section 3.6 .
Files that can be displayed and their extensions ( section 1.1.1 )
