Configure the Keypad
Now that you have arranged the keys, it is time to configure the keypad using OITware-200.
Configuring the user-defined keypad:

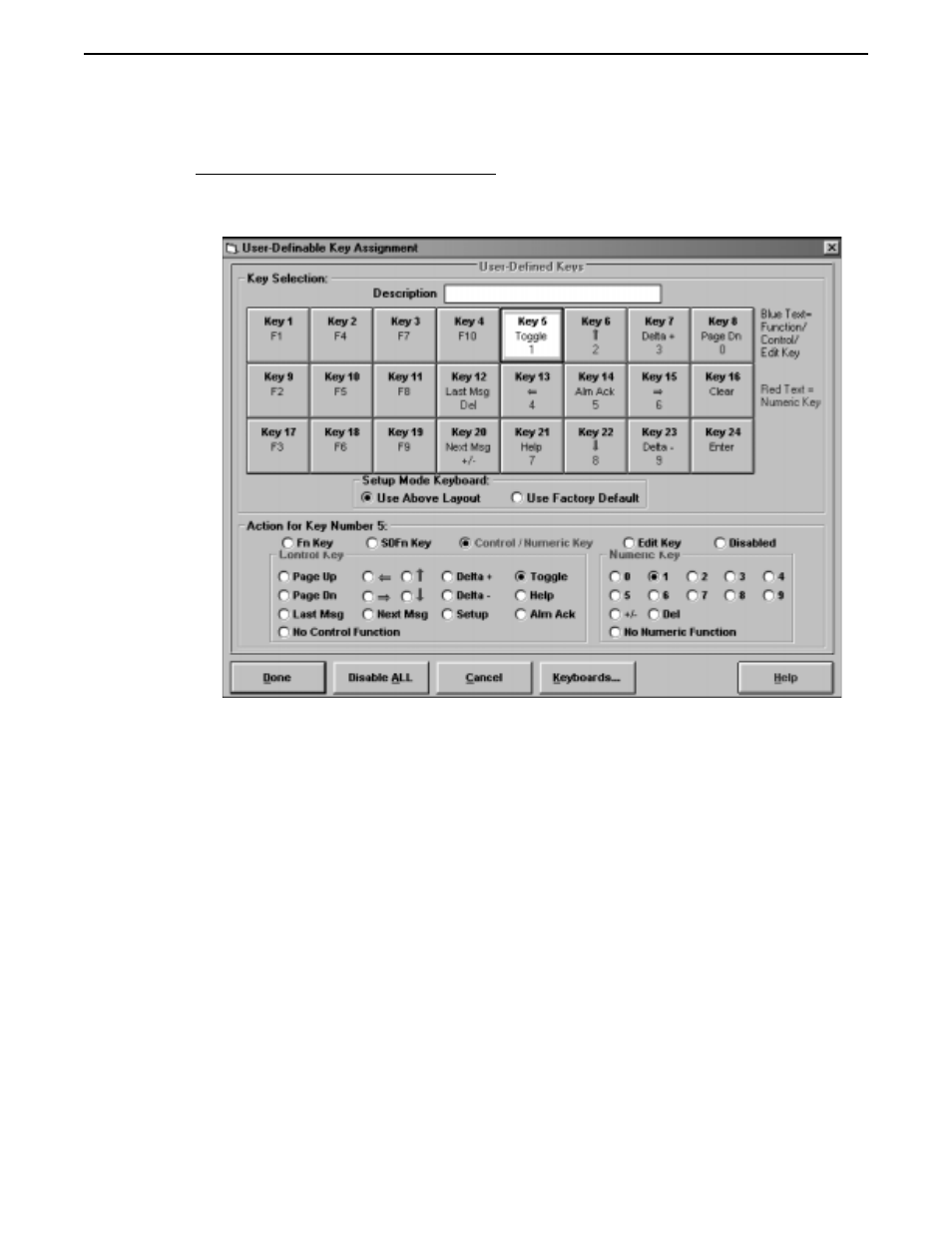

1. From the configuration menu, choose Keyboard Settings, then choose User-Defined
Key Editor. The User-Definable Key Assignment dialog box appears.
2. Unless your keypad arrangement is similar to the default keypad, choose the Disable
ALL button to clear the default keypad.
3. In the Key Selection group box, choose the key to configure.
4. In the Action for Key Number group box, select the option button that corresponds to
the key type for the key being configured.
5. If configuring a global function key, in the Fn Key scroll box, select the global
function key number for this key. Must be from 1 to 16.
6. If configuring a screen dependent function key, in the SDFn Key scroll box, select the
screen dependent function key number for this key. Must be from 1 to 8.
7. If configuring a control, numeric, or control/numeric key:
• In the Control Key group box, select the option button that corresponds to the control function
for this key.
• In the Numeric Key group box, select the option button that corresponds to the numeric func-
tion for this key.
8. If configuring an edit key, in the Edit Key group box, select the option button that
corresponds to the edit function for this key.
9. Repeat steps 3 through 8 for each key.
10. Choose the Done button to return to the OITware-200 main screen.
Configuring the User-Definable Keypad 93
