To start producing Bag A, all the OIT operator has to do is call the Bag A recipe screen,
enter the number of bags, and change the initiator to “Y”.
To create a recipe screen:
1. In the Screen Type group box, select the Recipe option button.

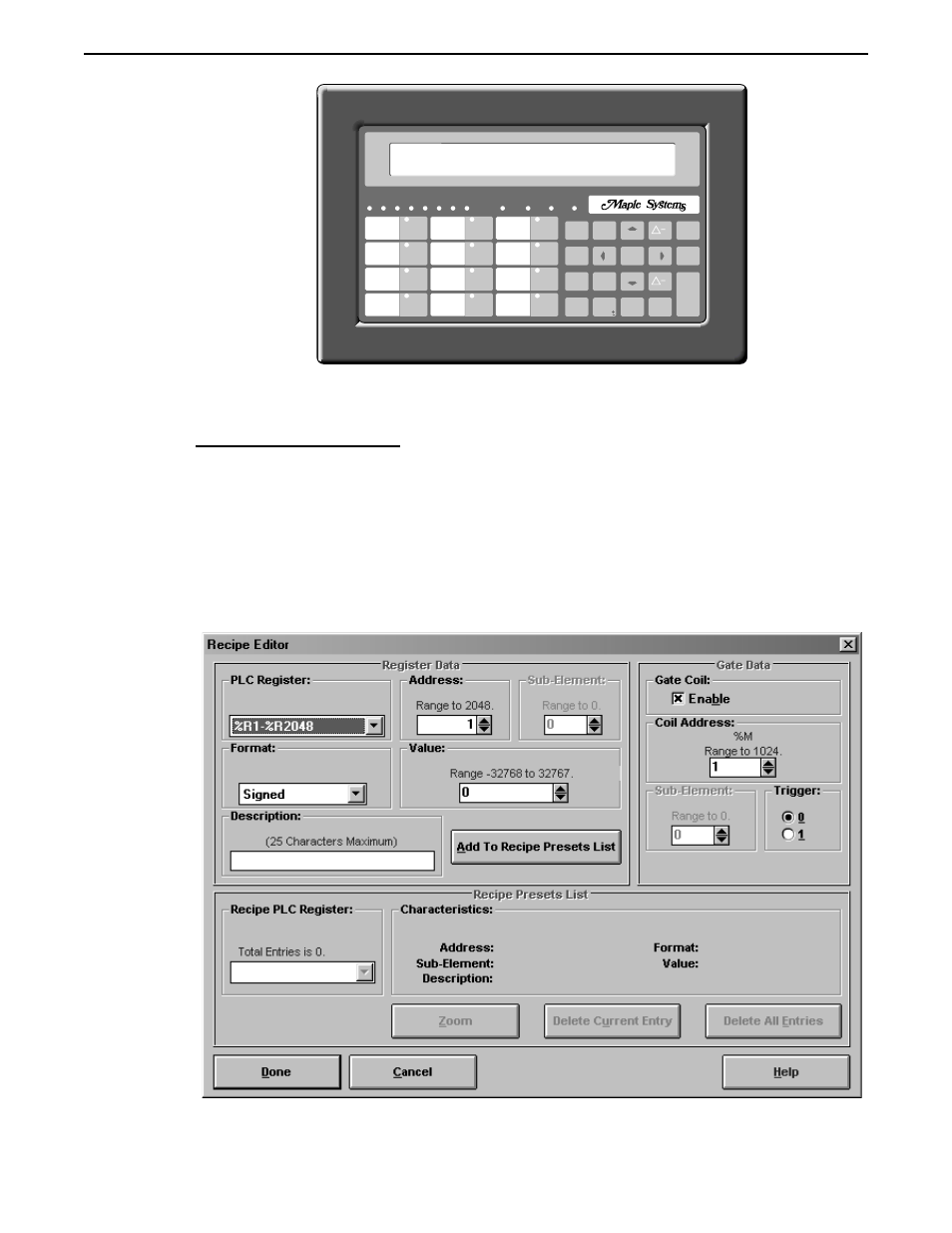

2. In the Screen Type group box, choose the Editor button. The Recipe Editor dialog box
appears. The Recipe Editor dialog box is divided into three sections, Register Data,
Gate Data, and Recipe Presets List. The Register Data group box is used to enter the
PLC address, format, value, and description of each preset ingredient. The Gate Coil
group box is used to enable the gate coil, set the PLC address of the gate coil, and
specify whether the “on” value of the gate coil is 0 or 1. The Recipe Presets List is used
to list the preset ingredients that have been entered in the Register Data group box.
