Page 32: Message screens

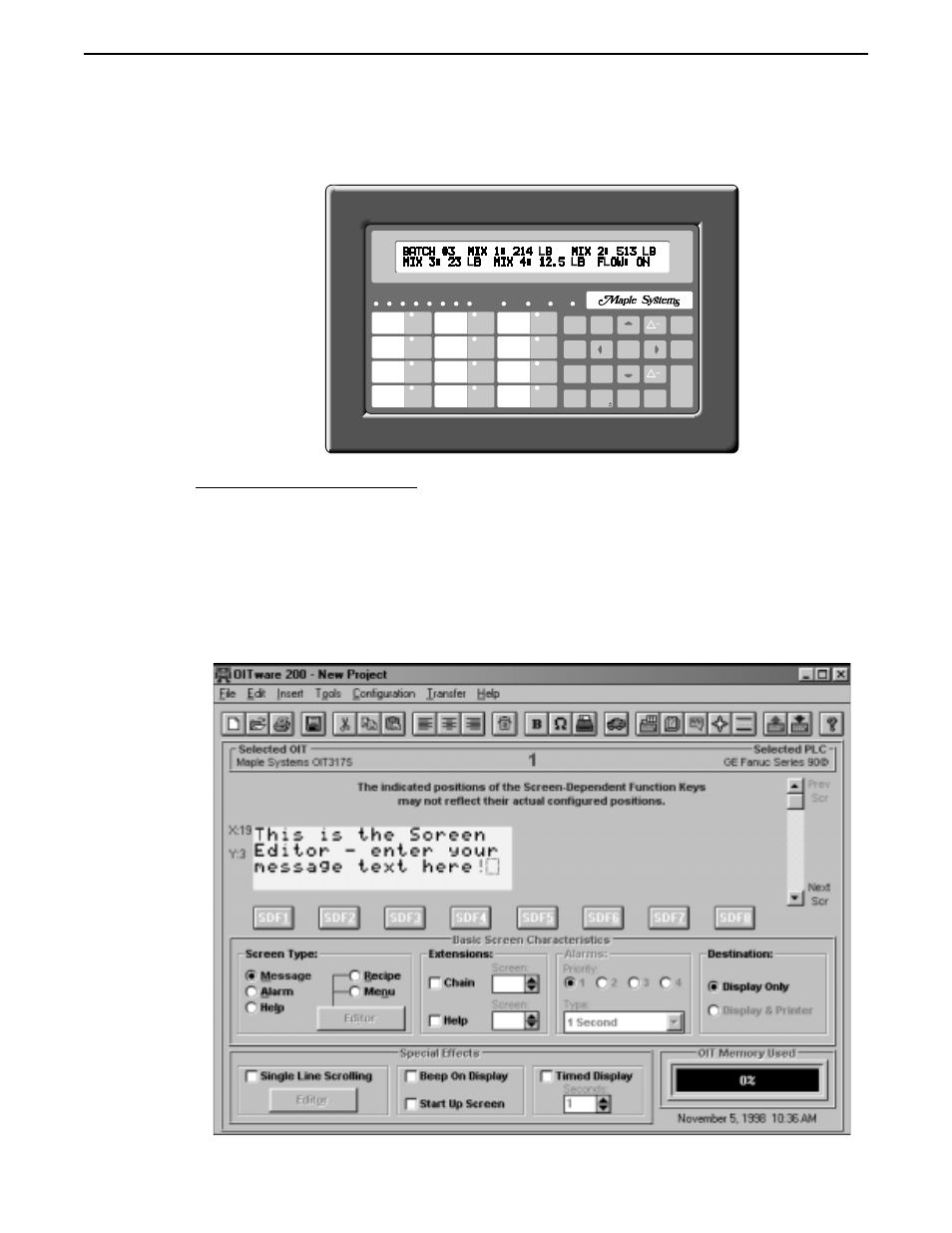

Message Screens
Message screens convey information to the OIT operator and through the use of PLC
Register Monitors allow the OIT operator to change data in the PLC.
To create a message screen:
1. In the Screen Type group box, select the Message option button.
2. In the Screen Editor, enter the text to be displayed.
3. In the Screen Editor, insert any necessary PLC Register Monitors. For more
information on embedding PLC Register Monitors, refer to CHAPTER 4: PLC
Register Monitors.
4. Configure any screen features (blinking, etc.) you want to use. For more information on
configuring the available screen features, refer to the Screen Features section in this chapter.
Stored Screens
32
1010-0099, Rev. 07
