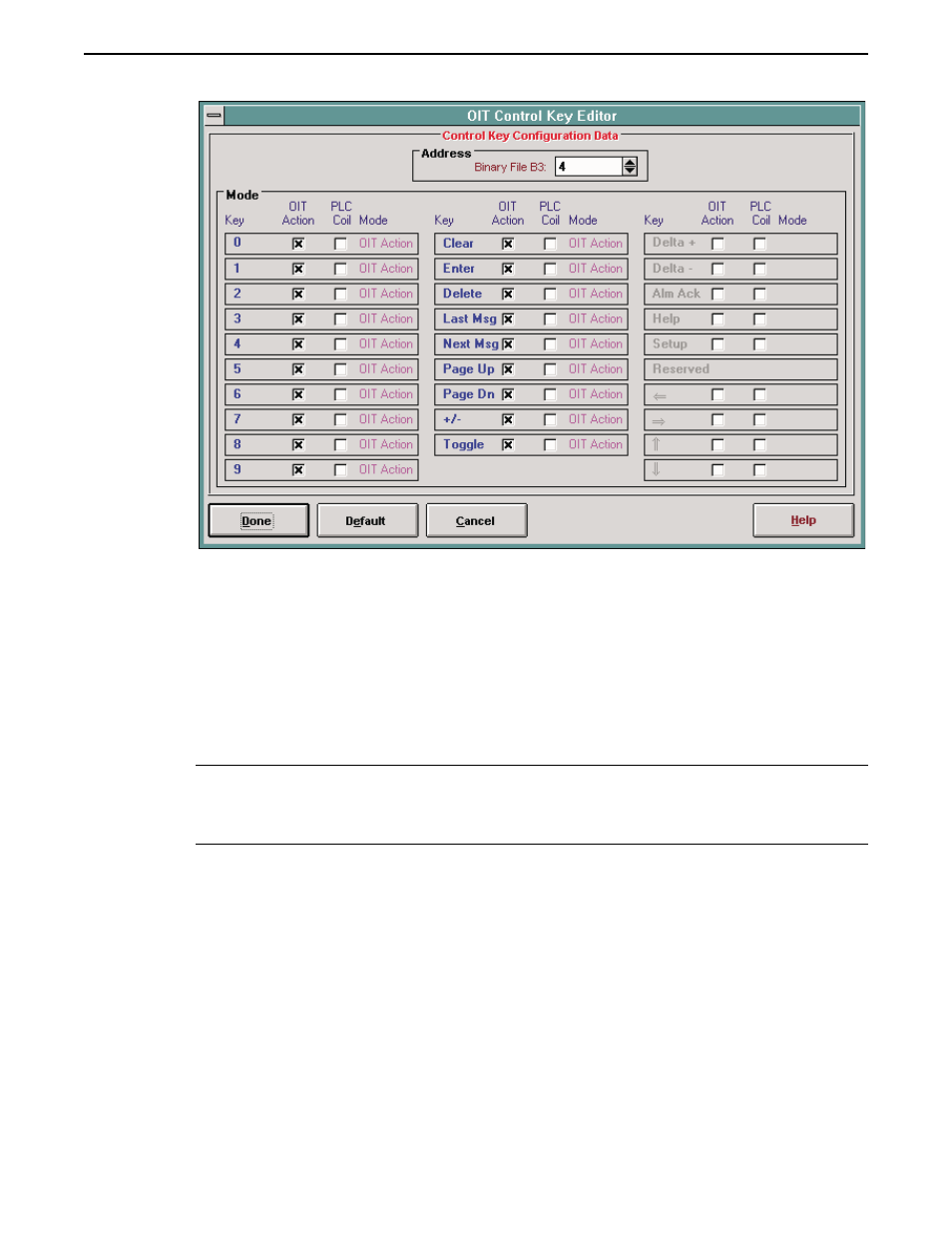

2. Each available key has two associated check boxes: OIT Action and PLC Coil. For

each key select the appropriate box(es):

to only perform normal OIT action, select only the OIT Action check box

to only set/clear a PLC coil, select only the PLC Coil check box

to perform normal OIT action and set/clear a PLC coil, select both the OIT Action and PLC

Coil check boxes

to do nothing (disable), do not select either the OIT Action or the PLC Coil check boxes.

3. If you selected any PLC Coil check boxes, in the Address scroll box, set the starting

PLC address for the key coils.

NOTE:This address represents the first bit in the Bit Memory area of the PLC to use for the

control, edit and numeric key coils. Every available control, edit and numeric key is

assigned a coil; even if the associated PLC Coil check box for the key was not selected.

The first bit represents the 0 key, the second bit the 1 key, etc.

Key Types
