1. Press the PC’s Page Down key to advance to the screen editor for screen #2.
2. In the Basic Screen Characteristics group box, select
• Screen Type — Message
• Extensions — none
• Alarms — n/a
• Destination — Display Only.
3. In the Special Effects group box, none of the check boxes should be selected.
4. In the Screen Editor, type Complete Qty:.

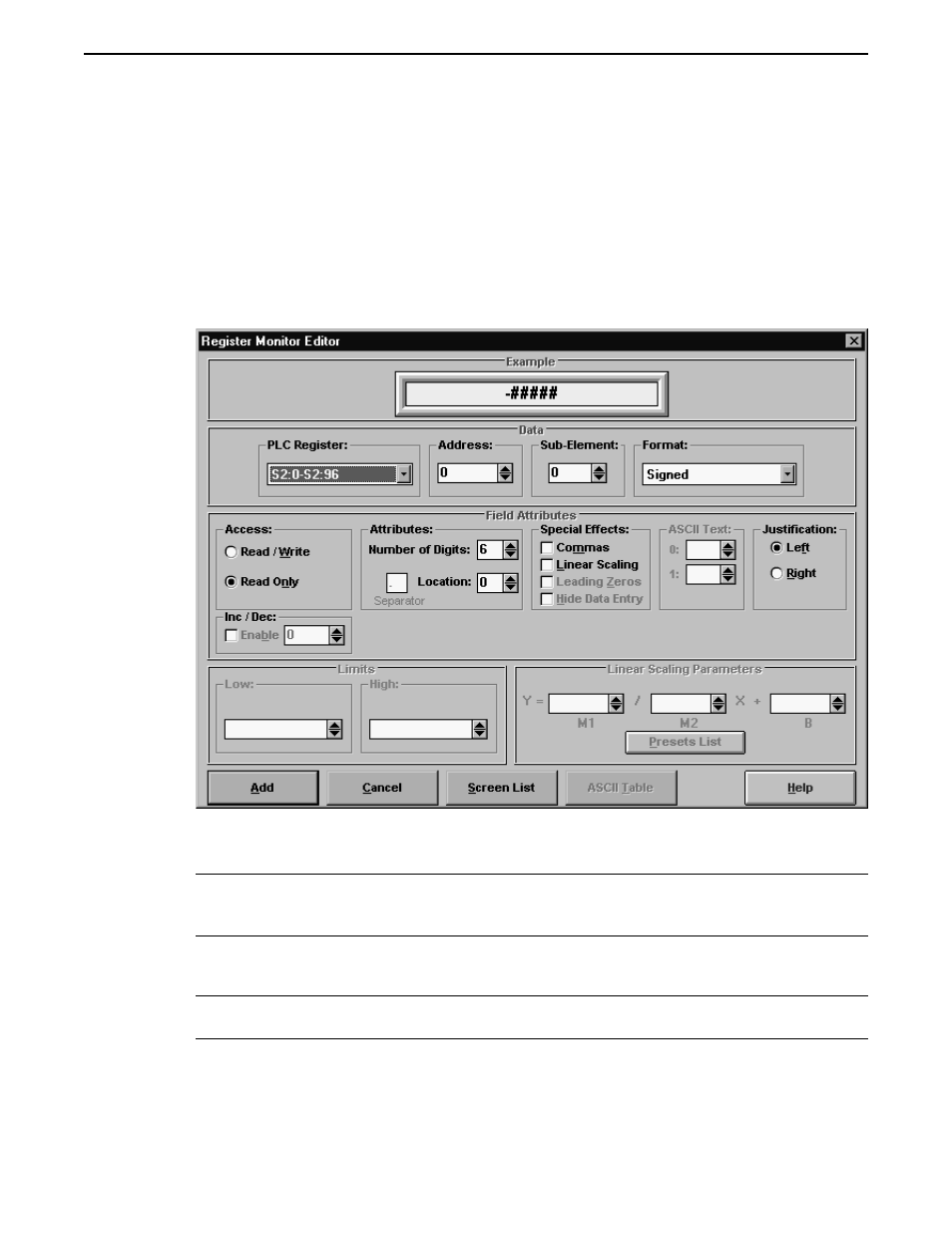

5. From the Insert menu, choose PLC Register Monitor. The Register Monitor Editor
dialog box appears.
6. In the Data group box, select a PLC Register, Address, and Sub-Element of a register
in your PLC that the OIT can pull data from when this sample program is run.
NOTE:The PLC register the OIT monitors for this sample project does not need to have any
data in it. When this message screen is displayed on the OIT, zeros will be displayed if
there is nothing at this register location.
7. In the Data group box, select the data format used in the PLC register selected in the
previous step.
NOTE:If the selected PLC register is not going to have any data in it when you run this sample
program, you can select any data format.
8. Choose the Add button to return to the OITware-200 main screen and insert the PLC
register monitor.
