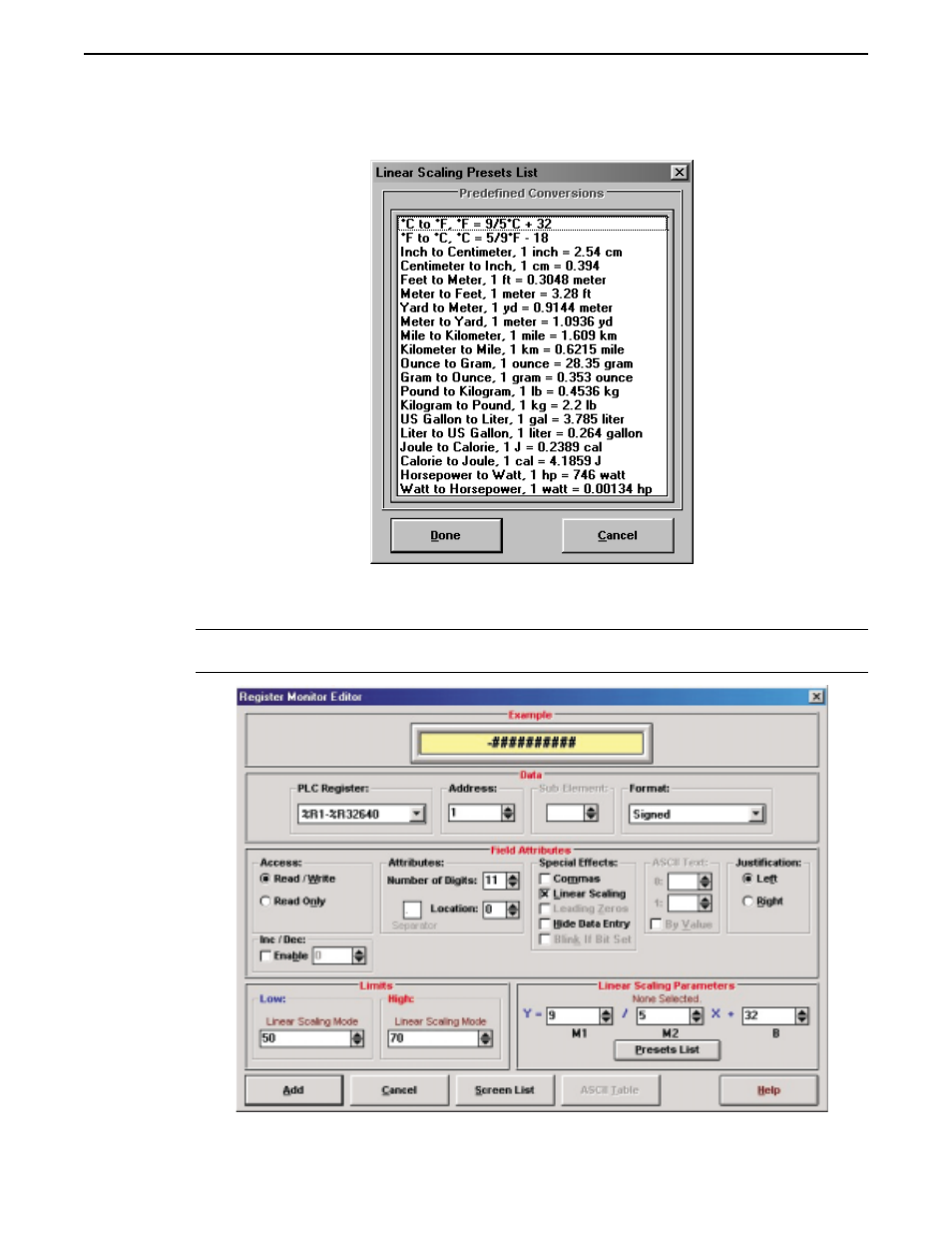

2. In the Linear Scaling Parameters group box, enter the M1, M2, and B values for your
conversion formula or choose the Preset Lists button to select a preset formula from
the Linear Scaling Presets List.
3. If this is a read/write register monitor, you can enter low and high limits to stop the
OIT operator from entering invalid values.
NOTE: When using low and high limits, the values should be entered in the unit of measure being
used by the OIT operator not the unit of measure being used in the PLC register.
