Configure Screen #1 as the Startup Screen
This step walks you through the configuration of Screen #1 as the startup screen. The
OIT stores up to 500 predefined screens (250 on the OIT5400). One of these predefined
screens can be designated as the startup screen. The OIT automatically displays the
startup screen whenever it is reinitialized. For more information on startup screens, refer
to the Startup Screen section in CHAPTER 5: Displaying Stored Screens.
1. In the Screen Editor, type Welcome to the 123 and press the PCs ENTER key.
2. In the Screen Editor, type Machine - Press F1.
3. In the Basic Screen Characteristics group box, select
• Screen Type — Message
• Extensions — none
• Alarms — n/a
• Destination — Display Only.
4. In the Special Effects group box, select the Start Up Screen check box.

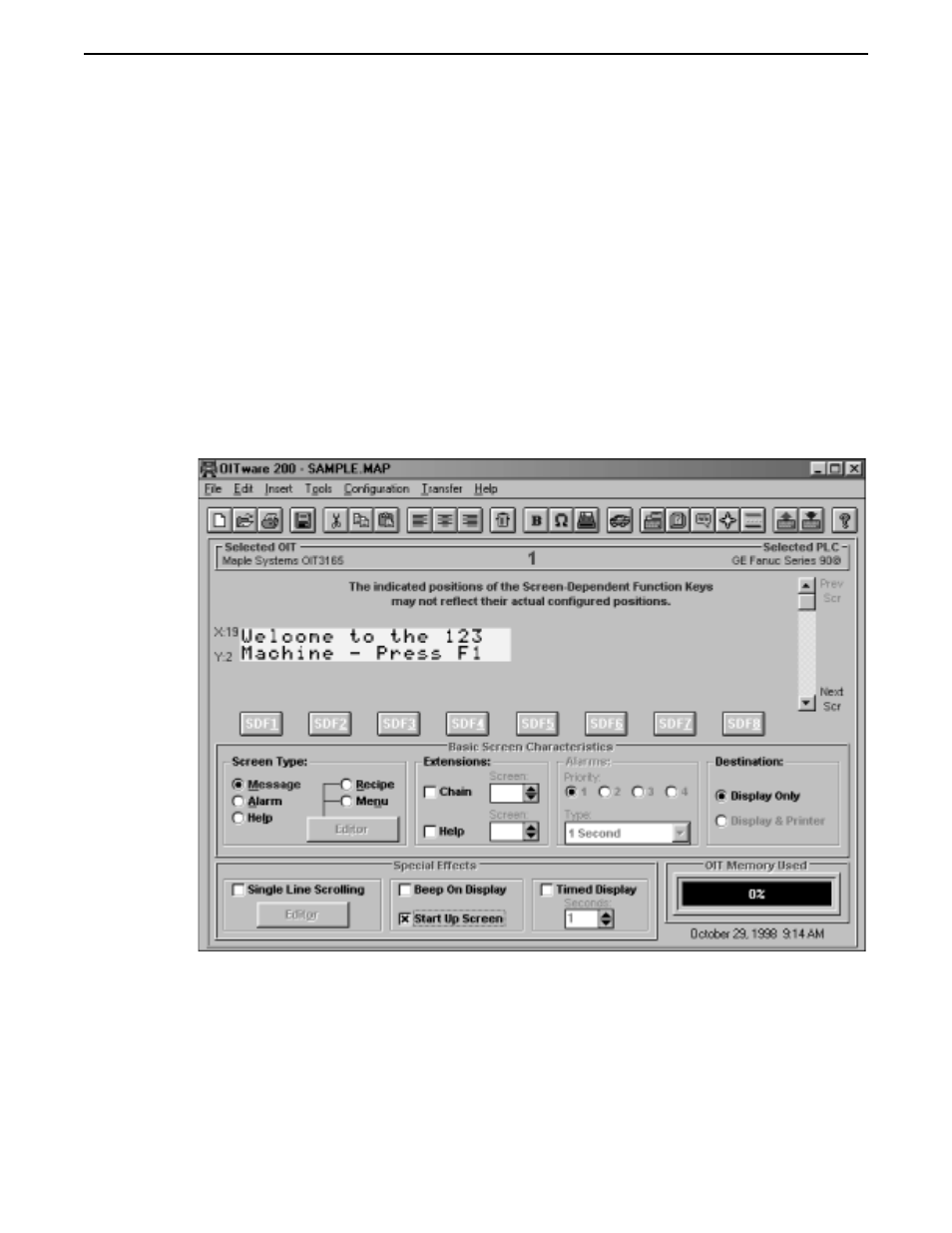

The OITware-200 main screen should look similar to the following screen.
Configure Screen #2 as a Message with a PLC Register Monitor
This step walks you through the configuration of Screen #2 as a message with one PLC
register monitor. Any of the OIT’s 500 predefined screens (250 on the OIT5400) can be
configured as message screens. Message screens are the simplest and most often used
type of screen. They can provide the OIT operator with a means of changing data in the
PLC or simply convey information. For more information on message screens, refer to
the Message Screens section in CHAPTER 3: Stored Screens. For more information on
PLC register monitors, refer to CHAPTER 4: PLC Register Monitors.
