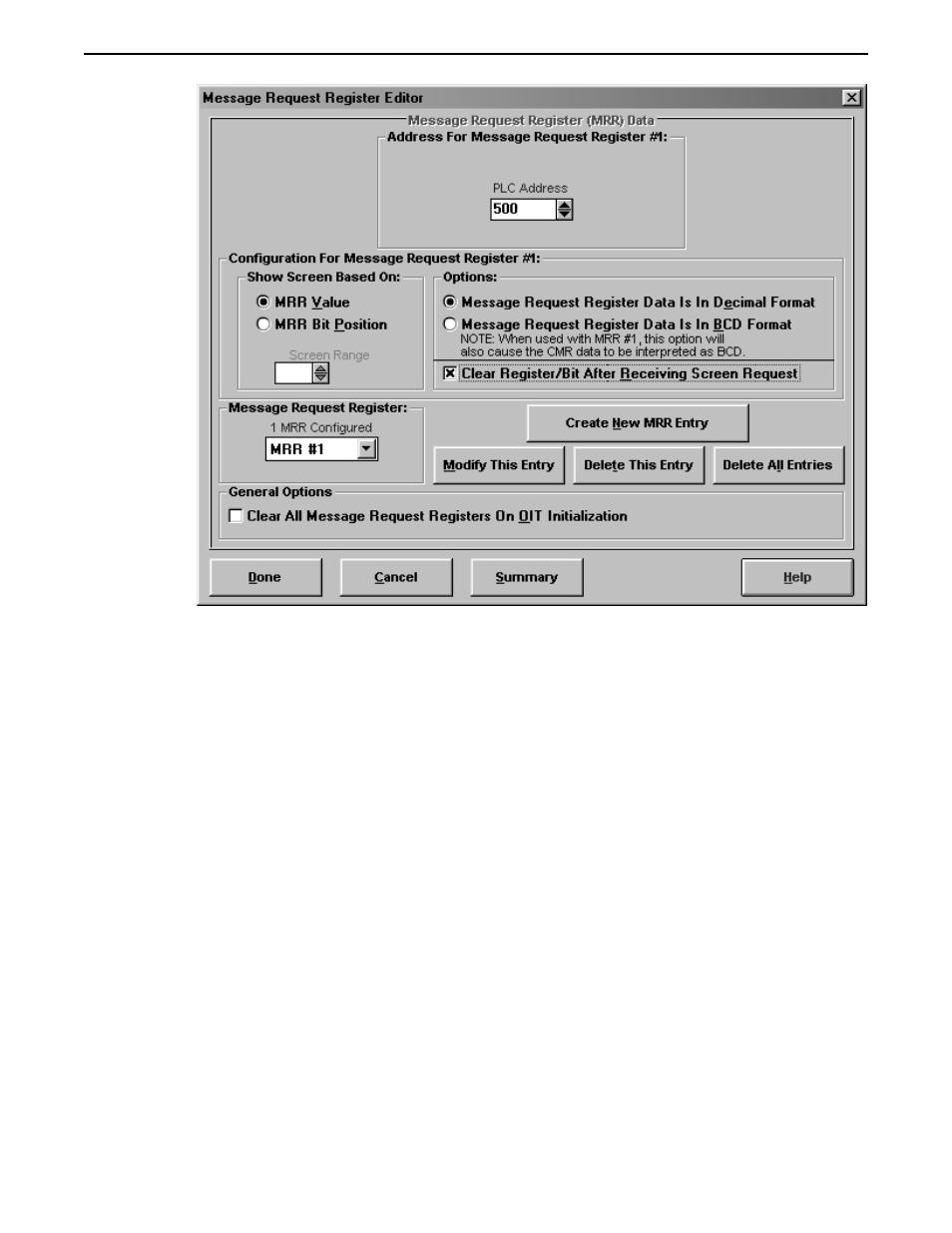

5. In the Address For Message Request Register #1 group box, in the scroll box, specify
the PLC address for this MRR.
6. In the Show Screen Based On group box, select the MRR Value or MRR Bit Position
option button.
7. If creating a bit position MRR, in the Show Screen Based On group box, in the scroll
box, select the starting screen number for this MRR’s sixteen screen range.
8. If creating a value MRR, in the Options group box, specify the data format for this
MRR.
9. If you want the OIT to clear the MRR after each PLC screen request, in the Options
group box, select the Clear Register/Bit After Receiving Screen Request check box.
10. Choose the Create New MRR Entry button. This MRR is added.
11. Repeat steps 5 through 10 for each additional MRR to be created.
12. If you want the OIT to set all MRRs to 0 whenever the OIT powers up, in the General
Options group box, select the Clear All Message Request Register On OIT
Initialization check box.
13. Choose the Done button to return to the OIT Message Control Settings dialog box.
14. Choose the Done button to return to the OITware-200 main screen.
