To insert a register monitor into a screen:

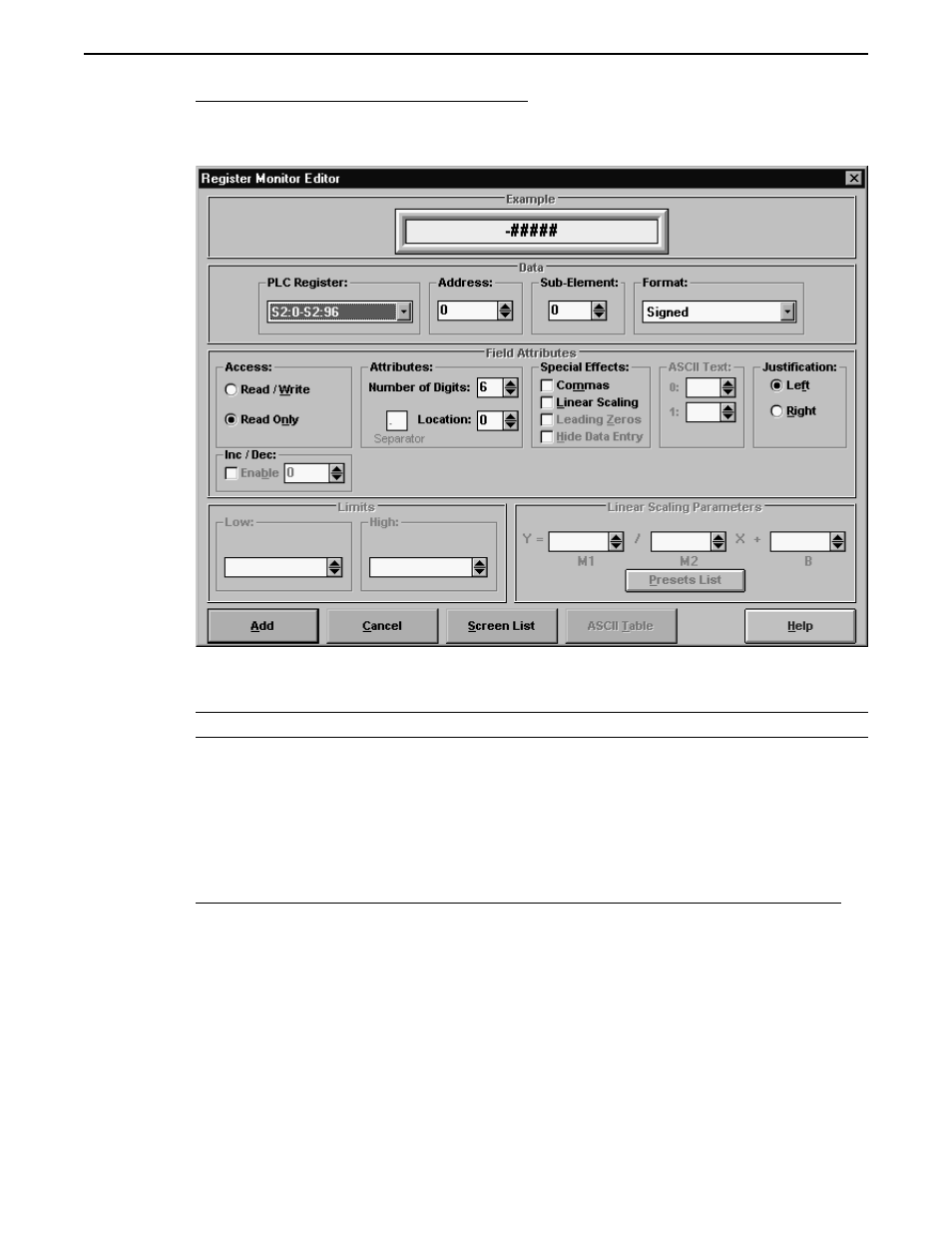

1. From the Insert menu, choose PLC Register Monitor or choose the PLC Register
Monitor button from the toolbar. The Register Monitor Editor dialog box appears.
2. In the Data group box, select the PLC Register, Address, and Sub-Element you want
to monitor in the PLC.
NOTE: If you are inserting Time, Date, Message Stack Size, or Alarm Stack Size, skip this step.
3. In the Data group box, select the format that corresponds to the data format in the
PLC register being monitored. For more information on the available formats, refer to
the PLC Register Monitor Formats section in this chapter.
4. Use the Field Attributes, Limits, and Linear Scaling Parameters group boxes, to
configure the attributes for this PLC Register Monitor. For more information on the
available attributes, refer to the PLC Register Monitor Attributes section in this chapter.
To Create a Recipe Preset Register Monitor (OIT3100 and OIT4100 Series Only)
A Recipe Preset Register Monitor allows an operator to change the value of a Recipe
Preset (see Chapter 3: Stored Screens) without having to reconfigure the OIT. This
Register Monitor works in a manner similar to any other PLC Register Monitor. The
difference is that the register being monitored and changed is a Recipe Preset instead of
being a location in a PLC.
