When illustrating (all models except OIT3165, OIT3175, OIT3185, OIT4165, OIT4175,
and OIT4185):
• Background colors should extend to the solid lines.
• The tick marks define the edge of the viewable area. Keep all text and graphics within the
tick marks.
NOTE: Do not affix anything to the legend using glue, tape, stickers, etc.

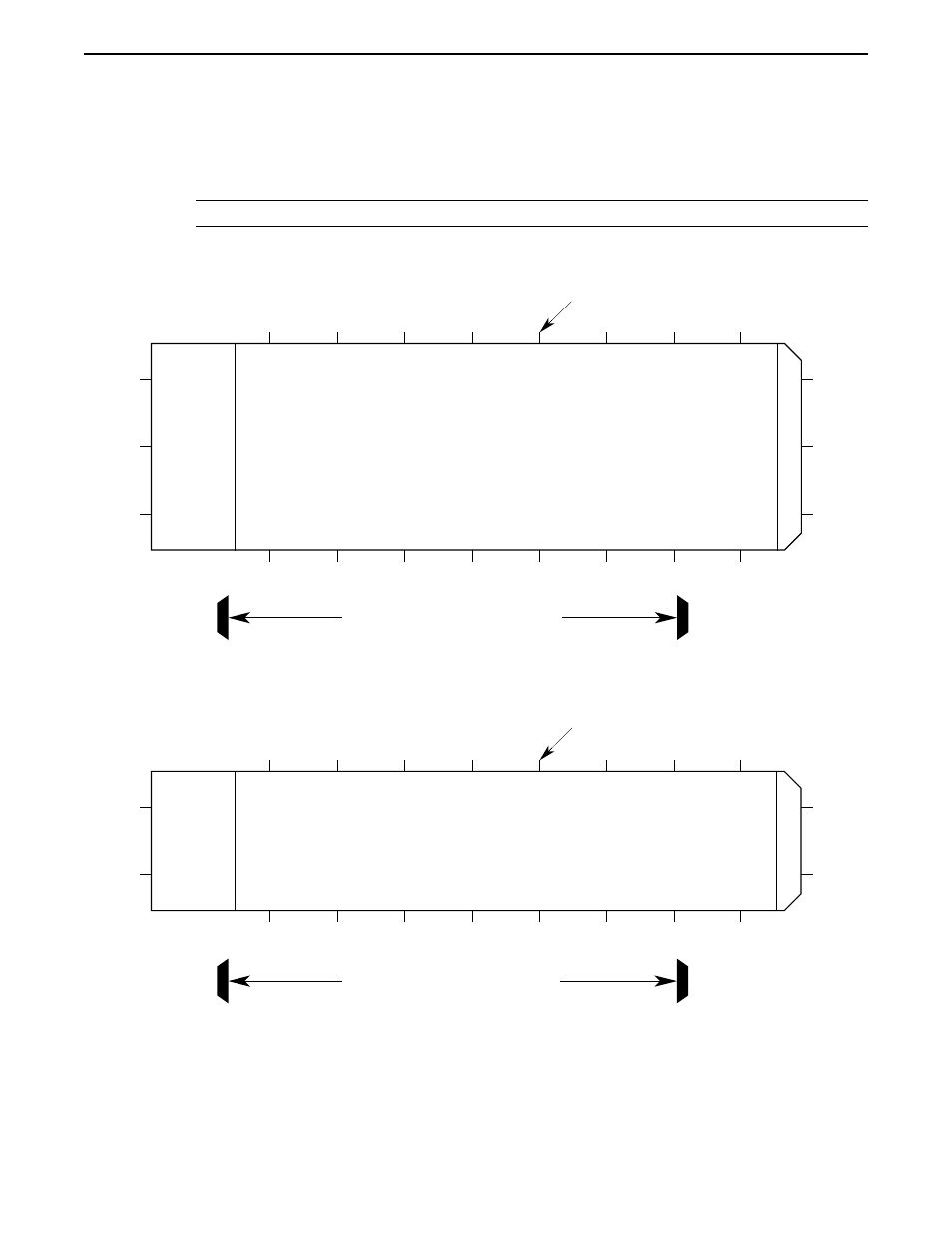

OIT3165A, OIT3185A, OIT4165A and OIT4185A Legend
OIT3175A and OIT4175A Legend
Slide-in Legend Templates 112
1010-0099, Rev. 07
switch centerlines
"Tick" marks indicate
Check Dimension 4.00" [101.6 mm]
switch centerlines
"Tick" marks indicate
Check Dimension 4.00" [101.6 mm]
