Arrange the Keys
Now that you have chosen the keys you want to use, it is time to arrange them.
Photocopy this page, then use one of the following blank keypads to arrange your keys.
NOTE:You do not have to use every key position.
If you will be using the HELP key with menu screens, do not combine the HELP key
with any numeric key that is used in a menu screen.

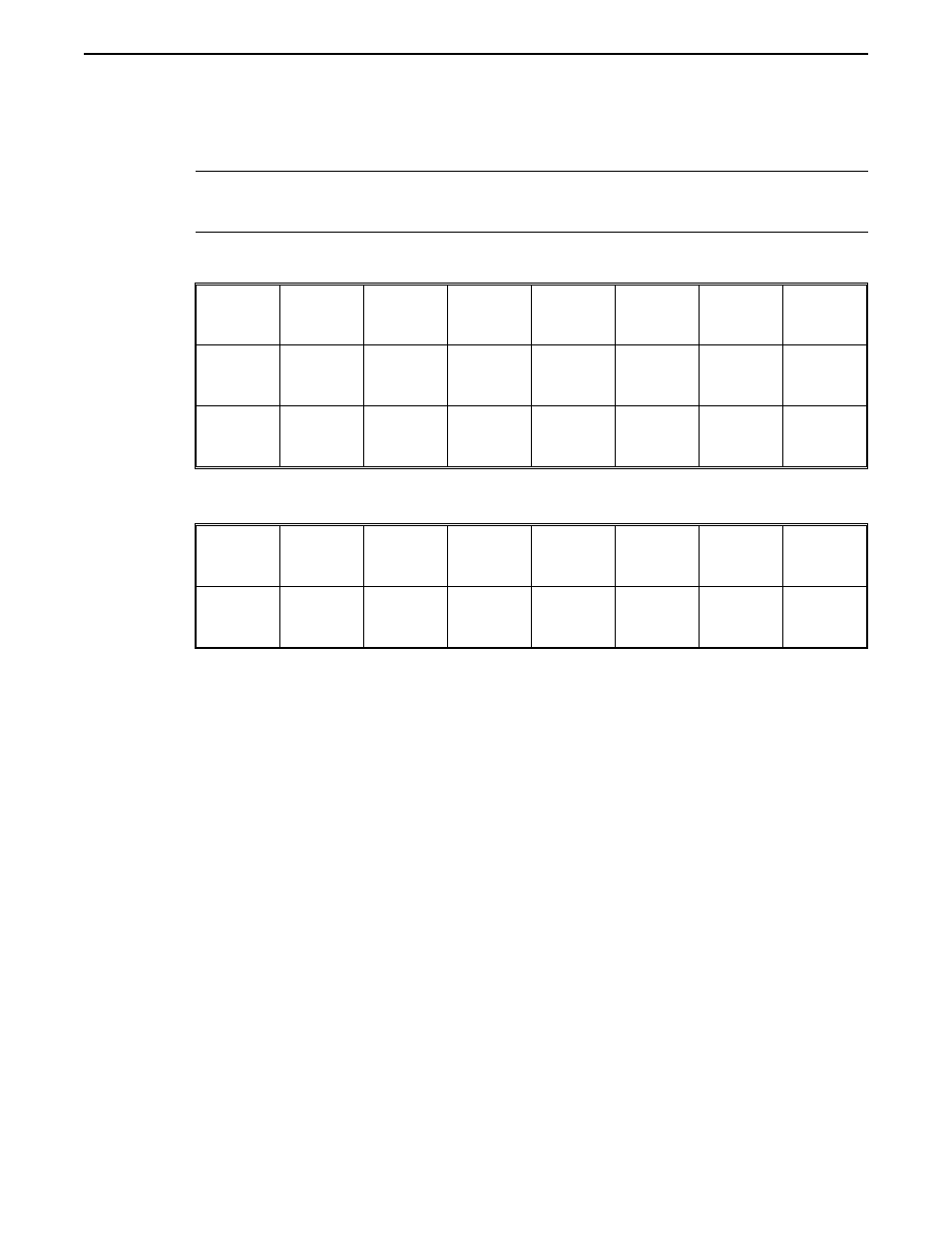

Blank Keypad: OIT3165, OIT3185, OIT4165, and OIT4185 (not to scale)
Blank Keypad: OIT3175 and OIT4175 (not to scale)
Maple Systems also provides key legend editor software for the OIT3165/75/85 and
OIT4165/75/85 that allows you to create customizable inserts. The program allows you
to create and edit text, bitmaps, icons, or metafiles. It also includes some standard
symbols that can be used for graphics. This software is available on our website:
www.maple-systems.com.
Configuring the User-Definable Keypad 92
1010-0099, Rev. 07
