Maple Systems OIT Family - Manual (Page 13)

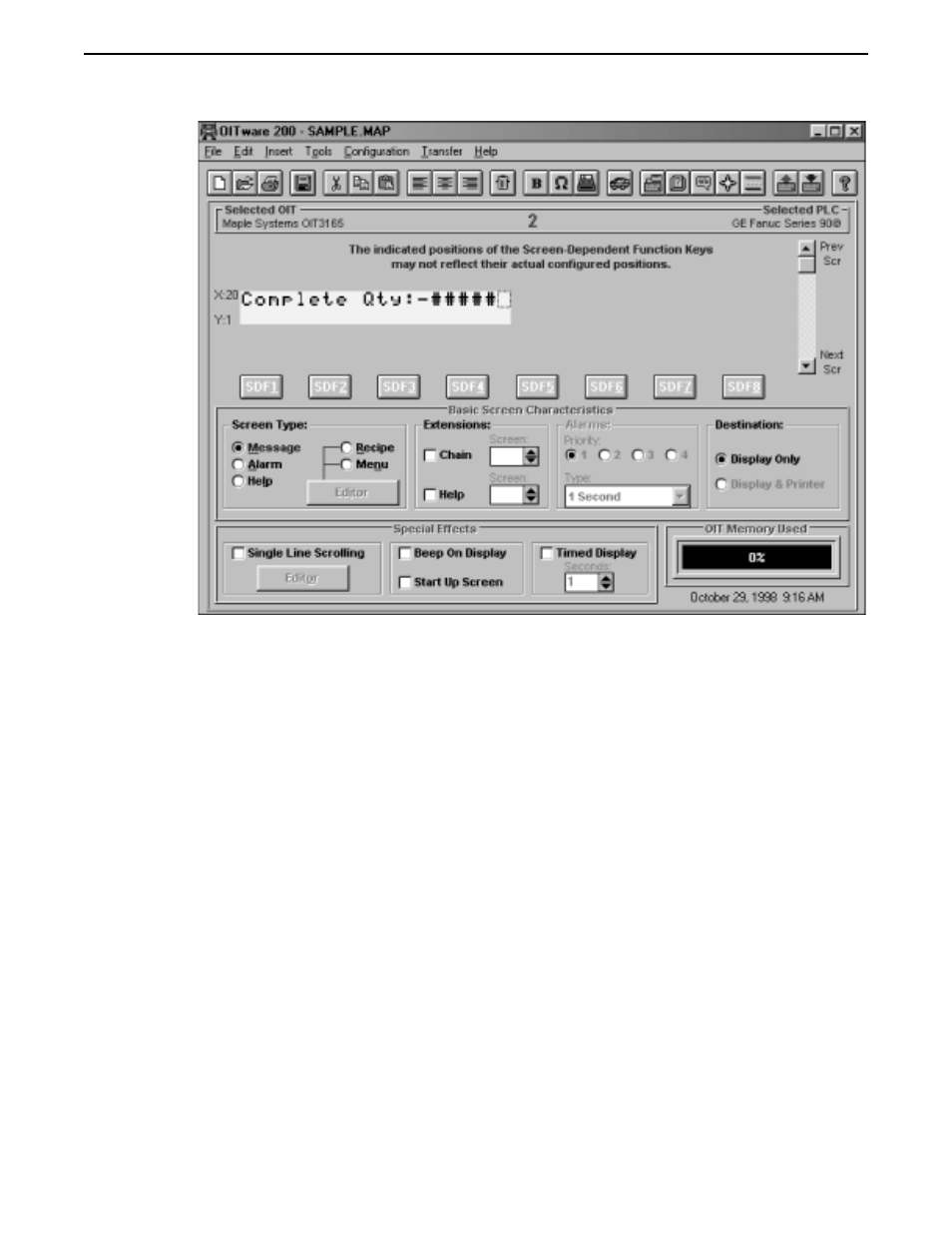

The OITware-200 main screen should look similar to the following screen.
Configure Function Key #1 to Display Screen #2
This step walks you through the configuration of Function Key #1 to display Screen #2.
Each of the OIT’s function keys can be configured to display a screen or simulate a
momentary or push-on/push-off switch. For more information on Function Keys, refer to
CHAPTER 6: Key Types.
1. From the Configuration menu, choose Keyboard Settings, then choose Function Key
Editor. The Function Key Editor appears.
2. In the Assignment group box, select the F1 option button.
3. In the Attributes For Key #1 group box:
• in the Action drop down list box, select Screen
• in the Screen scroll box, select 2.
4. Choose the Done button to return to the OITware-200 main screen.
5. From the File menu, choose Save.
CONGRATULATIONS! You have completed your first OITware-200 project.
Getting Started 13
1010-0099, Rev. 07
