1/0 Coil
This format is used to represent a single coil in the PLC as a binary value with 0
indicating the coil is off and 1 indicating the coil is on.
Access: Read/Write, Read Only
Attributes: Blink if Bit Set
On/Off Coil
This format is used to represent a single coil in the PLC as a binary value with “off”
indicating the coil is off and “on” indicating the coil is on.
Access: Read/Write, Read Only
Attributes: Blink if Bit Set
Bank 8
This format is used to represent eight consecutive coils in the PLC as binary values with
0 indicating the coil is off and 1 indicating the coil is on. The highest addressed coil is
always displayed in the left-most position.
Access: Read Only
PLC Register Monitors
49
1010-0099, Rev. 07
2
3
4
6
5
7
8

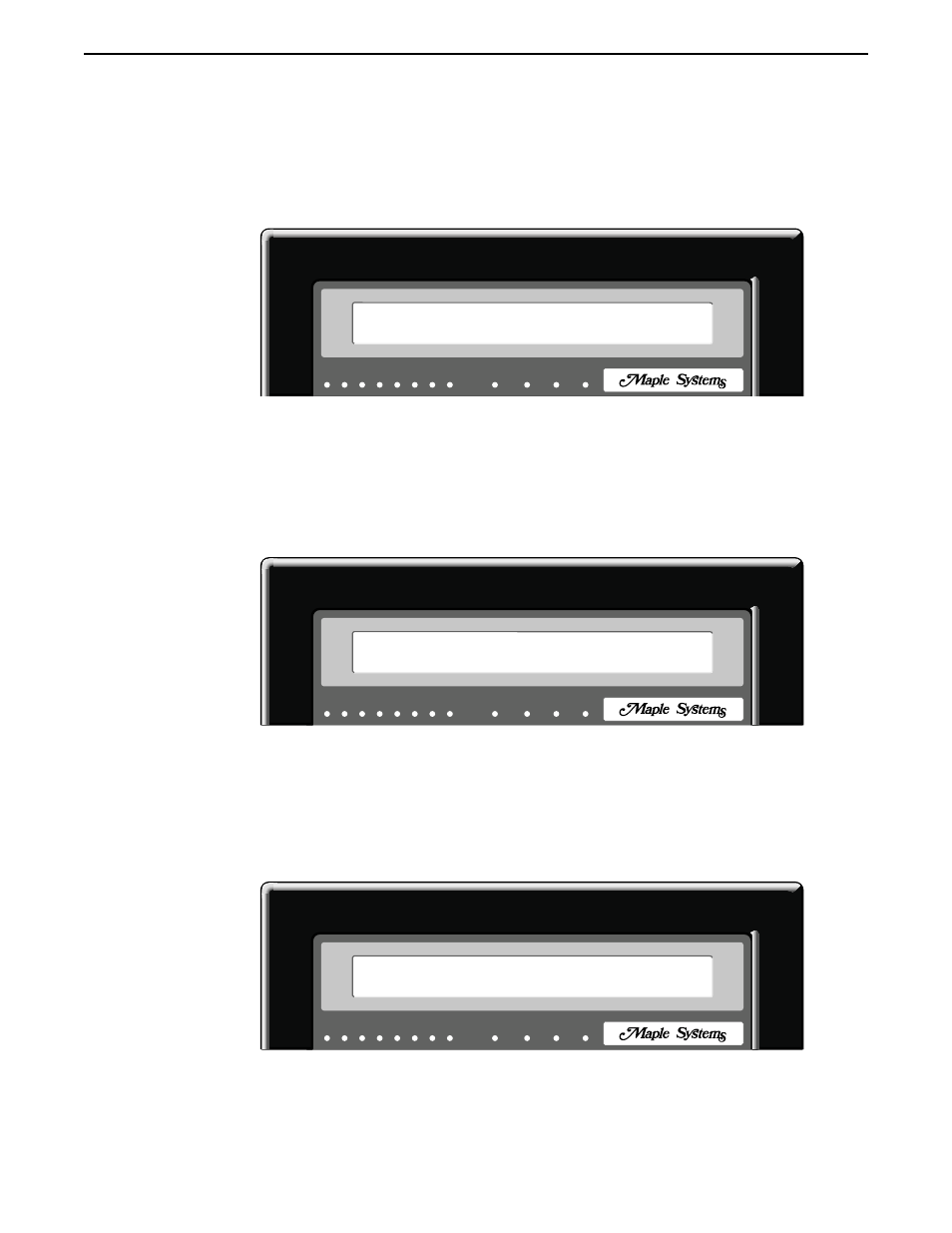

MESSAGE ALARM
RUN
1
Use switch #1 to change status of coil
Motor: On
Motor: 1
2
3
4
6
5
7
8
MESSAGE ALARM
RUN
1
Press toggle to turn on motor
Motor: Off
2
3
4
6
5
7
8
MESSAGE ALARM
RUN
1
Thumbwheel switch (BCD): 74
Thumbwheel switch (Bank 8): 01110100
