Maple Systems OIT Family - Manual (Page 10)

Save the Project
1. From the File menu, choose Save As. The Save OIT Project File As dialog box
appears.
2. In the File Name text box, type sample.map.
3. Choose the OK button to save the project and return to the OITware-200 main screen.
Configure the User-Definable Keys
(OIT3100 and OIT4100 Series, except 3160/4160)
This step shows you how to access the User-Defined Key Editor and display the default
keypad template. The OIT3100 and OIT4100 Series, except 3160/4160 allow you to
configure the keypad by selecting the keys you want and arranging them in any order.
When you start an OITware-200 project for one of these models, the default keypad
template is automatically loaded. For more information on configuring the user-definable
keys, refer to CHAPTER 7: Configuring the User-Definable Keypad.

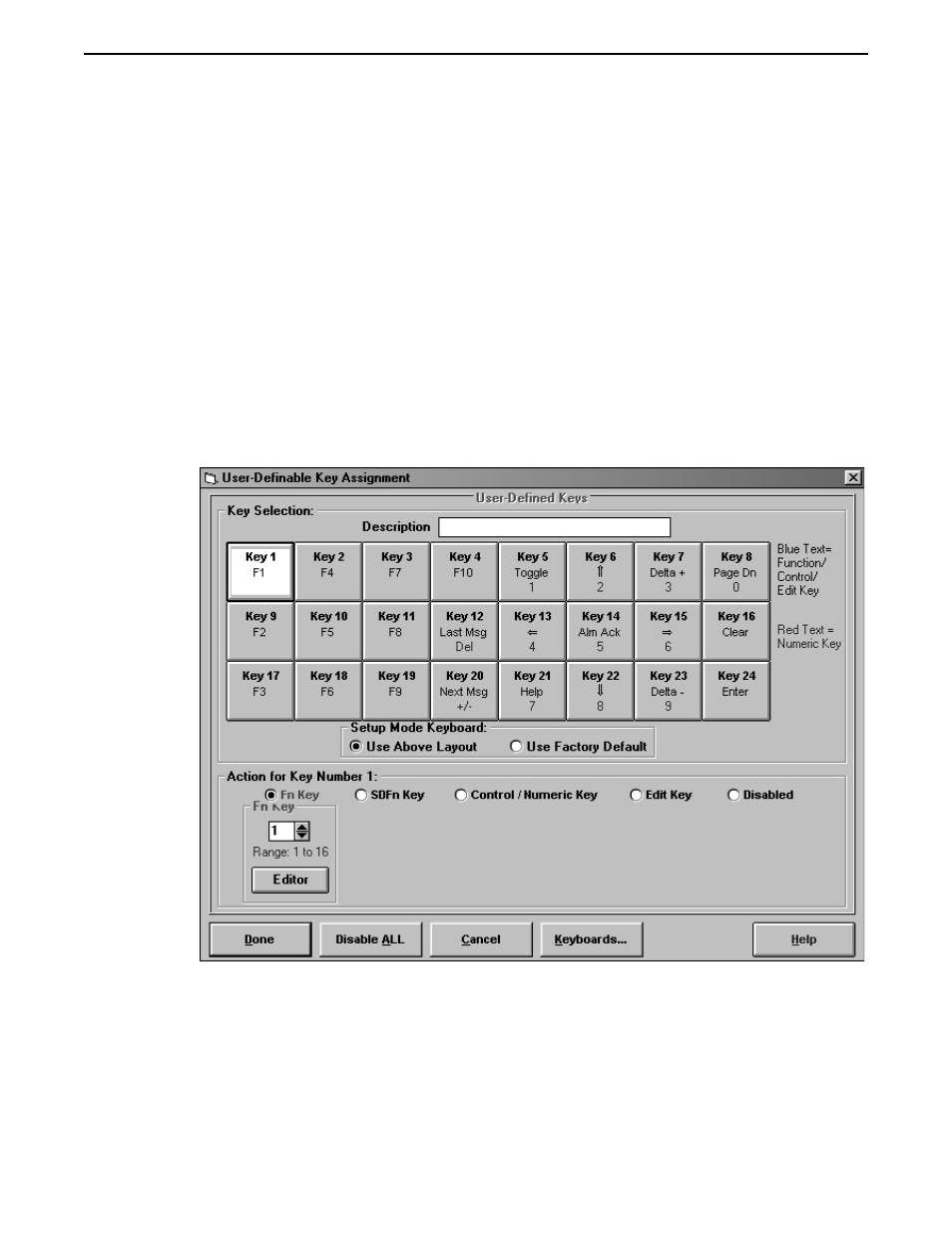

1. From the Configuration menu, choose Keyboard Settings, then choose User-Defined
Key Editor. The User-Definable Key Assignment dialog box appears.
2. The default keypad template should be displayed. This is the screen you will use in
the future to configure the keypad. To accept the default keypad template, choose the
Done button to return to the OITware-200 main screen.
Getting Started 10
1010-0099, Rev. 07
