Configure the Communication Settings
This step guides you through the configuration of the OIT’s communication settings.
NOTE:It is important to refer to the Controller Information Sheet that corresponds to your PLC. The
Controller Information Sheets contain information you must have to configure the
communication settings, status coils, message request register, and current message register.

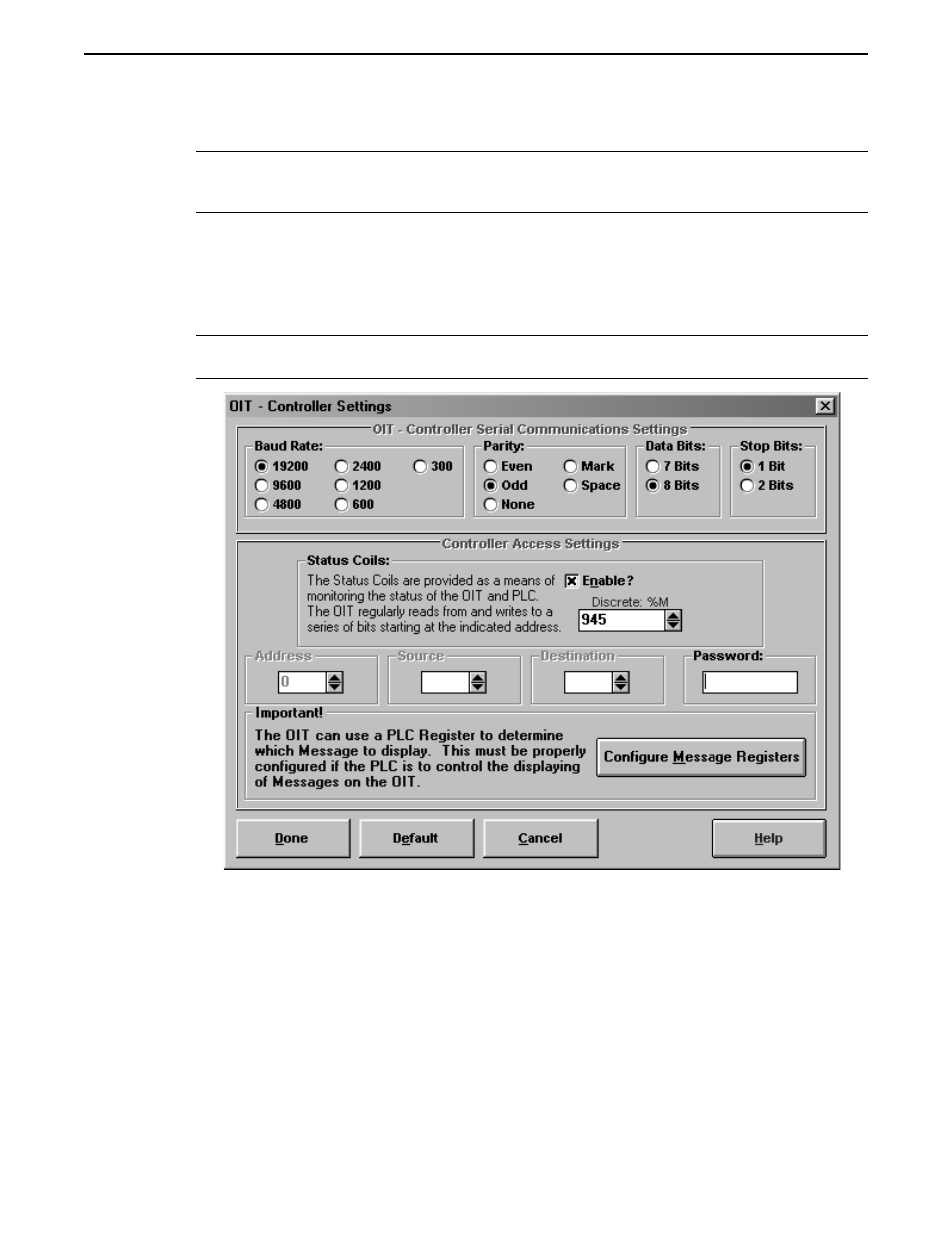

6. In the OIT - Controller Serial Communications Settings group box, select the correct
Baud Rate, Parity, Data Bits, and Stop Bits for communication with your PLC.
7. In the Controller Access Settings group box, select the correct Address, Source,
Destination, and Password for your PLC. Refer to the Controller Information Sheet
that corresponds to your PLC for more information on these settings.
NOTE:Not all of these settings are required for all PLCs. OITware-200 will gray out the
settings that do not apply to the PLC Type you selected in the New Project dialog box.
Getting Started 7
1010-0099, Rev. 07
