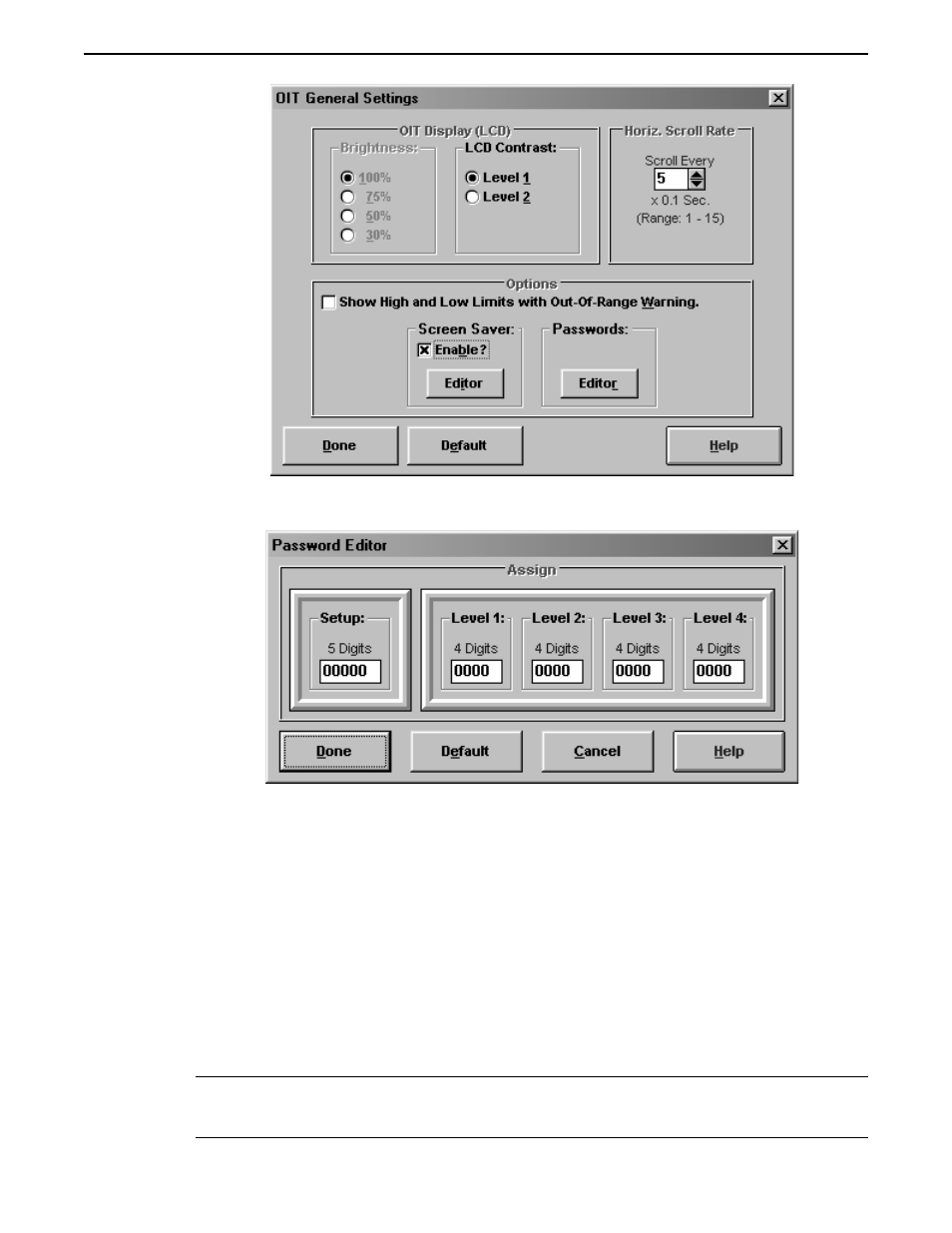

2. In the Passwords group box, choose the Editor button. The Password Editor appears.
3. In the Level 1 through Level 4 group boxes, enter the passwords. The passwords must
be four digits and contain only numbers.
4. Choose the Done button to return to the OIT General Settings dialog box.
5. Choose the Done button to return to the OITware-200 main screen.
Global Function Keys
Each global function key can be configured to perform one function regardless of which
stored screen the OIT is displaying. When the OIT is programmed, each function key is
assigned to a particular PLC coil. If the function key is configured as Push On/Off,
Latched, or Momentary, the corresponding coil is controlled by the function key. If the
function key is configured as Screen Display or Disabled, the corresponding coil can be
used by the PLC for other purposes.
NOTE:The OIT3160 and OIT4160 have no global function keys. However, each screen
dependent function key can be configured with a global function that allows it to
operate like a global function key.
Key Types 75
1010-0099, Rev. 07
