85
CATC F IRE I NSPECTOR 2.01 C HAPTER 5
User’s ManualCATC Trace Fil es
5.5.5 Find
Use Find to perform a search for events that meet certain criteria. The Find dialog (Figure
5-27) provides many options for configuring complex search parameters.
To find an event:
Step 1
Select Search > Find... from the menu bar or click the Find button on the
toolbar.
Step 2 The Find dialog will open.
Step 3
Select an event type in the Search For list.
Note: The Search For list contains only those event types that are visible in the
active Trace file. Event types that are hidden or not contained in the Trace are
grayed out in the list.
The Event Groups list will display the event groups for the type of event you
have selected.
Step 4
Select an event group from the Event Groups list.
Parameters for the chosen group will appear to the right of the list when you
click on an event group name. If a parameter is grayed out, that means that it
isn't visible or doesn't occur in the active Trace file.
Step 5
Select the parameter(s) that you want to find in the Trace.
When parameters are set for a selected event group, a check mark will appear
in the checkbox next to the event group's name in the Event Groups list.
Step 6
(Optional) Repeat Steps 3 and 4 until the parameters are set to your liking.

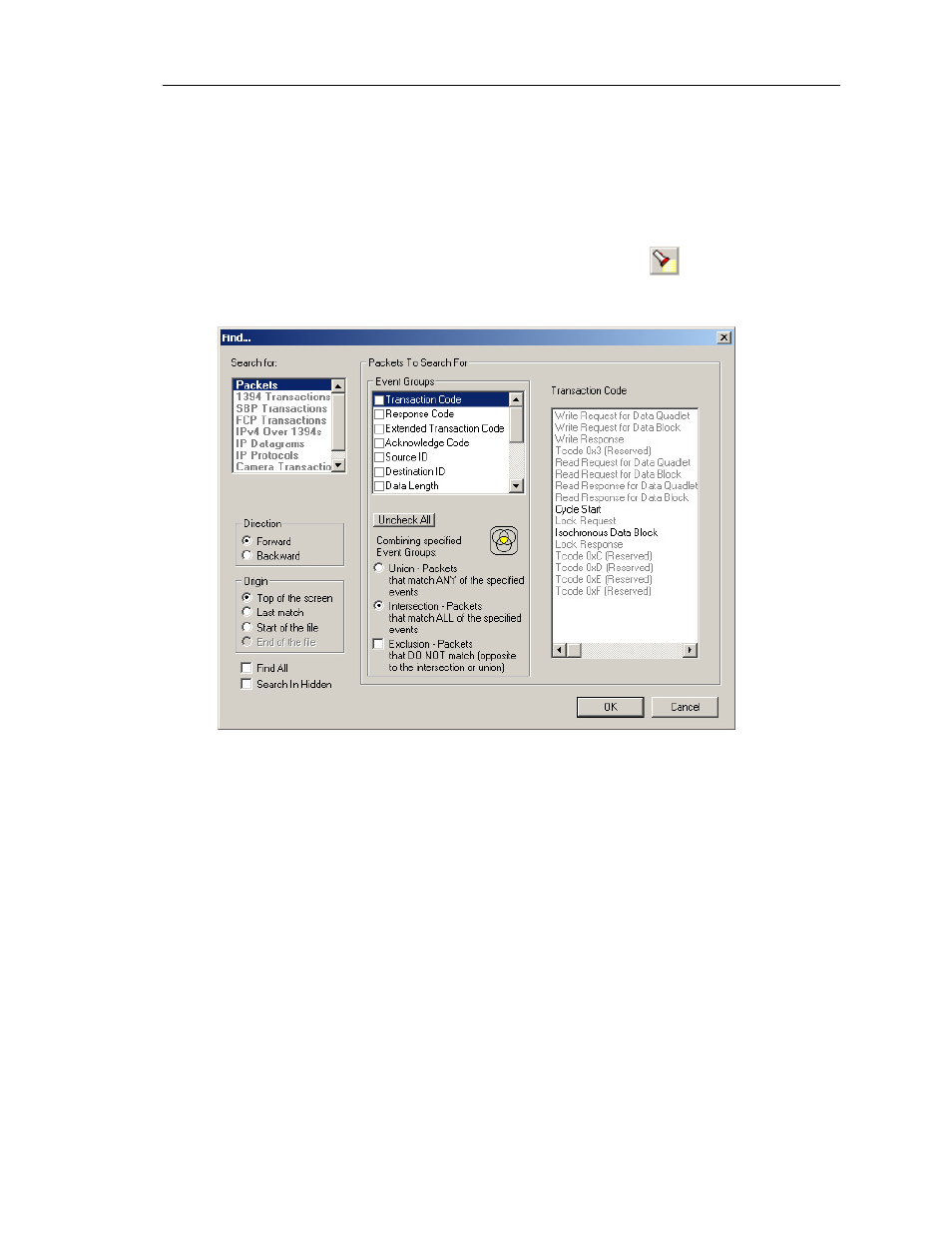

Figure 5-27: Find dialog
