25
CATC F IRE I NSPECTOR 2.01 C HAPTER 3
User’s ManualFireInspector User Interface

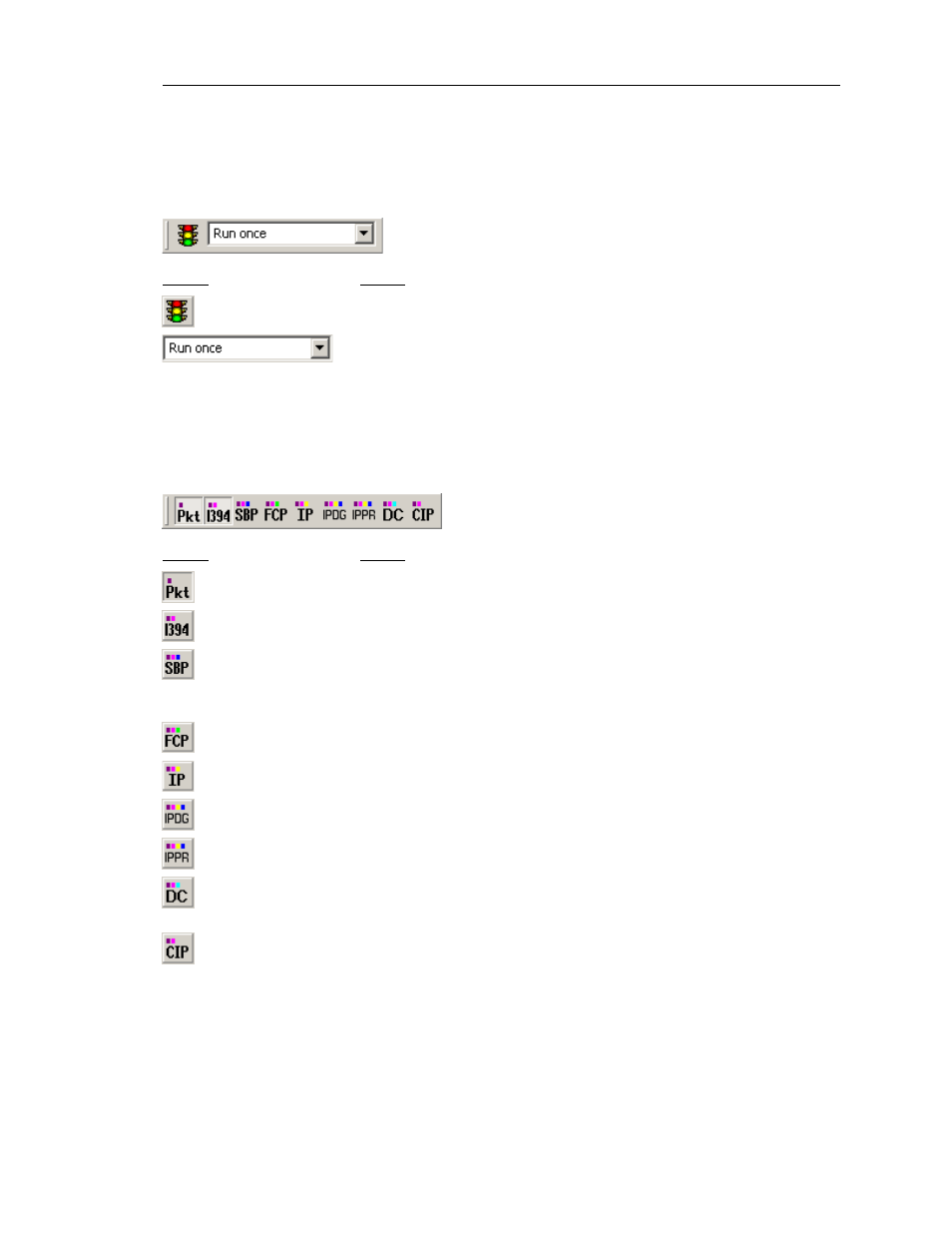

Generator Toolbar
The Generator toolbar contains shortcuts for traffic generation commands. The Generator
toolbar is only available when a traffic generation file is displayed in the active window.
View Level Toolbar
The View Level toolbar contains shortcuts for viewing specific transactions in a Trace
display.
Note: 1394 transactions are automatically displayed when other transactions (except CIPs) are shown.
Button Action
Starts or stops traffic generation
Sets the number of times that traffic generation will repeat
Button Action
Hides all visible transactions and displays just the packets in an active Trace
file
Shows or hides 1394 transactions in an active Trace file
Decodes and displays SBP transactions in an active Trace file; if SBP hasn’t
been previously decoded in the active Trace file, then the Decode SBP
Transactions dialog, which is used to set SBP decoding parameters, opens
first
Decodes and displays Function Control Protocol transactions in an active
Trace file
Shows or hides IPv4 over 1394 transactions in an active Trace file
Shows or hides Internet Protocol Datagram transactions in an active Trace
file
Shows or hides high-level Internet Protocol transactions in an active Trace
file
Opens the Decode Camera Transactions dialog to set Digital Camera 1.30
decoding parameters and then display the decoded transactions in an active
Trace file
Shows or hides 61883 Common Isochronous Packets in an active Trace file
