127
CATC F IRE I NSPECTOR 2.01 C HAPTER 10
User’s ManualPrinting and Exporting Fil es
Step 2 Define the range of packets that you want to export by entering packet
numbers or by selecting starting and ending markers from the drop down
lists.
Step 3
Click OK.
The Save in CSV Format... dialog will appear.
Step 4
Enter a file name. You may also browse to a new directory, if desired.
Step 5
Click Save to save the data.
10.2.4 Export to Data Format
This option saves Trace (.fdb) file data to a binary (.dat) or text (.txt) file.
To export a Trace file to data format:
Step 1
Select File > Export > Data.
The Export Data dialog will appear.
Step 2
Define the type of data that you want to export.
•
When exporting Isochronous Datablocks (Iso DB) or Asynchronous
Streams (Async Strm), you must designate a Channel, and you may
optionally exclude CIP headers.
•
When exporting Asynchronous Write (Async Write) or Asynchronous
Reads (Async Read), you must designate the Destination and Source IDs.
Step 3
Select Text or Binary format.
Step 4
(Optional) Specify a maximum file size, in kilobytes.
Step 5
Click OK.
The Export Data in Packet Range dialog will open.
Step 6
Define the range of packets that you want to export by entering packet
numbers or by selecting starting and ending markers from the drop-down
lists.

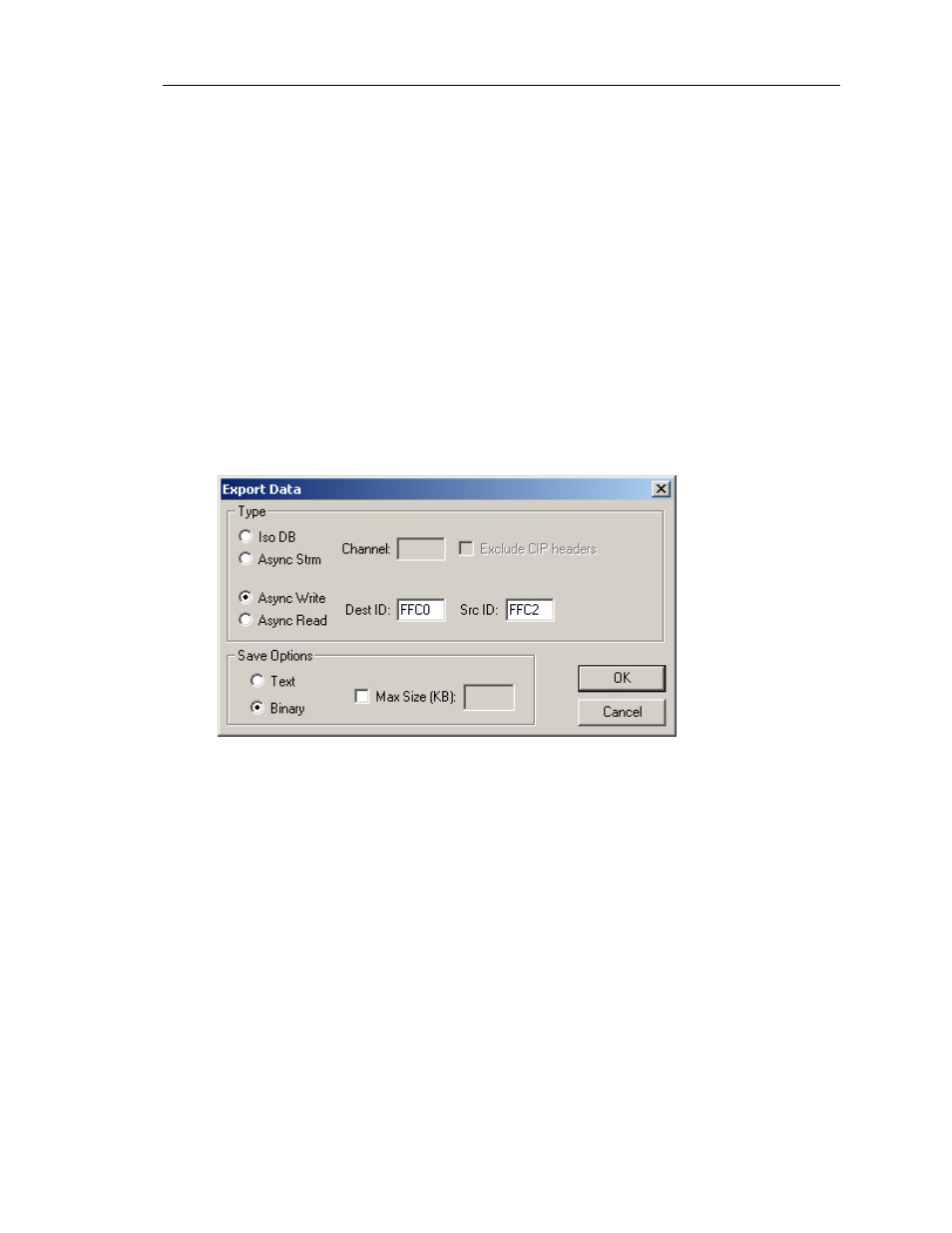

Figure 10-1: Export Data dialog
