Note: This set of parameters is now associated with the Trace file, so, unless they
are reconfigured, these settings will always be used for SBP decoding of the
file.
Other options in the Decode SBP Transactions dialog:
• Reset to Default — loads the default SBP settings (.sbp) file.
• Load... — brings up an Open dialog so that you can browse for an SBP settings file to
use.
• Save as Default — saves the current settings as default.sbp. The default settings are auto-
matically loaded if no other settings can be located for the current file.
• Save As... — brings up a Save As dialog so that you can save the settings as an SBP set-
tings file with a unique name.
• Cancel — closes the dialog without applying or saving changes.
Function Control Protocol (FCP) Transactions
Function Control Protocol is used to transport various device commands over 1394. These
commands are encapsulated in FCP frames.
The only FCP command/transaction sets (CTSs) that FireInspector will fully decode are
Audio/Video Control (AV/C) and Home Audio Video interoperability (HAVi) transactions.
If FireInspector's FCP decoder doesn't recognize the command/transaction set as being
AV/C or HAVi, then it will display only generic cells such as Controller, Target, and
FrameType.

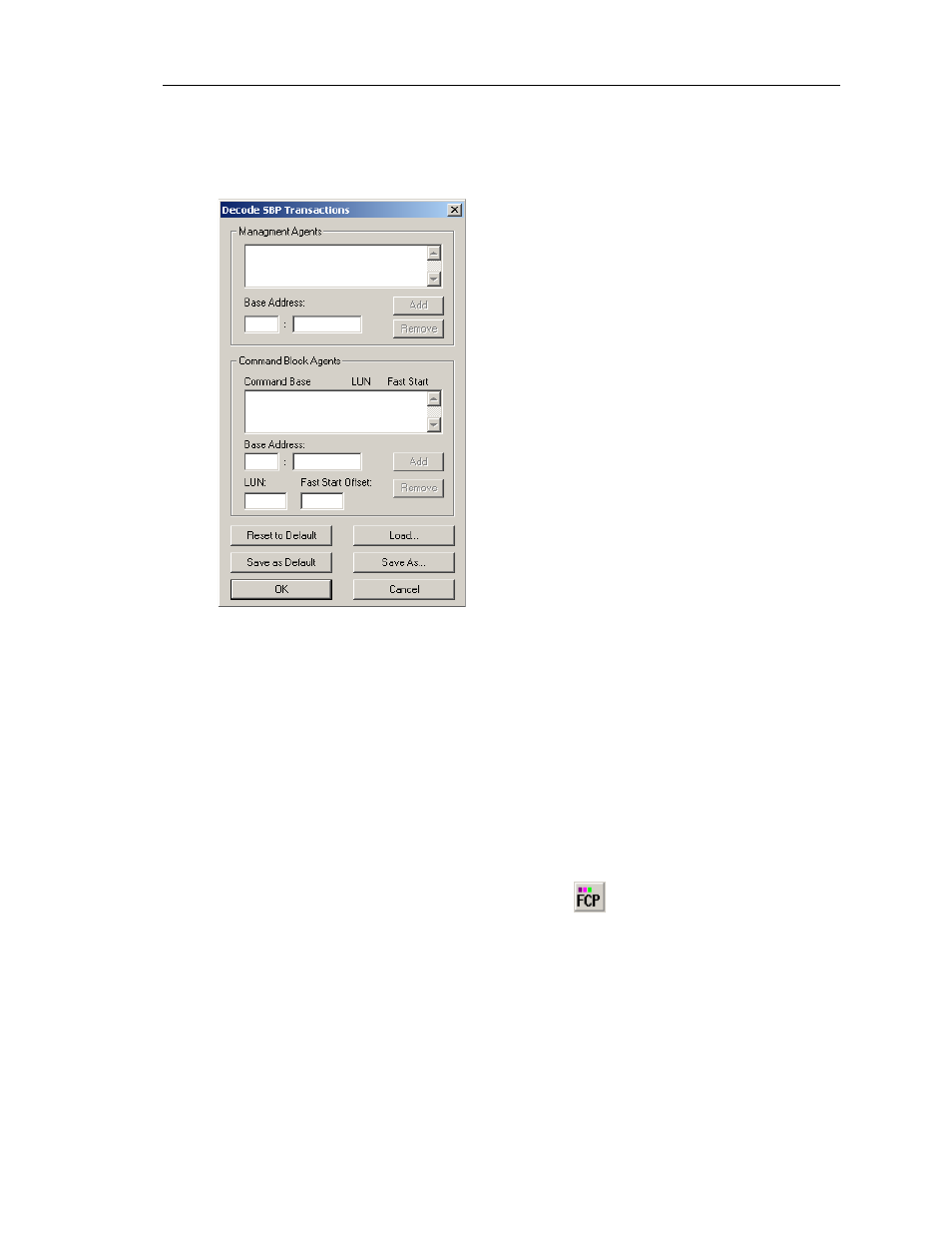

Figure 5-15: Decode SBP Transactions dialog
