8.6.4 Viewing Configuration ROM as Text
FireInspector can display decoded configuration ROM data as text that contains one
hexadecimal quadlet of data per line.
To view the data as text, there must be a configuration ROM tree displayed in the
Configuration ROM dialog.
• Click the View ROM As Text button to display the data in the View ROM As Text win-
dow.
8.6.5 Saving Configuration ROM files
Configuration ROM data can be saved as a Config ROM (.rom) file by FireInspector. These
files can be opened for later viewing in the Configuration ROM dialog display or in a text
editor. A Config ROM file can also be selected as an advanced option when enabling
configuration ROM (for more information about this, please see “Enabling and Disabling
Configuration ROM” on page 39). This allows you to force FireInspector to return the same
configuration ROM as the device being analyzed.
To save the data as a Config ROM file, there must be a configuration ROM tree displayed
in the Configuration ROM dialog.
To save a Config ROM file:
Step 1
Click the Save As... button in the Configuration ROM dialog.
The Save As dialog will appear.
Step 2
Enter a filename and location for the data.
Step 3
Press Save.

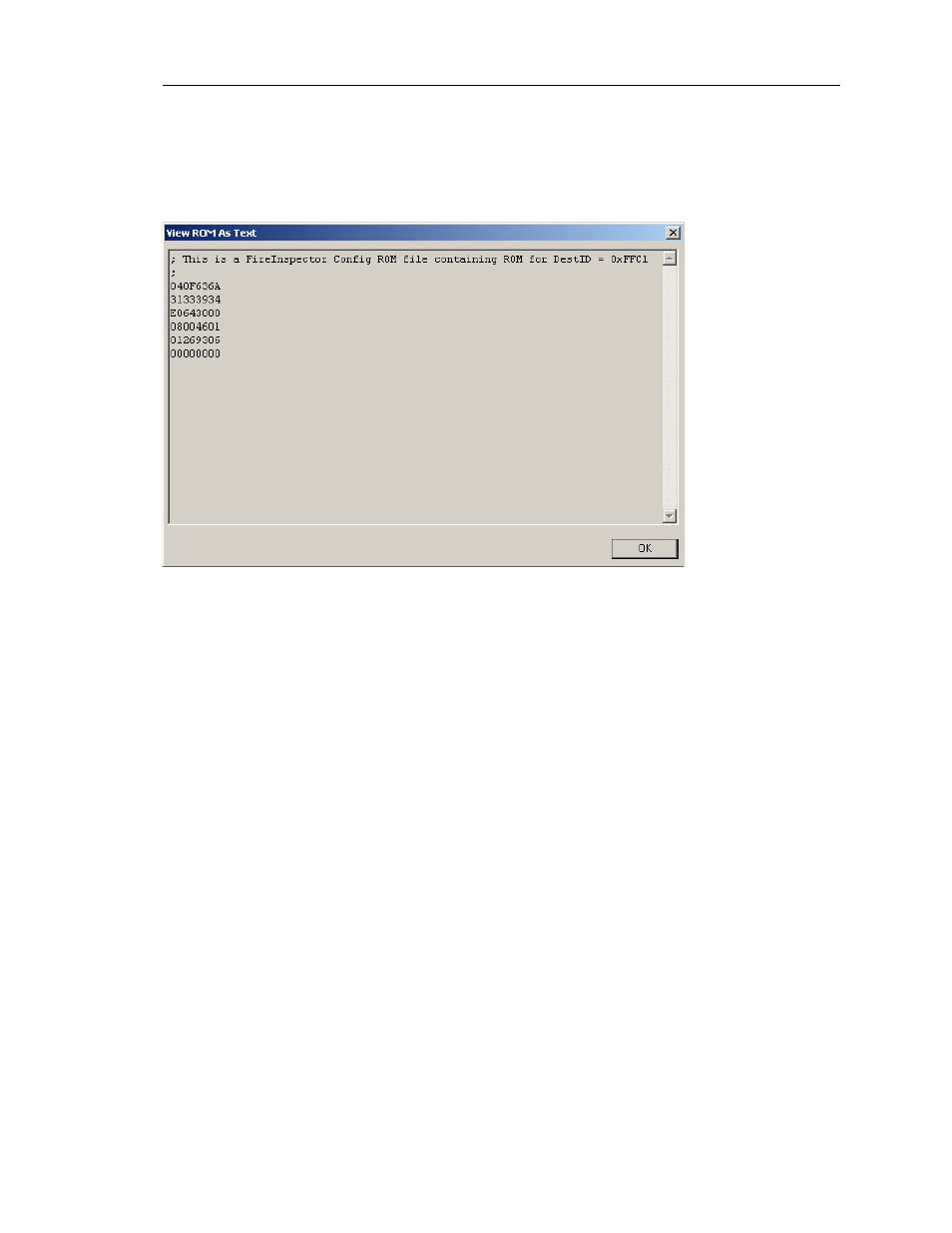

Figure 8-3: View ROM As Text dialog
