101
CATC F IRE I NSPECTOR 2.01 C HAPTER 7
User’s ManualTraffic Generation
7.8.3 Insert Packet
The Insert Packet command is found on the Trace file cell context pop-up menu. The Insert
Packet dialog allows you to put new packets into a traffic generation trace file.
To insert packets:
Step 1
Select a Packet Type.
For each packet type, different packet names appear in the packet list on the
right.
Step 2 Select a packet from the packet list.
Step 3
If desired, set the data length, in bytes, for asynchronous and isochronous
packets.
Step 4
Set the position for the new packet.
Step 5
Click OK.
The Packet Field Editor dialog will appear so that you can further edit the packet. For more
information about editing packets, please refer to “Packet Field Editor Dialog” on page 100.
7.8.4 Change all...Dest_IDs
The Change all...Dest_IDs command is found on the Trace file cell context menu. The
Change Destination ID Throughout File dialog allows you to change all occurrences of a

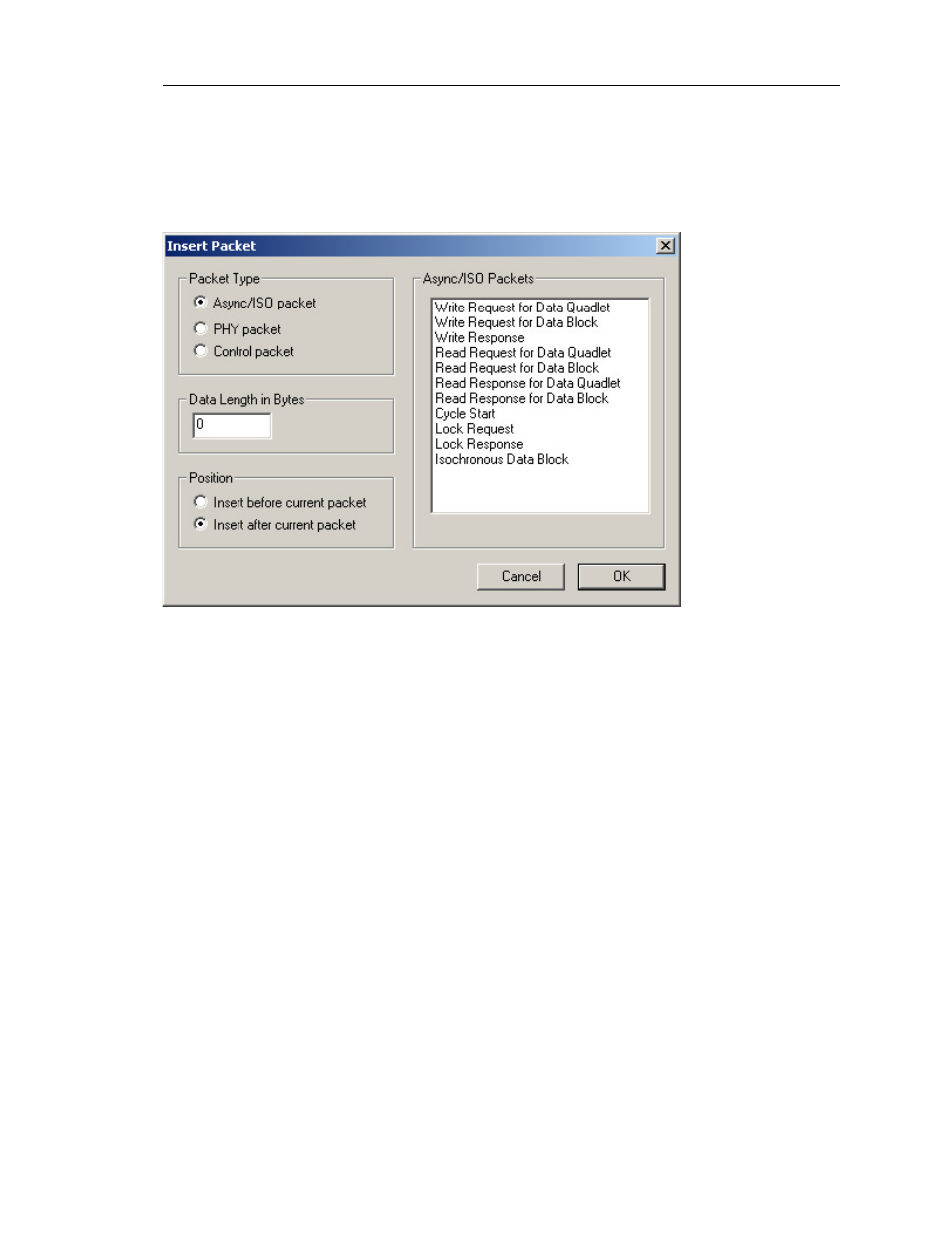

Figure 7-9: Insert Packet dialog
