120
CATC F IRE I NSPECTOR 2.01 C HAPTER 9
User’s Manual Reports
Use the following toolbar items to configure data settings:
Select Range
Use the Select Range dialog to specify a range of packets to represent in the graph.
To select a range of packets:
Step 1
Click the Select Range icon on the Bus Utilization toolbar.
The Select Range dialog will open.
Step 2
Enter a starting packet, transaction, or marker on the “From” line, and an
ending packet, transaction, or marker on the “To” line of the dialog. Clicking
the Reset Range to Whole Trace button sets the From and To entries to
include all of the packets in the Trace.
If there are no markers set in the Trace file, the drop-down list of markers will
not be available.
Step 3 Click OK to apply the settings.
Graphs Menu
Use the graphs menu to create customized graphs and to show or hide graphs.
Button Action
Opens the Select Range dialog.
Matches the time axis position and zoom level of all open graphs to the
active graph.
Opens the Graphs menu.

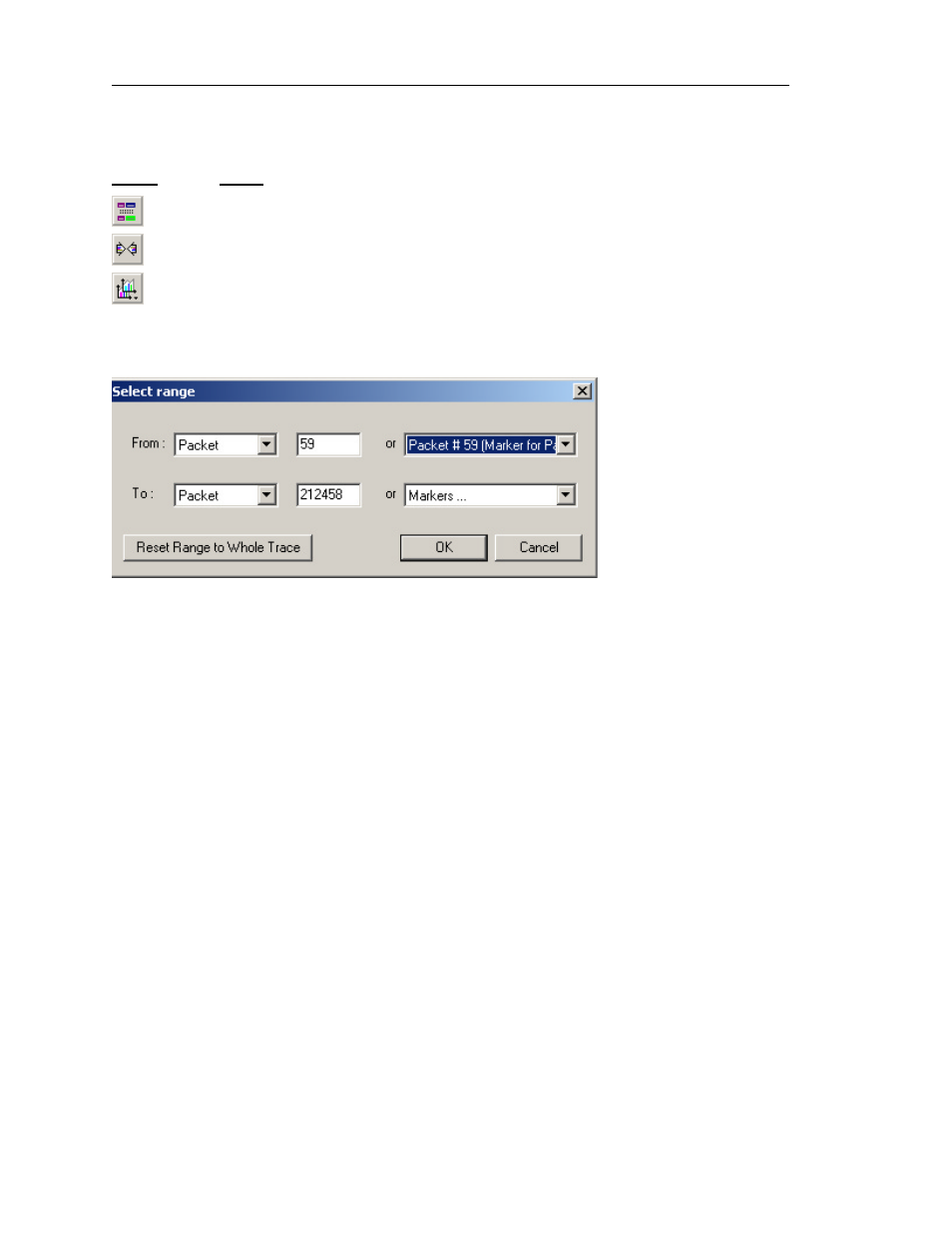

Figure 9-7: Select Range dialog
