45
CATC F IRE I NSPECTOR 2.01 C HAPTER 5
User’s ManualCATC Trace Fil es
Custom Tab
The Custom tab (Figure 5-4) of the Color tool and the Colors dialog contains various
controls for creating custom colors.
• Colors box — use the mouse pointer to select a color from the spectrum in the Colors
box.
• Slider — use the slider to the right of the color box to adjust the current color's red,
green, blue, and luminance values.
• Hue, Saturation, and Luminance values — adjust these values by typing in new values or
by using the controls.
• Red, Green and Blue values — adjust these values by typing in new values or by using
the controls.
Set Field Formats
Use the Color/Format/Hiding tab in the Display Options dialog to customize the
presentation of numeric values in a Trace file.
Each field’s current number formatting is shown in the Format column, and, when the field
name is selected, in the Format section above the Color tool. Number formatting options are
available only for certain fields.
Possible formats are: hexadecimal, decimal, binary, and ASCII. Not all formats are available
for all fields.
To change a field's number format:
Step 1 Open the Display Options dialog.
Step 2
Select the Color/Format/Hiding tab (shown in Figure 5-3).
Step 3 Click on the name of a field for which you want to set the number format.
Step 4
Use one of the following methods to change the field’s number format:

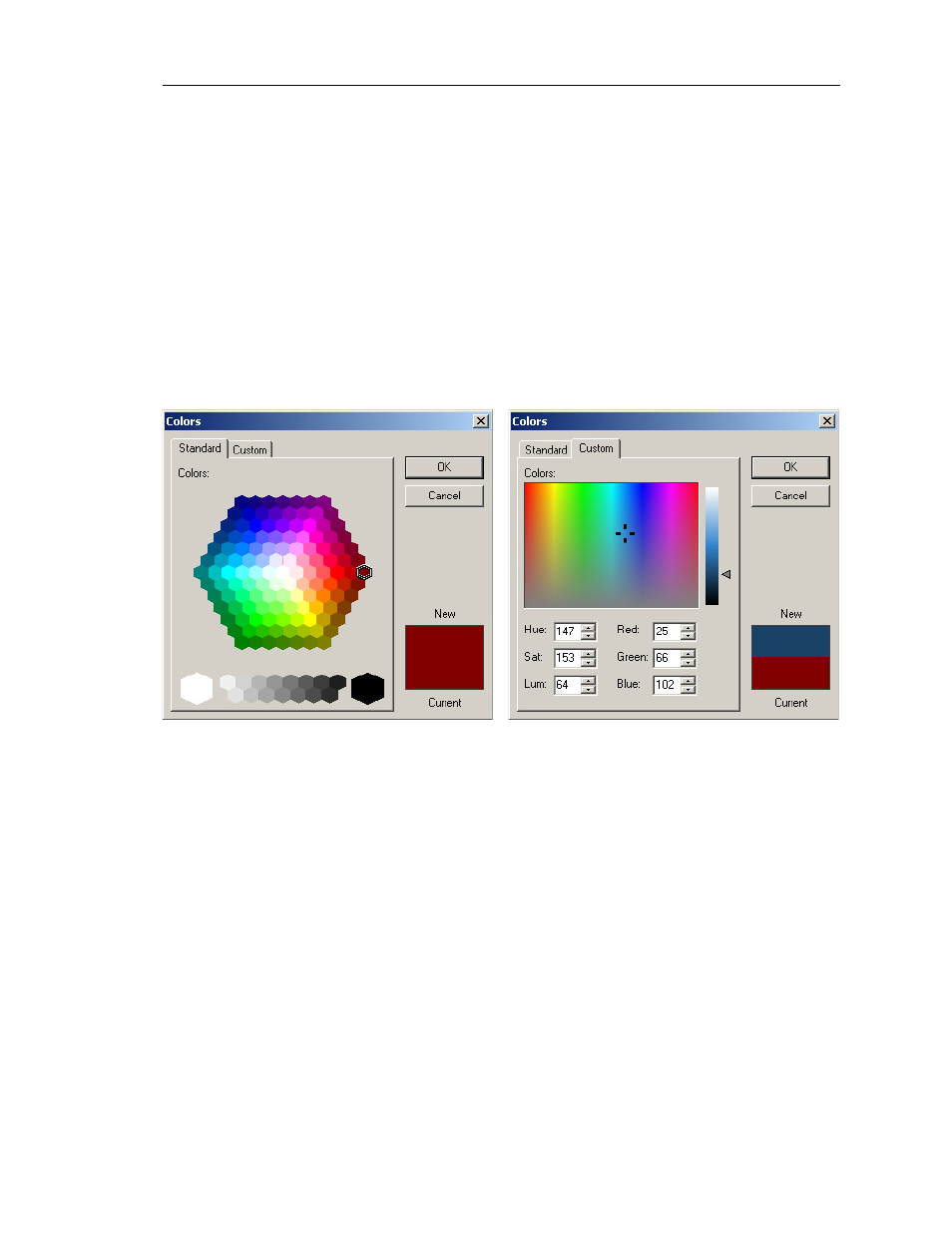

Figure 5-4: Standard and Custom tabs, as they appear in the Colors dialog
