107
CATC F IRE I NSPECTOR 2.01 C HAPTER 8
User’s ManualBus Topol ogy Trees
Note: Depending upon which PHY Self-ID cells are used to reconstruct the tree, different results may be
obtained.
8.5 Saving Tree Files
Bus topology information can be saved as a Tree (.tsf) file for later viewing.
To save the data as a Tree file, there must be a bus topology tree displayed in the active
window.
To save bus topology information:
Step 1
Select File > Save As... from the menu bar.
The Save As dialog will appear.
Step 2
Enter a filename and location for the data.
Step 3
Press Save.
8.6 Reading and Viewing Configuration ROM
FireInspector can read and display configuration ROM data when devices are connected to
the analyzer box. FireInspector can also reconstruct configuration ROM data from a Trace
file. The data is displayed as a tree hierarchy in the Configuration ROM dialog.
Alternatively, the data can be viewed as text. Configuration ROM data can be saved as a
configuration ROM (.rom) file.

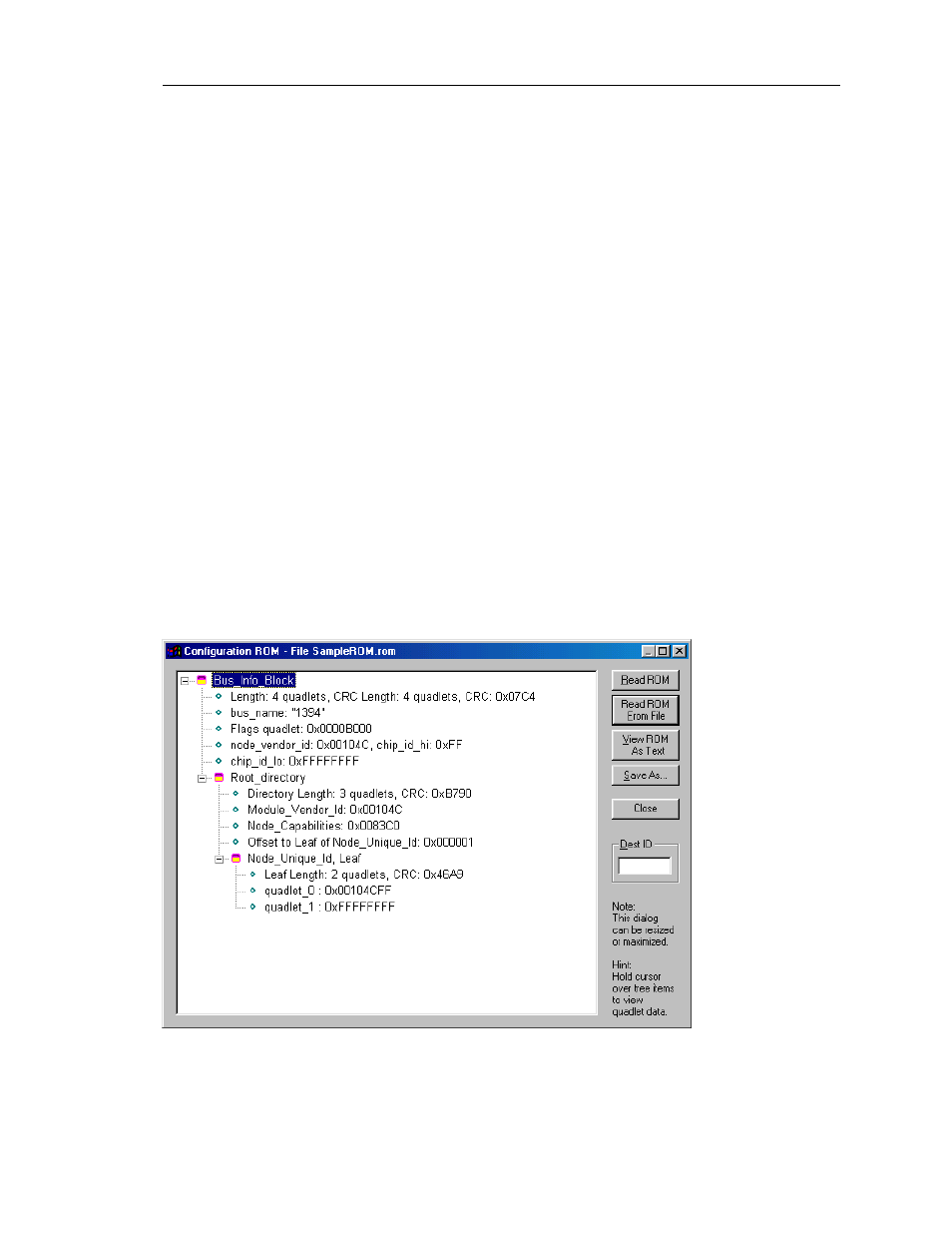

Figure 8-2: Configuration ROM dialog
