CATC F IRE I NSPECTOR 2.01 C HAPTER 9
User’s Manual Reports
• Source ID, Destination ID — Transaction type (Read or Write), direction, transaction
total, quadlet and block transaction totals, total bytes sent, and actual bytes transferred.
• Source ID, Destination ID — Transaction type (Lock), transaction total, extended trans-
action codes.
To access the Transaction Summary report:
Step 1
Select Report > Transaction Summary from the menu bar or click the
Transaction Summary
icon on the toolbar.
The Specify Packets in Transaction Summary dialog will open.
Step 2 Enter a starting packet or marker on the “From” line, and an ending packet
or marker on the “To” line of the dialog. Clicking the Reset Range to Whole
Trace button sets the From and To entries to include all of the packets in the
Trace.
Note: If there are no markers set in the Trace file, the drop-down list of markers will
not be available.
Step 3
Click OK.
FireInspector compiles and then displays the Transaction Summary report.
To save a Transaction Summary report:
Step 1
Click the Save As... button in the Transaction Summary report.
The Save As dialog will open.
Step 2
Enter a file name.
Step 3
Click Save.

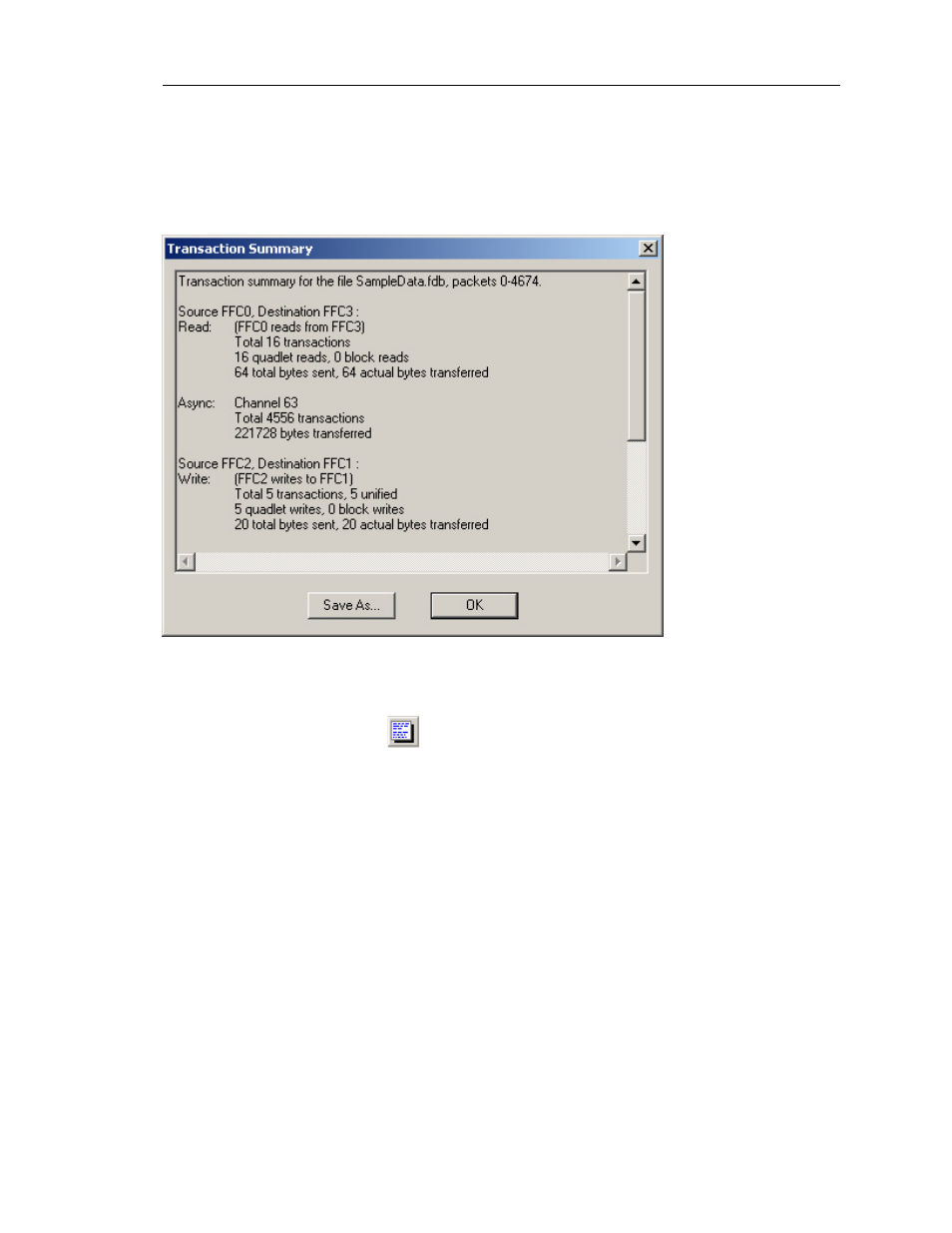

Figure 9-4: Transaction Summary report
