99

CATC F

IRE

I

NSPECTOR

2.01

C

HAPTER

7

User’s ManualTraffic Generation

Start/Stop ISO Transmission Dialog

To edit a Start or Stop Isochronous Transmission control packet:

Step 1

Select or deselect the transmission channels for which you wish to start or
stop transmission.

Step 2

Click OK.

Start/Stop Errors Dialog

To edit a Start or Stop Errors control packet:

Step 1

Select or deselect the errors that you wish to start or stop.

Step 2

Click OK.

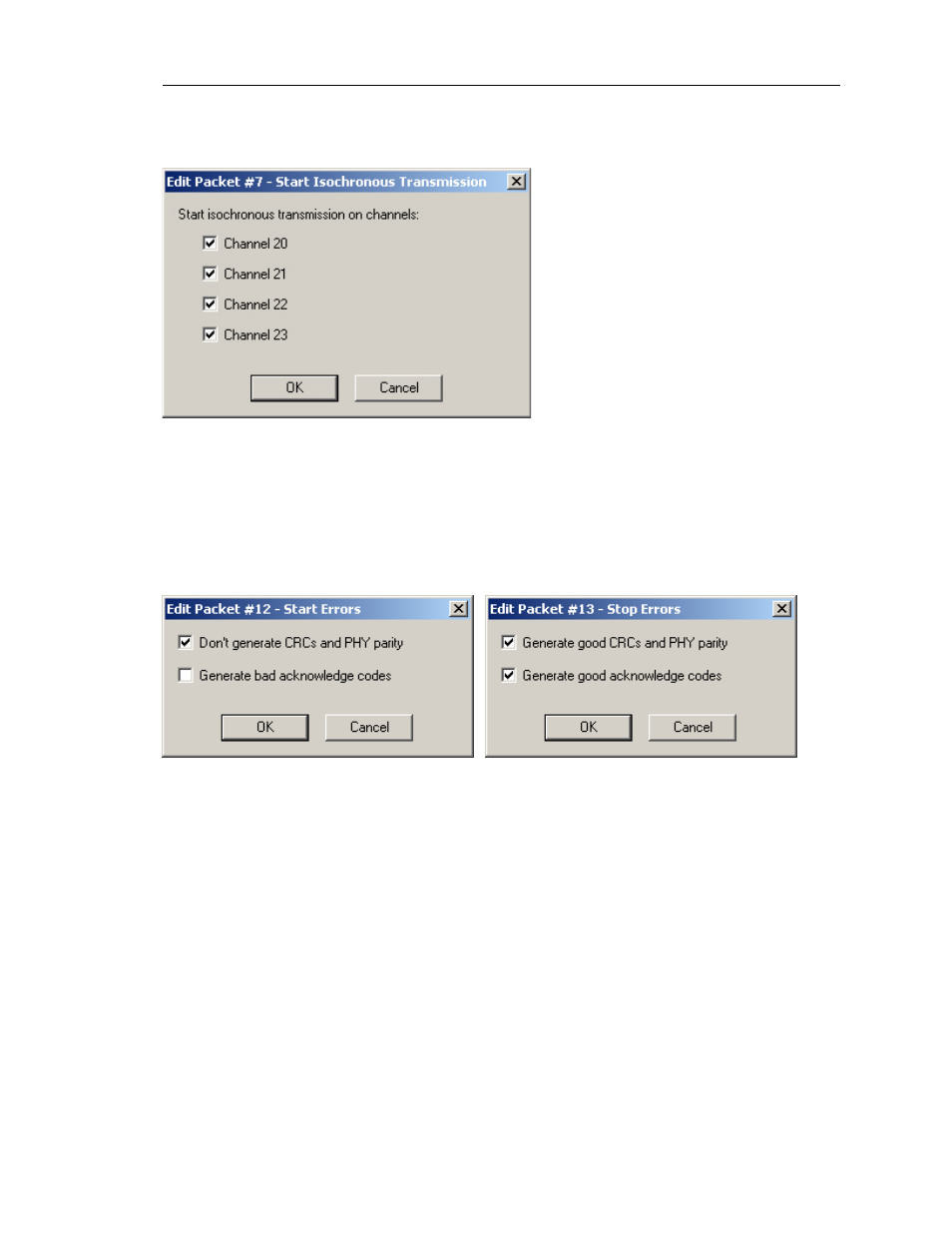

Figure 7-5: Start/Stop ISO Transmission dialog

Figure 7-6: Start and Stop Errors dialogs
