Phoenix System User Manual 89
Creating a New Test Pattern Teledyne LeCroy
Adding Frames to Patterns
Frames can be added to the pattern by clicking the Insert Frame icon. When this
icon is clicked, a library of available frames that are pre‐defined for the selected protocol
displays.

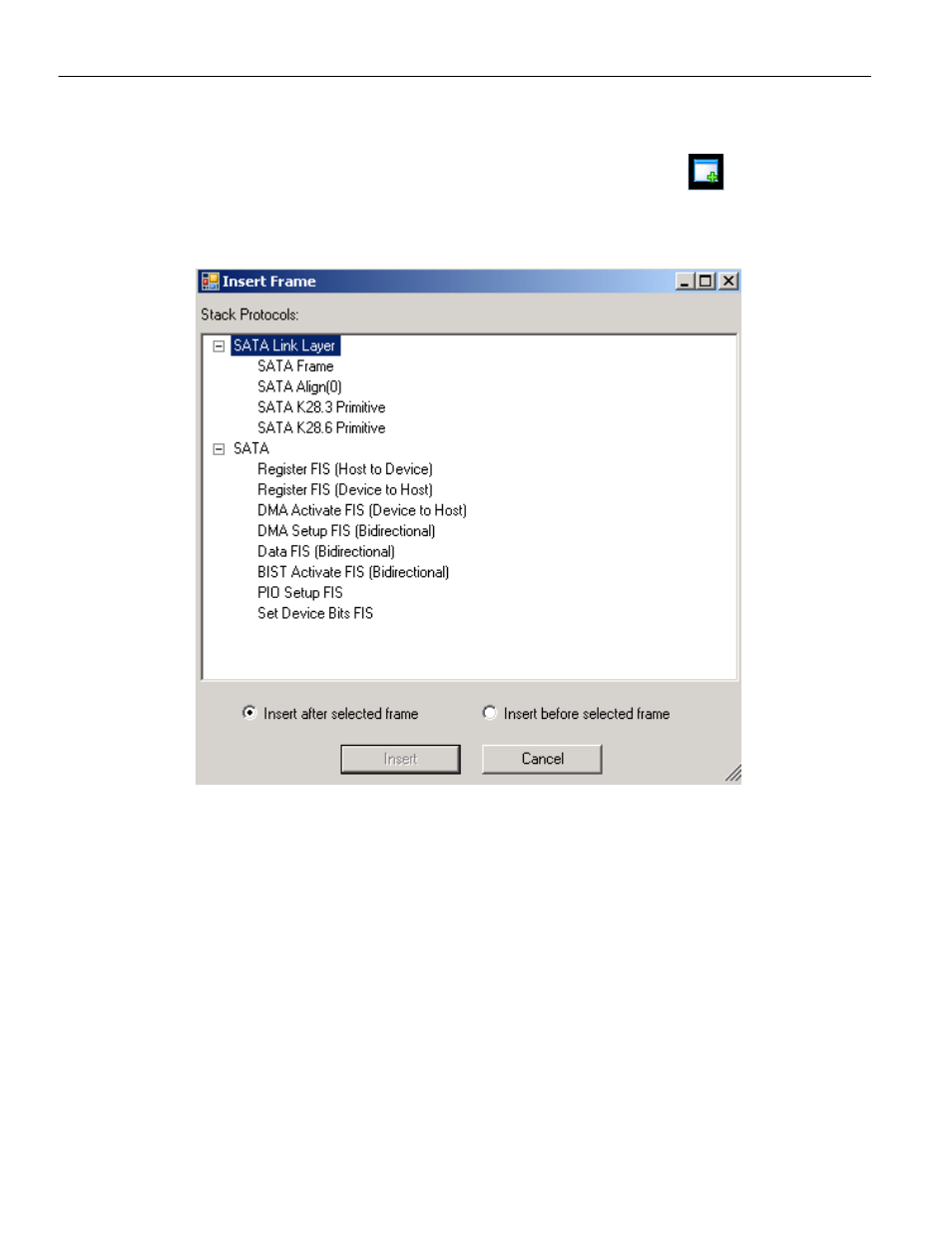

Figure 9.9: Insert Frame Dialog
By clicking on any frame and then clicking Insert Frame, the frame is entered into the
pattern (see
Figure 9.10 on page 90 ).
