76
Teledyne LeCroy Test Script Data Block
These actions display a main application window which looks as follows, providing more
visible space for test script development.

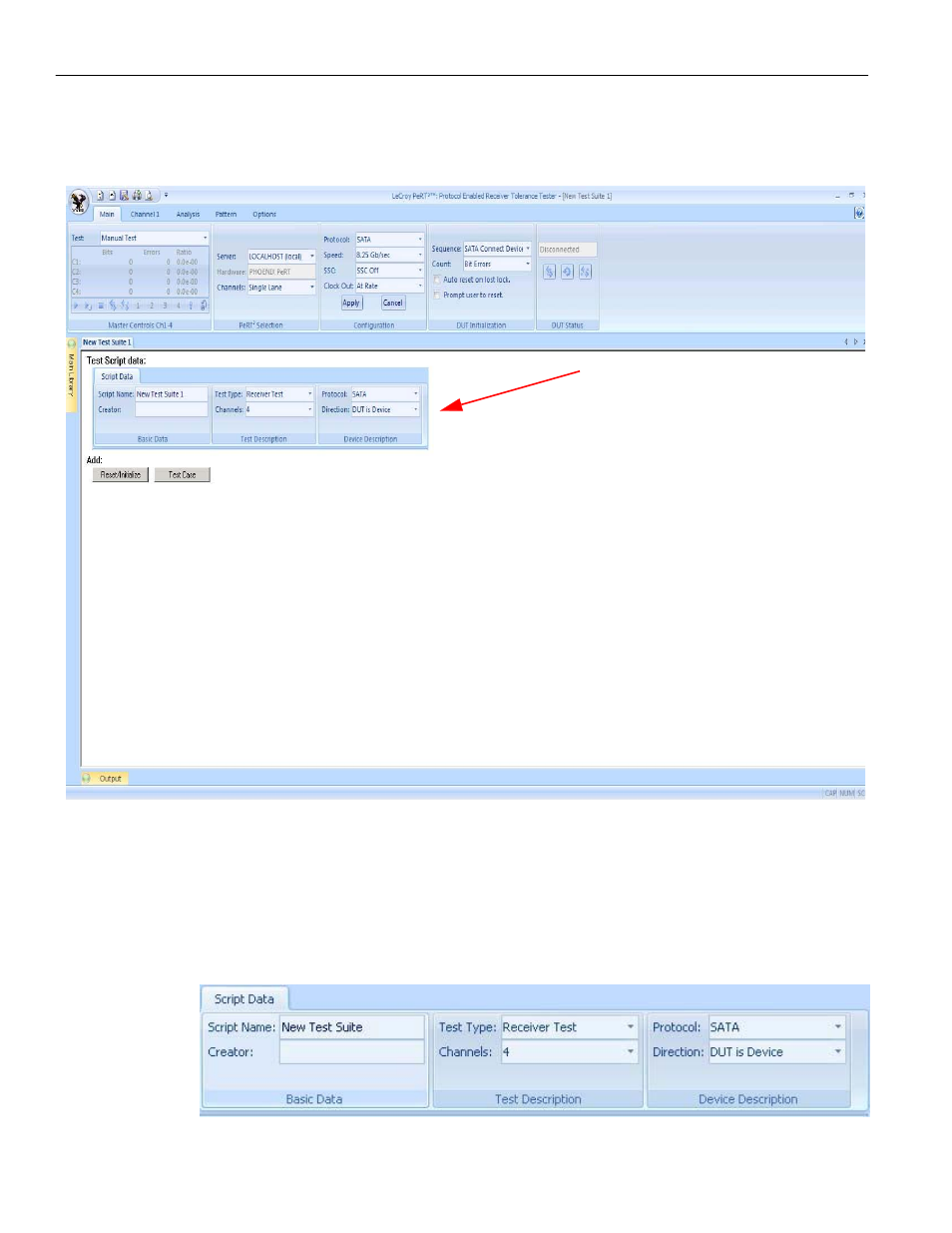

Figure 8.4: Main Application Window Test Script Development Space
Test Script Data Block
The first block that appears in the new test script window is the header block, named Test
Script Data. This block contains the Script Data tab, which contains three panels, Basic
Data, Test Description and Device Description.
Figure 8.5: Test Script Data
