Teledyne LeCroy Analysis Graph Types
100
100
Single Parameter
This allows a graph of a single jitter or signal parameter variable (selected from a test
matrix) vs. BER. Selecting this option allows the user to specify the parameter to be used
(the second field in the panel), and populates the Data Set boxes to show other
parameters tested, allowing the user to specify fixed values of other parameters to select
the specific data set of interest. The BER threshold displayed can be changed by typing a
new value into the Threshold field. Additional channels can be displayed by clicking the
channel number(s) in the Data Set panel

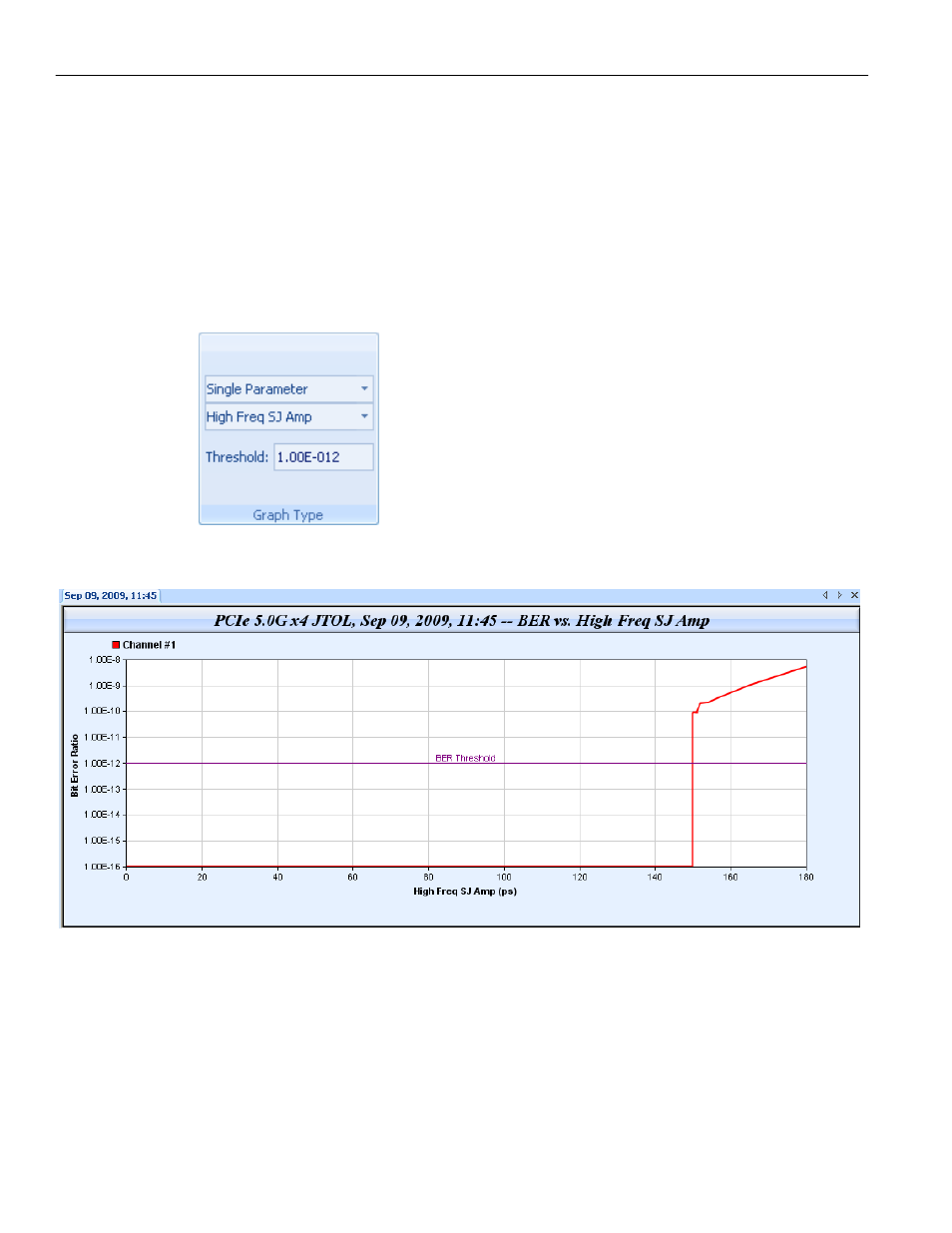

Figure 10.15: Graph Type Panel
.
Figure 10.16: Signal Parameters
