The System Control Ribbon Teledyne LeCroy
The System Control Ribbon
The System Control Ribbon is fixed in location across the top of the PeRT
3
main
application window, but the ribbon will change in appearance based on the currently
selected width of the main application window. The system attempts to provide as much
information on tabs (and panels and field names within panels) as space permits.
The normal appearance (when the Main tab is selected) of the System Control Ribbon is
shown below.

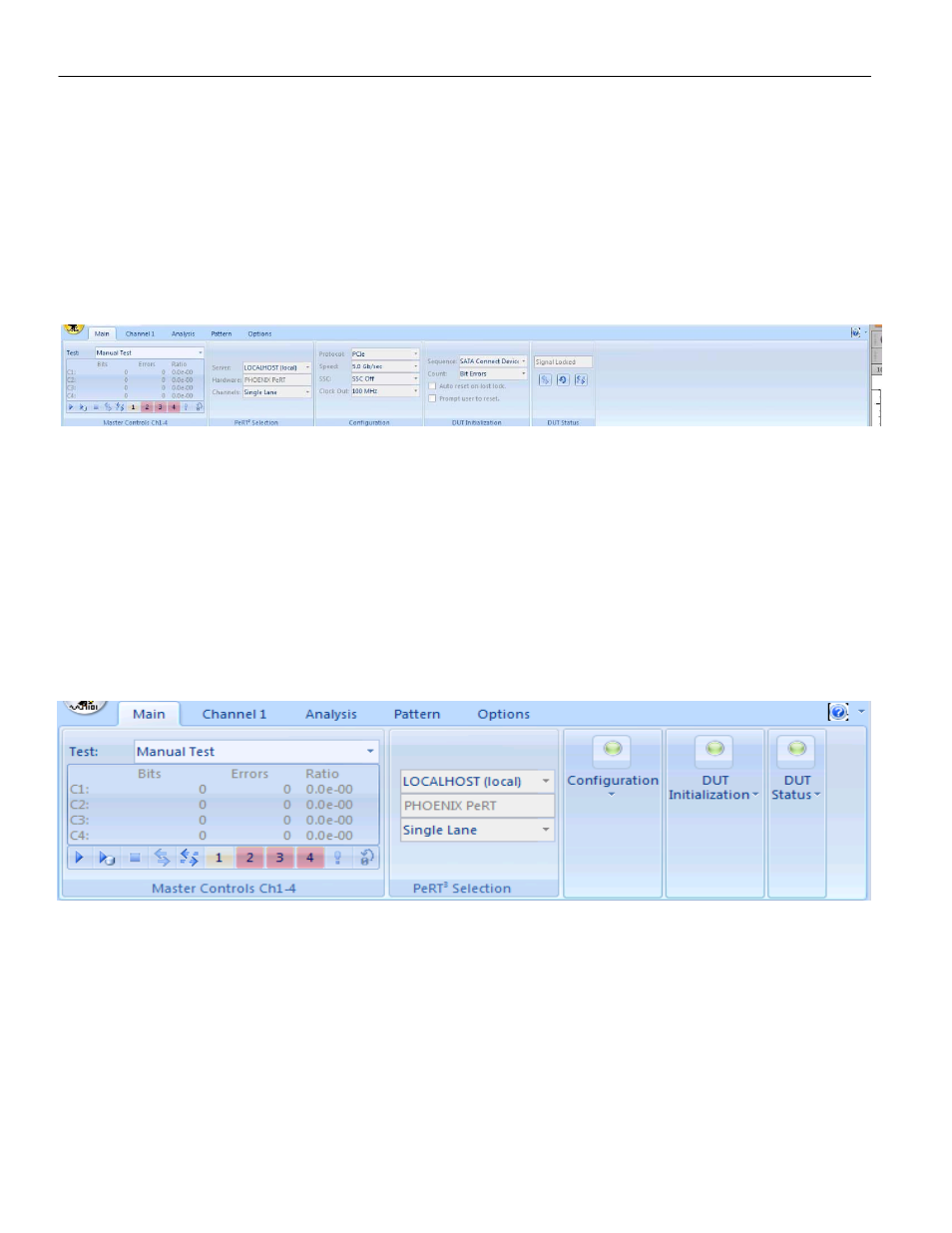

Figure 11.6: System Control Ribbon
There are multiple panels within the System Control Ribbon. When the Main tab is
selected, these panels include Master Controls, PeRT
3
Selection, Configuration, DUT
Initialization and DUT Status. The functions of these panels (and of the other tabs) are
described in
“System Control Ribbon ‐ Main Tab” on page 47 .
If the PeRT
3
main application window is not wide enough to display all five panels, the
panels will adopt a condensed appearance, starting with the panel on the far right, in
order to fit the available space. The System Control Ribbon will then display as shown
below.
Figure 11.7: System Control Ribbon Condensed
