56
Teledyne LeCroy System Control Ribbon ‐‐ Channel Tabs

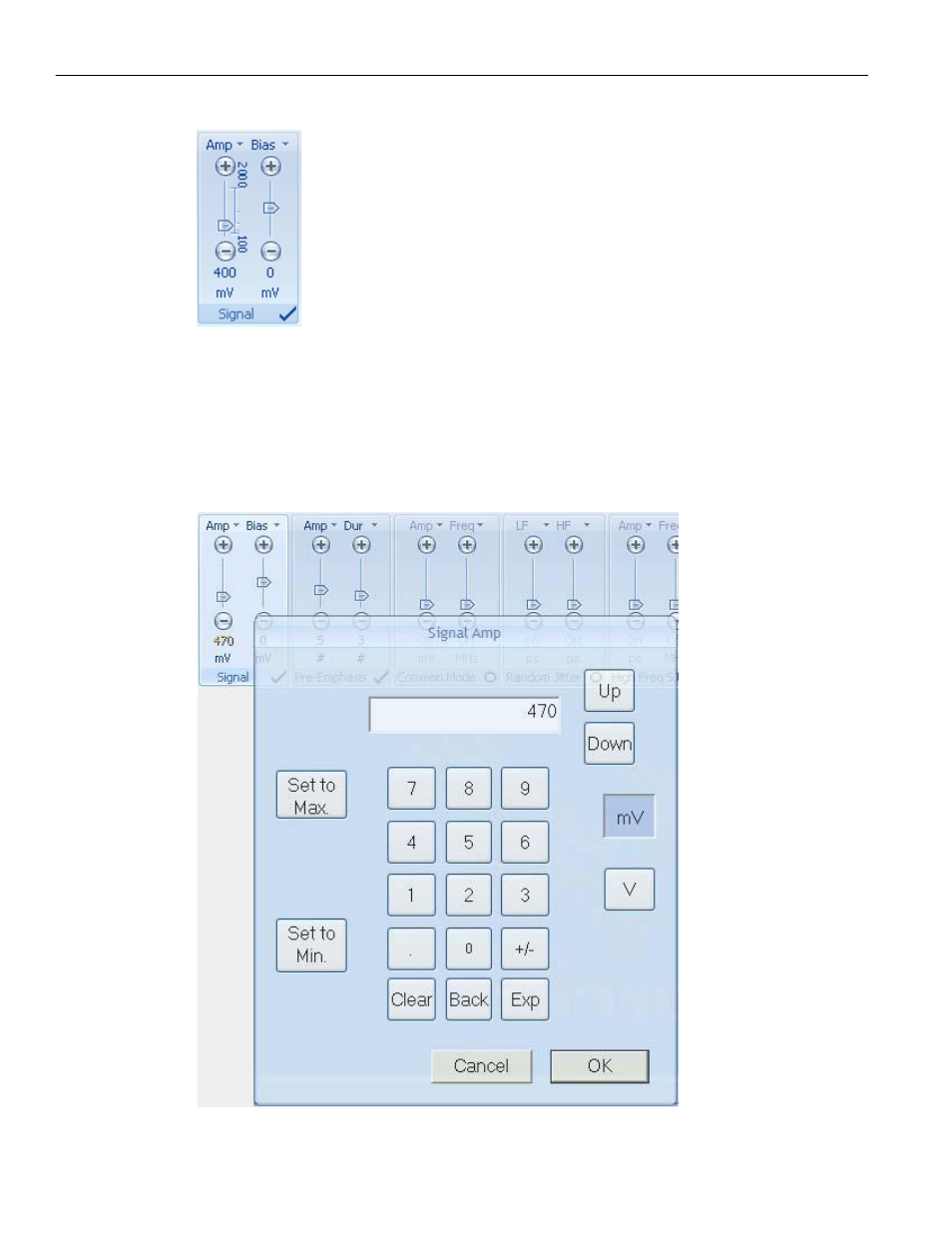

Figure 6.14: Custom Values
An aid to entering and changing values for signal impairment controls can be found by
turning on the On‐screen Keypad. The On‐screen Keypad can be turned on from the View
panel of the Options tab. When turned on, if the numeric value below the slider bar in
any control is clicked, the value will be highlighted and the On‐screen Keypad will appear
as shown below.
Figure 6.15: On-screen Keypad
