Teledyne LeCroy PeRT3 Phoenix System - Manual (Page 45)

Teledyne LeCroy PeRT
3
Phoenix System User Manual 43
File Menu Teledyne LeCroy
New
Hovering the cursor over the New icon display a list of commands which include the
ability to create a New Test Script or to create a New Test Pattern. Clicking on these icons
will create the appropriate new document in new window in the Test Development
section.

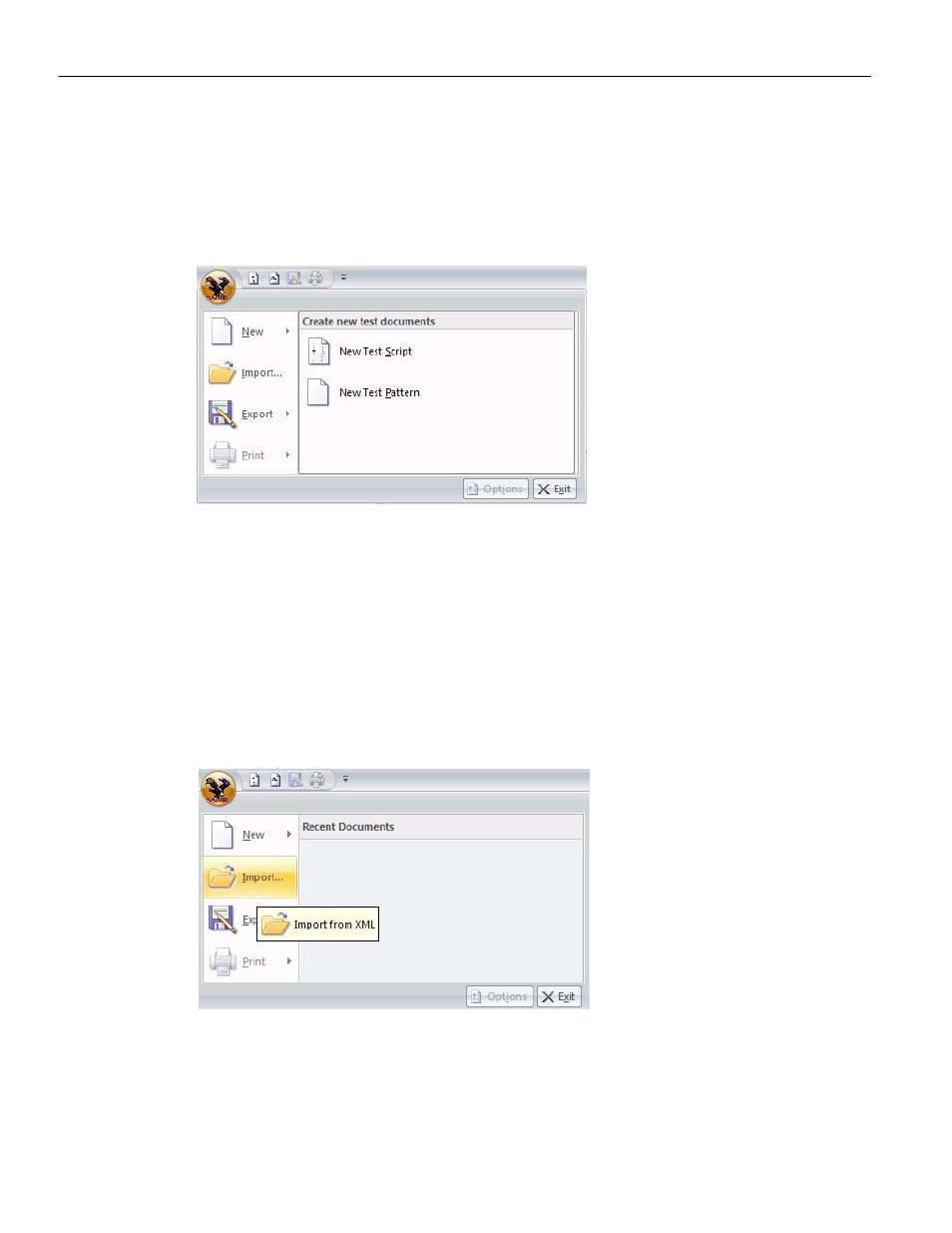

Figure 5.4: Selecting New
Import...
Hovering the cursor over the Import icon will display a tool tip as shown on the right.
Clicking the icon will bring up a new window which allows the user to select the file to be
imported (see below).
All files to be imported must be XML files, and can include scripts, patterns, test reports
that have been exported from other PeRT
3
systems. Imported files can also include
license updates, updated binaries, software updates, etc.
Figure 5.5: Selecting Import
