Phoenix System User Manual 23
Introduction Teledyne LeCroy
Connecting the Device Under Test
The PeRT
3
Phoenix System is intended for testing of serial data communication links and
components. Depending on the specific device under test, the connectors will vary, and
the means of connecting to the SMA connectors on the PeRT
3
Phoenix front panel will
also vary.
The PeRT
3
Phoenix front panel provides either K-type or SMA-type connectors for each
of the conductors in either differential pair, labeled as (+) and (‐), or single-ended.
There are six pairs of SMA connectors:
 DATA RX
 TRIGGER OUT
 CLOCK OUT
There is one pair of K-Type connector:

DATA TX
There are two single-ended SMA connectors:
 CLOCK IN

JITTER IN

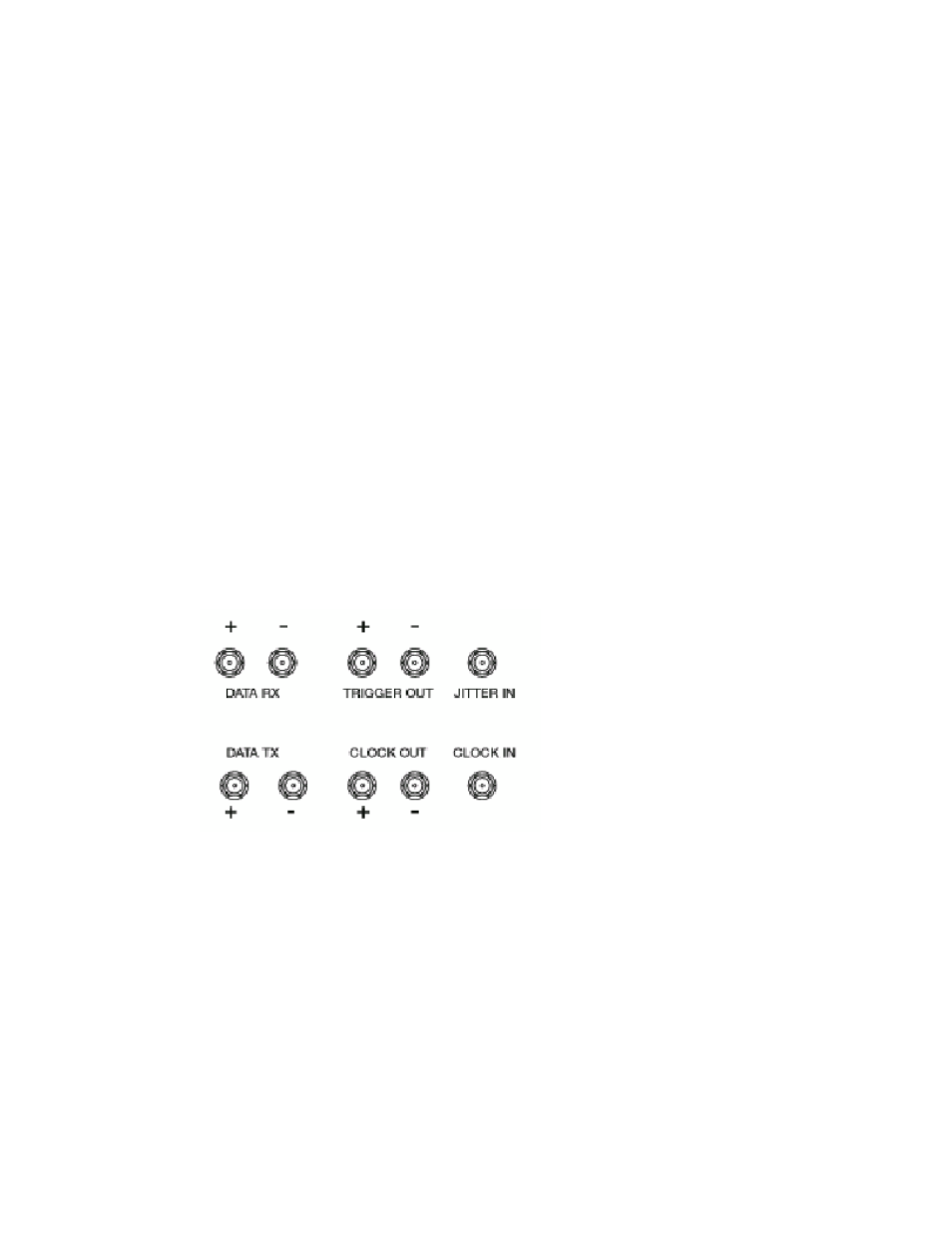

Figure 3.3: Front Panel of the PeRT
3
Phoenix System
The following two LEDs are on the front panel:
 Status
 Lock
A USB port for connecting to the host machine is also provided on the front panel.
The PeRT
3
Phoenix can be connected to the DUT using a test board or custom interface.
For assistance in the requirements for these connections, please contact Teledyne LeCroy
Support.
