Phoenix System User Manual 29
Introduction Teledyne LeCroy

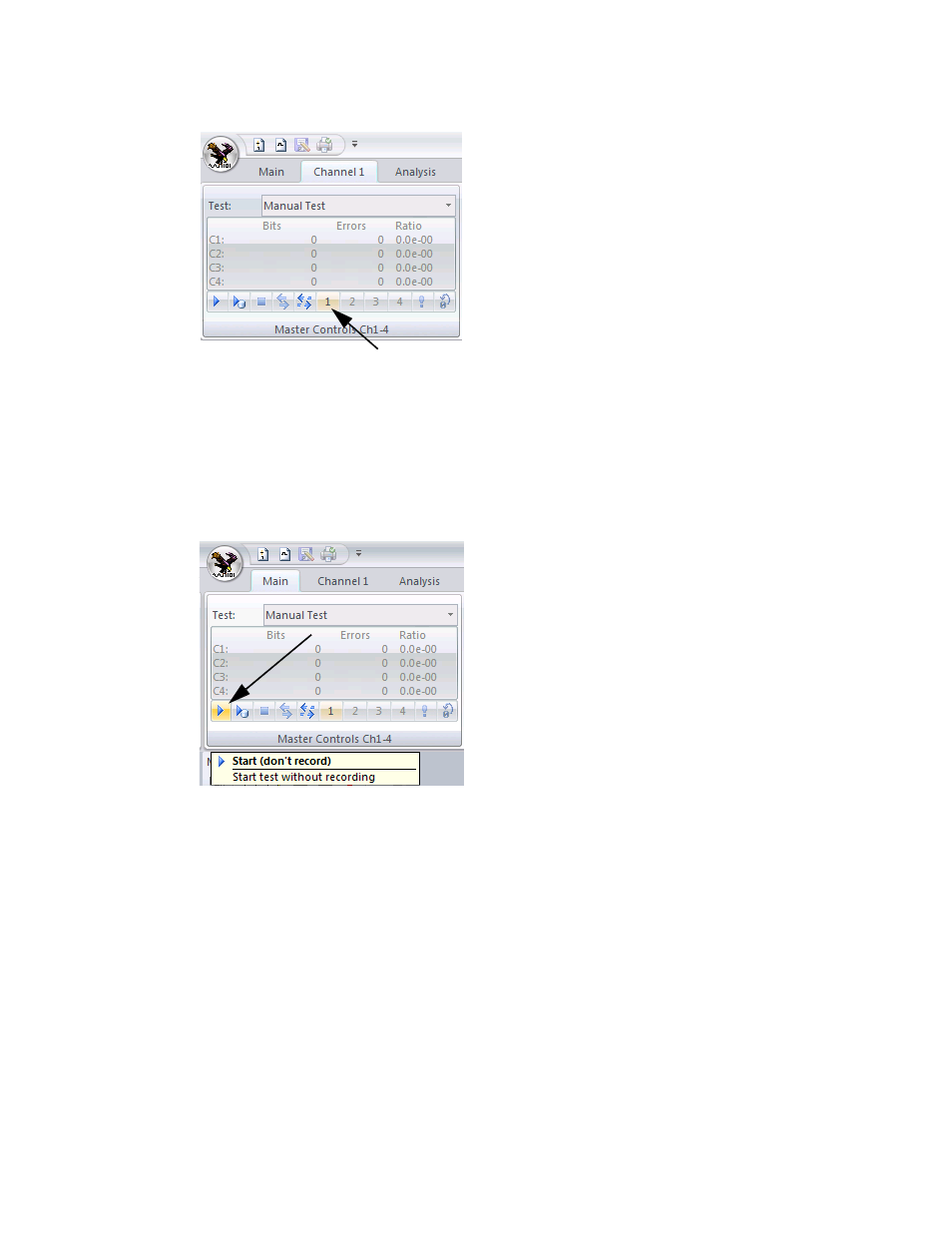

8. Click the Main tab and click the Start button as shown below.
Start (don't record) ‐ This function is used mainly for debug and verify the BER status
of the DUT, no data will be recorded for this run.
Start (record) ‐ This function is the same as Start (don't record) except the results
will be recorded with a time stamp and a report will automatically be saved in
results library.
The default Manual test starts and the Channel 1 button turns green as shown
below.
Reset counter ‐ this function will reset the BER counter without interrupting the
test. This is useful for debugging if the DUT is being modified in real time and the
user likes to update the BER results.
