Modifying a Test
On the left side of the PeRT
3
main application window is a window called Main Library.

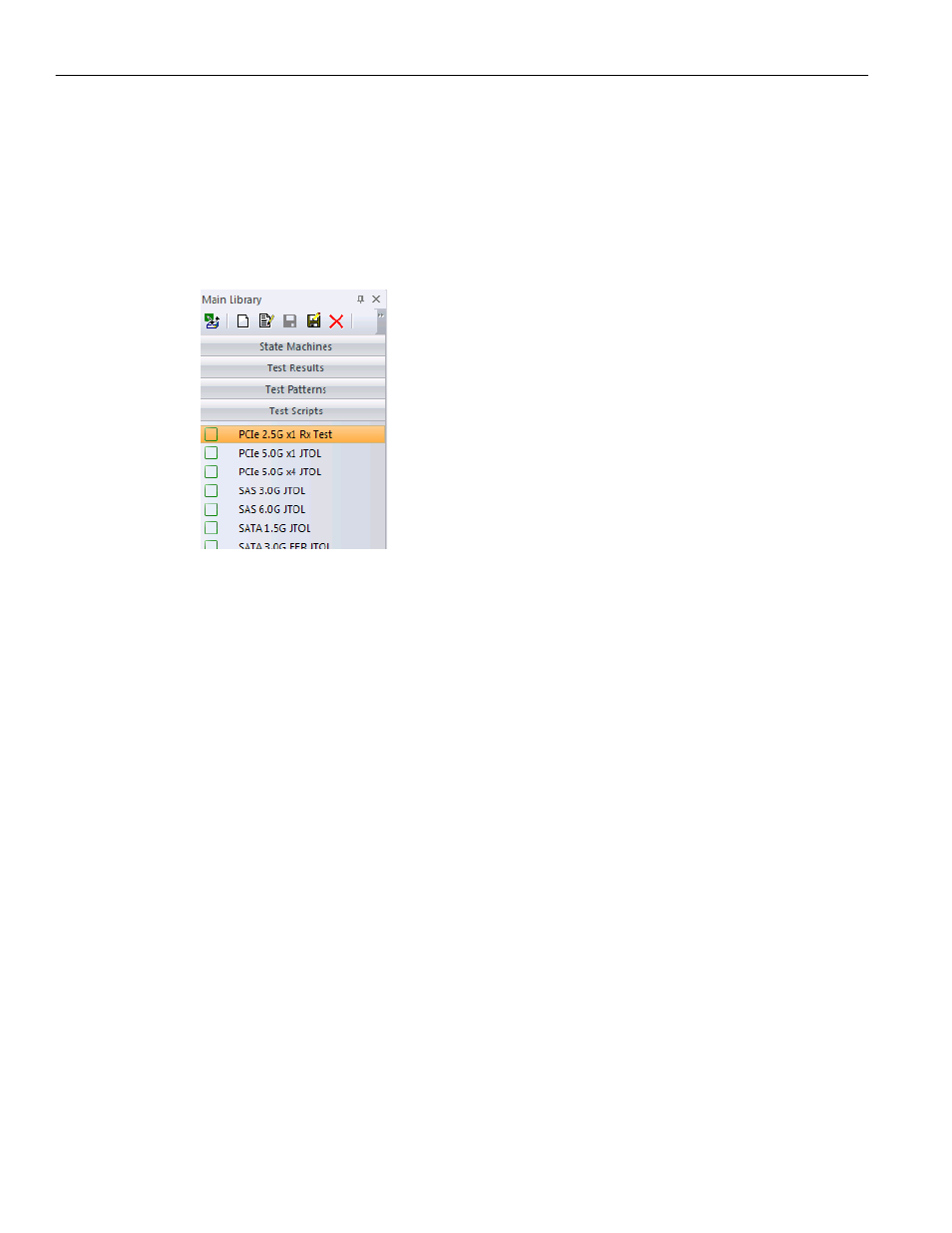

This displays the list of test scripts, test patterns and results from previous tests that are
stored on the PeRT
3
server. Click on the Test Scripts horizontal tab to show a list of
available test scripts.
The scroll buttons can be used to scroll through a list of available test scripts. These
scripts can include tests supplied with the PeRT
3
Phoenix system, tests developed by the
user, or tests originally supplied with the system and later modified by the user.
Testing a DUT
The following example describes testing a USB 3.0 DUT. You have to have a license for the
protocol to display. Please contact Teledyne LeCroy at Phone Support: 1‐800‐553‐2769.
Perform the following steps:
1. Select USB 3.0 from the Protocol drop‐down menu in the Configurations panel. See
the following figure.
Other configuration fields are automatically populated when a protocol is selected.
2. Click Apply.
