Teledyne LeCroy PeRT3 Phoenix System - Manual (Page 104)

Teledyne LeCroy Analysis Graph Types
102
102

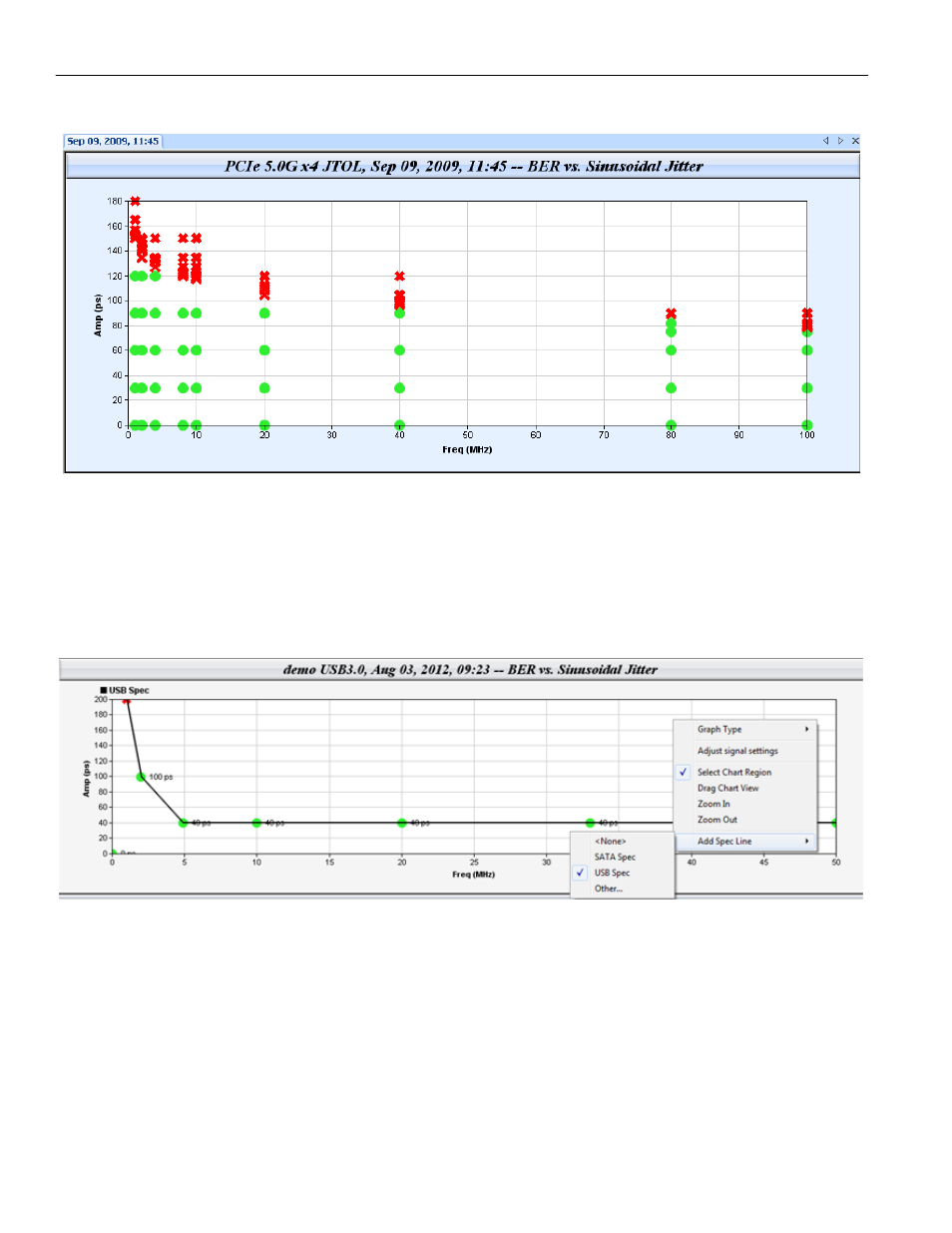

Figure 10.18: Scatter Chart
Adding a Spec Line in a Chart
When the scatter chart/two parameter chart is open, right‐click on the chart and select
add spec line. The chart displays the specification required pass/fail line in reference to
different serial data standards and offers a clear view of the test spec margins during
jitter tolerance testing. See the following figure.
Figure 10.19: Scatter Chart with Spec Line
